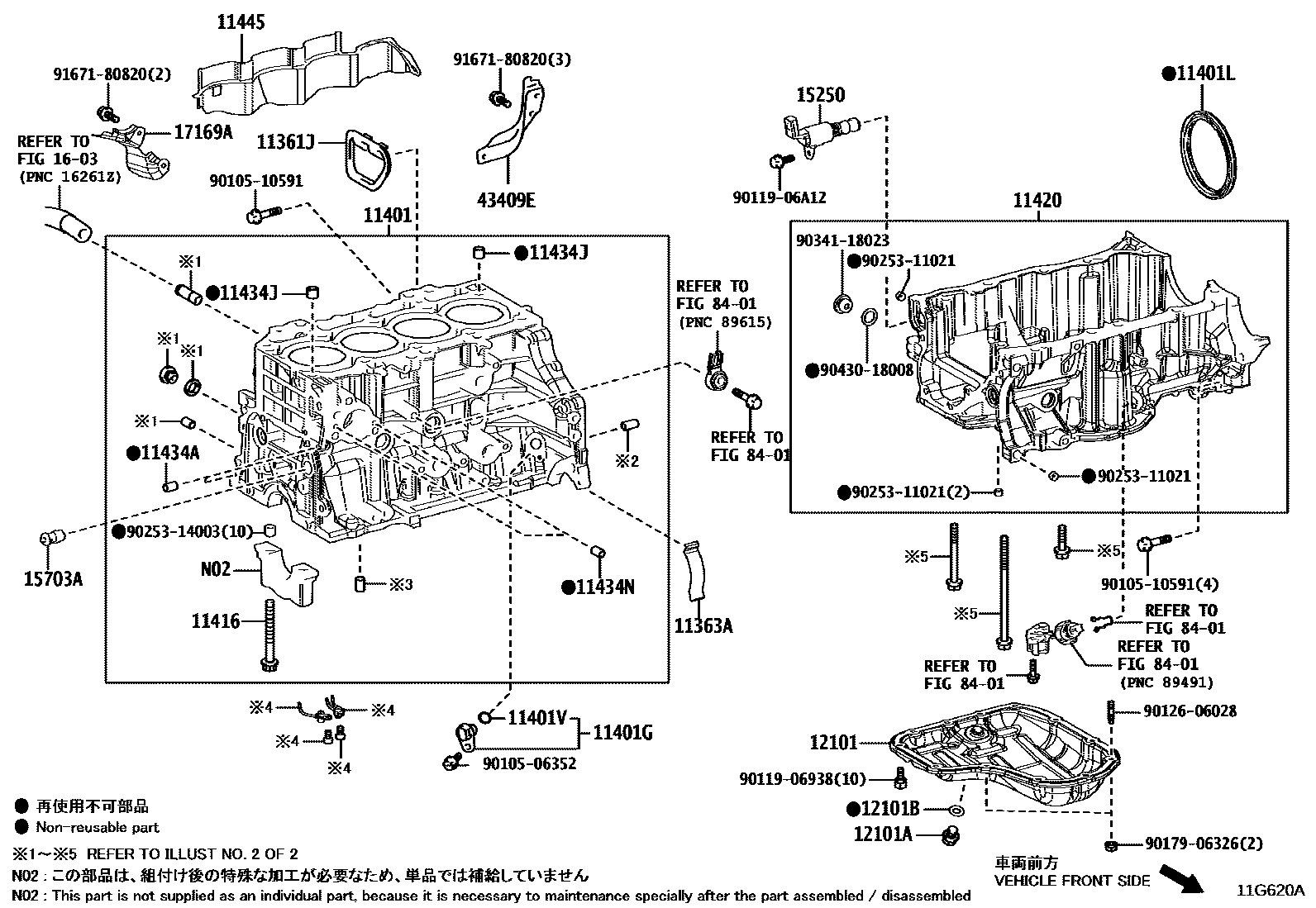

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
11401BLOCK SUB-ASSY, CYLINDER
DEST.PACKAGE (EXC/ERP.)-MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO 5
DEST.PACKAGE (EXC/ERP.)-BURNEI SPEC&EXHAUST EMISSION CONTROL-EURO 5
DEST.PACKAGE (EXC/ERP.)-PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-EURO 5
DEST.PACKAGE (EXC/ERP.)-INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO 5
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 5
GUATEMALA SPEC&EXHAUST EMISSION CONTROL-EURO 5
MOROCCO SPEC
UKRAINE SPEC
PANAMA SPEC&EXHAUST EMISSION CONTROL-EURO 5
DEST.PACKAGE (EXC/ERP.)-DOMINICA SPEC&EXHAUST EMISSION CONTROL-EURO 5
DEST.PACKAGE (EXC/ERP.)-CHILE SPEC
11401GSENSOR, CRANK POSITION
EXHAUST EMISSION CONTROL-EURO 5
11401LSEAL, ENGINE REAR OIL
11401VO-RING, CRANK POSITION SENSOR
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11420CRANKCASE ASSY, STIFFENING
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
15250VALVE ASSY, OIL PRESSURE CONTROL
15703AVALVE SUB-ASSY, OIL NOZZLE
1603
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
43409EINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
8401
9010506352
main90105-06352
9010510591
main90105-10591
9011906938
main90119-06938
9011906A12
main90119-06A12
9012606028
main90126-06028
9017906326
main90179-06326
9025311021
main90253-11021
9025314003
main90253-14003
9034118023
main90341-18023
9043018008
main90430-18008
9167180820
main91671-80820
32 parts on this diagram · 4 diagrams in section
