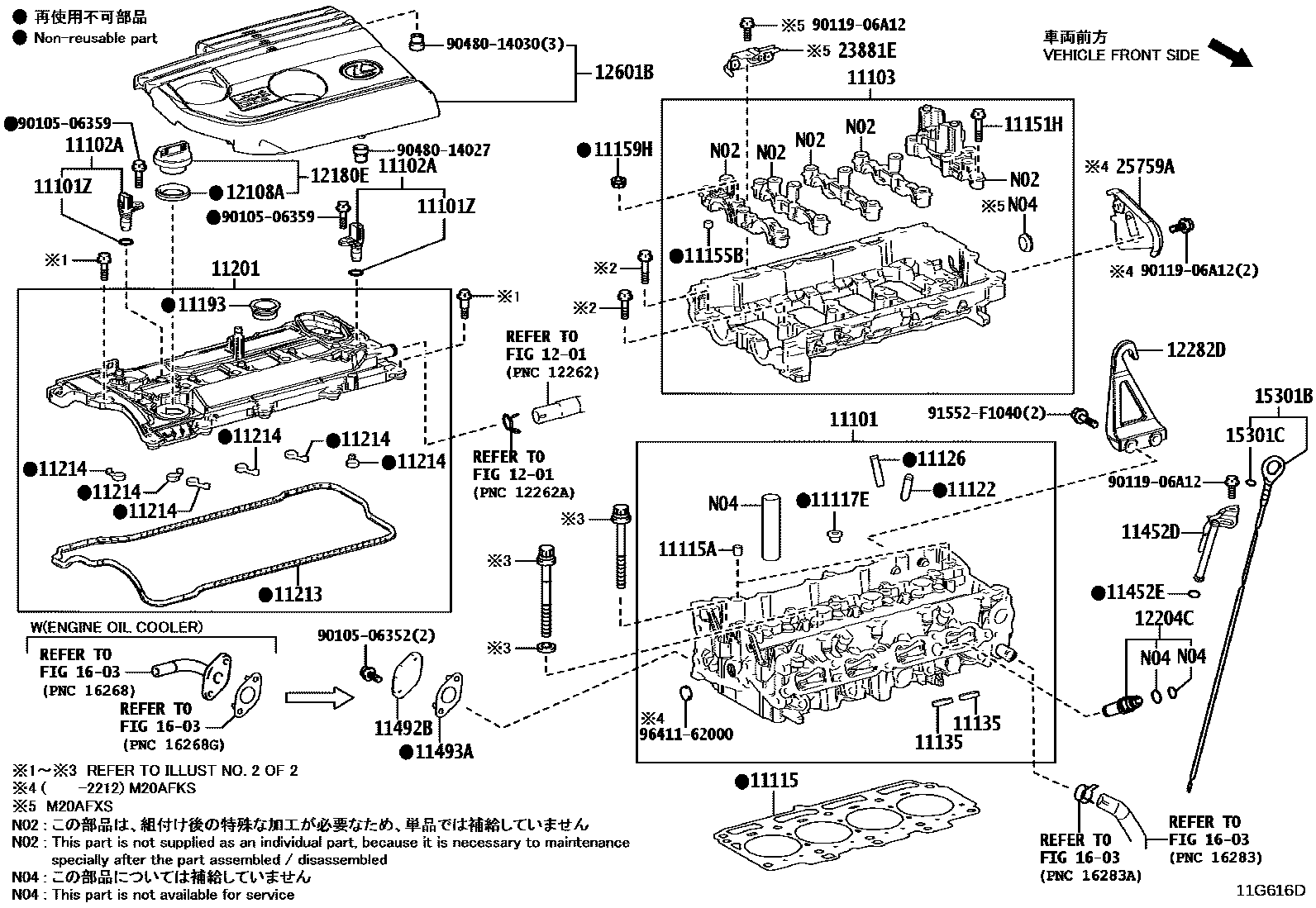

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-29635iM20AFKS..MZAA10¥96,900202207-202211

sub11101-29636¥97,000

main11101-29636iM20AFKS..MZAA10¥97,000202212

main11101-29645iM20AFXS..MZAH1#¥96,900202207-202211

sub11101-29646¥97,000

main11101-29646iM20AFXS..MZAH10,15¥97,000202212-202410

main11101-29647iM20AFXS..MZAH11,16..ARL,EUR,GCC,GEN¥88,100202410-202501

11101ZO RING, CAM POSITION SENSOR

main90301-11038iM20#..MZAA10,MZAH10,15¥0202207-202501

11102ASENSOR, CAMSHAFT POSITION

main90919-05096iM20#..MZAA10,MZAH10,15¥4,130202207-202501

11103HOUSING SUB-ASSY, CAMSHAFT

main11103-24011iM20AFKS..MZAA10¥23,900202207

main11103-24022iM20AFXS..MZAH10,15¥23,700202207-202501

11115GASKET, CYLINDER HEAD

main11115-24040iM20AFXS..MZAH11..CHI¥4,380202207-202501

11115APIN, RING

main90253-12002iM20#..MZAA10,MZAH10,15¥50202207-202501

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-14015iM20AFXS..MZAH11..CHI¥120202207-202501

11122BUSH, INTAKE VALVE GUIDE

main11122-31090iM20#..MZAA10,MZAH10,15¥550202207-202501

STD

main11123-31090iM20#..MZAA10,MZAH10,15¥550202207-202501

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-31041iM20AFXS..MZAH11,16..ARL,EUR,GCC,GEN¥610202207-202501

STD

sub11122-47010¥550

main11123-31041iM20#..MZAA10,MZAH1#¥620202207-202401

O/S 0.05

sub11123-47010¥550

main11123-47010iM20AFXS..MZAH11,16..ARL,EUR,GCC,GEN¥550202401-202501

O/S 0.05

11135SEAT, EXHAUST VALVE

main11135-24020iM20#..MZAA10,MZAH10,15¥490202207-202501

STD

11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)

main90119-07009iM20AFXS..MZAH11..CHI¥90202207-202501

11155BPIN, RING

main90253-13005iM20AFXS..MZAH11..CHI¥50202207-202501

11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE

main11159-31040iM20#..MZAA10,MZAH10,15¥340202207-202501

11193GASKET, SPARK PLUG TUBE

main11193-37030iM20#..MZAA10,MZAH10,15¥230202207-202501

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-24032iM20AFKS..MZAA10¥12,600202207

main11201-24040iM20AFXS..MZAH10,15¥12,600202207-202501

11213GASKET, CYLINDER HEAD COVER

main11213-24020iM20#..MZAA10,MZAH10,15¥700202207-202501

11214GASKET, CYLINDER HEAD COVER, NO.2

main11213-31080iM20AFKS..MZAA10¥370202207-202501

11452DGUIDE, OIL LEVEL GAGE

main11452-24020iM20#..MZAA10,MZAH10,15¥700202207-202501

11452ERING, O(FOR OIL LEVEL GAGE GUIDE)

main96741-19010iM20#..MZAA10,MZAH10,15¥250202207-202501

11492BPLATE, WATER SEAL

main11492-24010iM20AFKS..MZAA10..GEN;M20AFXS..MZAH10,15..ARL,EUR,GEN¥500202207-202301

main90341-20012iM20AFKS..MZAA10..GEN;M20AFXS..MZAH10,15..ARL,EUR,GEN¥200202301-202501

11493AGASKET, WATER SEAL PLATE

main16258-24010iM20AFKS..MZAA10..GEN;M20AFXS..MZAH10,15..ARL,EUR,GEN¥270202207-202301

1201

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001iM20#..MZAA10,MZAH10,15¥120202207-202501

12180ECAP ASSY, OIL FILLER

main12180-38010iM20#..MZAA10,MZAH10,15¥640202207-202501

12204CVALVE SUB-ASSY, VENTILATION

main12204-25010iM20#..MZAA10,MZAH10,15¥800202207-202501

12282DHANGER, ENGINE, NO.2

main12282-25010iM20#..MZAA10,MZAH10,15¥4,190202207-202501

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-24021iM20#..MZAA10,MZAH10,15¥14,100202207

main12601-24080iM20AFXS..MZAH11..CHI¥12,500202401-202501

15301BGAGE SUB-ASSY, OIL LEVEL

main15301-24020iM20AFKS..MZAA10¥750202207

main15301-24030iM20AFXS..MZAH10,15¥750202207-202501

15301CRING, O(FOR OIL LEVEL GAGE)

main96741-19005iM20#..MZAA10,MZAH10,15¥140202207-202501

1603

23881EBRACKET, FUEL HOSE

main23881-24020iM20AFXS..MZAH10,15¥470202207

25759ABRACKET, VACUUM SURGE TANK

main25759-24010iM20AFKS..MZAA10¥450202207

9010506352

main90105-06352¥60

9010506359

main90105-06359¥60

9011906A12

main90119-06A12¥60

9048014027

main90480-14027¥120

9048014030

main90480-14030¥100

91552F1040

main91552-F1040¥120

9641162000

main96411-62000¥280

39 parts on this diagram · 2 diagrams in section
