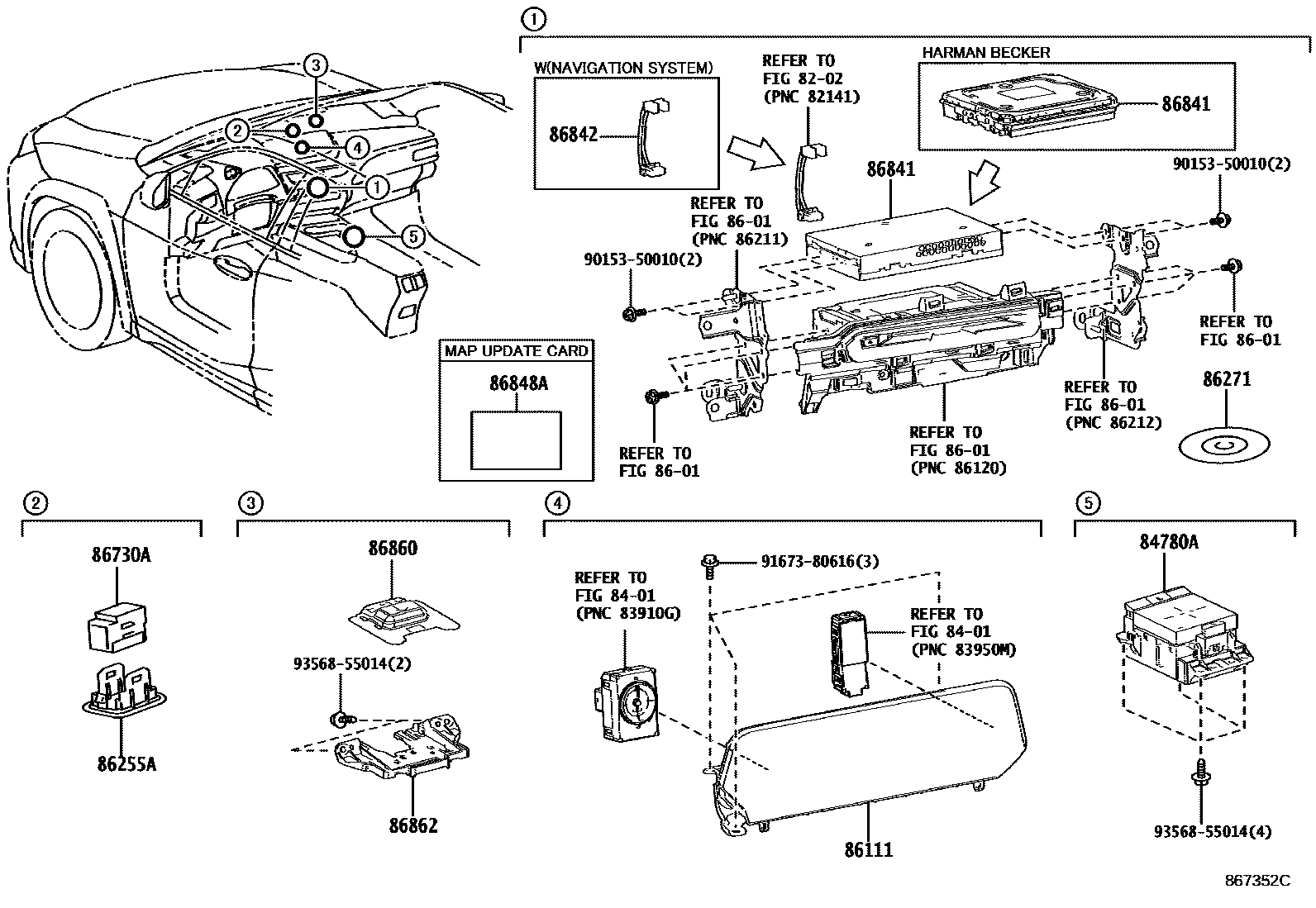

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8202

8401

84780ACONTROLLER ASSY, REMOTE OPERATION

main84780-76170iMZAA10,MZAH1#..GCC,GEN¥27,300201810-202108

AUDIO-EMV & 13SPEAKER

main84780-76170iMZAA10,MZAH1#..GCC,GEN¥27,300201810-202108

AUDIO-EMV & 13SPEAKER&EMV & NAVIGATION SYSTEM-WITH

main84780-76170iMZAA10,MZAH1#..CHI,EUR¥27,300201810-202108

AUDIO-EMV & 8SPEAKER

main84780-76170iMZAA10,MZAH1#..CHI,EUR¥27,300201810-202108

AUDIO-EMV & 8SPEAKER&EMV & NAVIGATION SYSTEM-WITH

main84780-76171iMZAA10,MZAH10..RHD..GEN¥27,300202108-202207

HONG KONG SPEC&AUDIO-EMV & 13SPEAKER

main84780-76171iMZAA10,MZAH10..RHD..GEN¥27,300202108-202207

MACAU SPEC&AUDIO-EMV & 13SPEAKER

main84780-76171iMZAA10,MZAH10..RHD..GEN¥27,300202108-202207

LUXURY PACKAGE&AUDIO-EMV & 8SPEAKER

main84780-76171iMZAA10,MZAH10..RHD..GEN¥27,300202108-202207

F SPORT&AUDIO-EMV & 8SPEAKER

main84780-76171iMZAA10,MZAH10..RHD..GEN¥27,300202108-202207

AUDIO-EMV & 8SPEAKER

main84780-76171iMZAA10,MZAH10..RHD..GEN¥27,300202108-202207

AUDIO-EMV & 8SPEAKER&EMV & NAVIGATION SYSTEM-WITH

main84780-76171iMZAA10,MZAH10..RHD..GEN¥27,300202108-202207

AUDIO-EMV & 13SPEAKER

main84780-76171iMZAA10,MZAH10..RHD..GEN¥27,300202108-202207

AUDIO-EMV & 13SPEAKER&EMV & NAVIGATION SYSTEM-WITH

main84780-76171iMZAA10,MZAH10..RHD..GEN¥27,300202108-202207

SOUTH AFRICA SPEC&AUDIO-EMV & 13SPEAKER

main84780-76180iMZAA10,MZAH1#..CHI,EUR,GCC,GEN201810-202108

main84780-76181iMZAA10,MZAH1#..CHI,EUR,GCC,GEN202108-202207

DOMINICA, PERU SPEC&AUDIO-EMV & 8SPEAKER

main84780-76181iMZAA10,MZAH1#..CHI,EUR,GCC,GEN202108-202207

CHILE SPEC&AUDIO-EMV & 8SPEAKER

main84780-76181iMZAA10,MZAH10..LHD..GEN202108-202207

GUATEMALA SPEC&AUDIO-EMV & 8SPEAKER

8601

86111MULTI-DISPLAY

main86111-76100iMZAA10,MZAH1#..LHD..EUR201810-202207

PANASONIC

main86111-76110iMZAA10,MZAH1#..RHD..EUR201901-202207

PANASONIC

main86111-76120iMZAA10,MZAH1#..LHD..(CHI,GCC,GEN)201810-202207

PANASONIC

main86111-76130iMZAA10,MZAH1#..RHD..GEN201810-202207

PANASONIC

main86111-76180iMZAA10,MZAH1#..ARL¥106,000201810-202207

DENSO,PREMIUM PACKAGE&AUDIO-EMV & 8SPEAKER

main86111-76180iMZAA10,MZAH1#..ARL¥106,000201810-202207

DENSO,LUXURY PACKAGE&AUDIO-EMV & 8SPEAKER

main86111-76180iMZAA10,MZAH1#..ARL¥106,000201810-202207

DENSO,F SPORT&AUDIO-EMV & 8SPEAKER

main86111-76180iMZAA10,MZAH1#..RHD..GEN¥106,000201810-202207

DENSO

86255ACASE, MICROPHONE, NO.1

main86255-78010-A1iMZAA10..EUR;MZAH1#..CHI,EUR,GCC201810-202207

WHITE,TRIM00,11,4#,8#

main86255-78010-A1iMZAA10,MZAH10..ARL;MZAH15..RHD..(ARL,GEN)201810-202207

WHITE,TRIM00,4#,8#

main86255-78010-A1iMZAA10,MZAH10..ARL;MZAH15..RHD..(ARL,GEN)201810-202207

WHITE,TRIM00,02,11,4#,8#

main86255-78010-A1iMZAH10..RHD..GEN201811-202207

WHITE,TRIM00,02,4#,8#

main86255-78010-A1iMZAA10..CHI201812-202207

WHITE,TRIM0#,11,4#,8#

main86255-78010-C1iMZAA10..CHI201812-202207

BLACK,TRIM10,2#,3#

main86255-78010-C1iMZAH1#..LHD..GEN;MZAH1#..CHI,EUR,GCC;MZAA10..EUR,GCC,GEN201810-202207

BLACK,TRIM01,1#,2#,3#

main86255-78010-C1iMZAH1#..LHD..GEN;MZAH1#..CHI,EUR,GCC;MZAA10..EUR,GCC,GEN201810-202207

BLACK,TRIM01,10,2#,3#

86271DISC, DISC PLAYER

main86807-11041iMZAA10,MZAH1#..ARL201810-201909

sub86807-11042

main86807-11042iMZAA10,MZAH1#..ARL201910-202009

sub86807-11043

main86807-11043iMZAA10,MZAH1#..ARL202010-202109

sub86807-11044

main86807-11044iMZAA10,MZAH1#..ARL202110-202207

86730AMICROPHONE ASSY, TELEPHONE

main86730-11010iMZAA10,MZAH1#¥7,100201810-202010

sub86730-48110¥6,400

main86730-48110iMZAA10,MZAH1#¥6,400202010-202207

86841COMPUTER, NAVIGATION

main86840-33311iMZAA10,MZAH1#..ARL201810-201910

main86840-48221iMZAA10,MZAH1#..ARL201910-202009

sub86840-48222

main86840-48222iMZAA10,MZAH1#..ARL202010-202109

sub86840-48224

main86840-48223iMZAA10,MZAH1#..ARL202110-202207

sub86840-48224

86842WIRE, NAVIGATION, NO.1

main86842-76320iMZAA10,MZAH1#..EUR¥2,610201810-202207

AUDIO-EMV & 8SPEAKER

main86842-76320iMZAA10,MZAH1#..ARL¥2,610201810-202207

AUDIO-EMV & 8SPEAKER&EMV & NAVIGATION SYSTEM-WITH

main86842-76320iMZAA10,MZAH1#..ARL¥2,610201810-202207

AUDIO-EMV & 13SPEAKER

main86842-76320iMZAA10,MZAH1#..ARL¥2,610201810-202207

AUDIO-EMV & 13SPEAKER&EMV & NAVIGATION SYSTEM-WITH

86848ACARD, SERIAL NUMBER MAP UPDATE

main86848-33040iMZAA10,MZAH1#..ARL¥12,100201810-202207

86860ANTENNA ASSY, NAVIGATION

main86860-78010iMZAH1#..EUR;MZAA10..LHD..EUR¥8,500201810-202207

main86880-52020iMZAA10,MZAH1#..CHI¥8,500201910-202207

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iMZAA10,MZAH1#¥940202110-202207

main86862-58020iMZAA10,MZAH1#¥940201810-202109

9015350010

main90153-50010¥70

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

16 parts on this diagram · 2 diagrams in section
