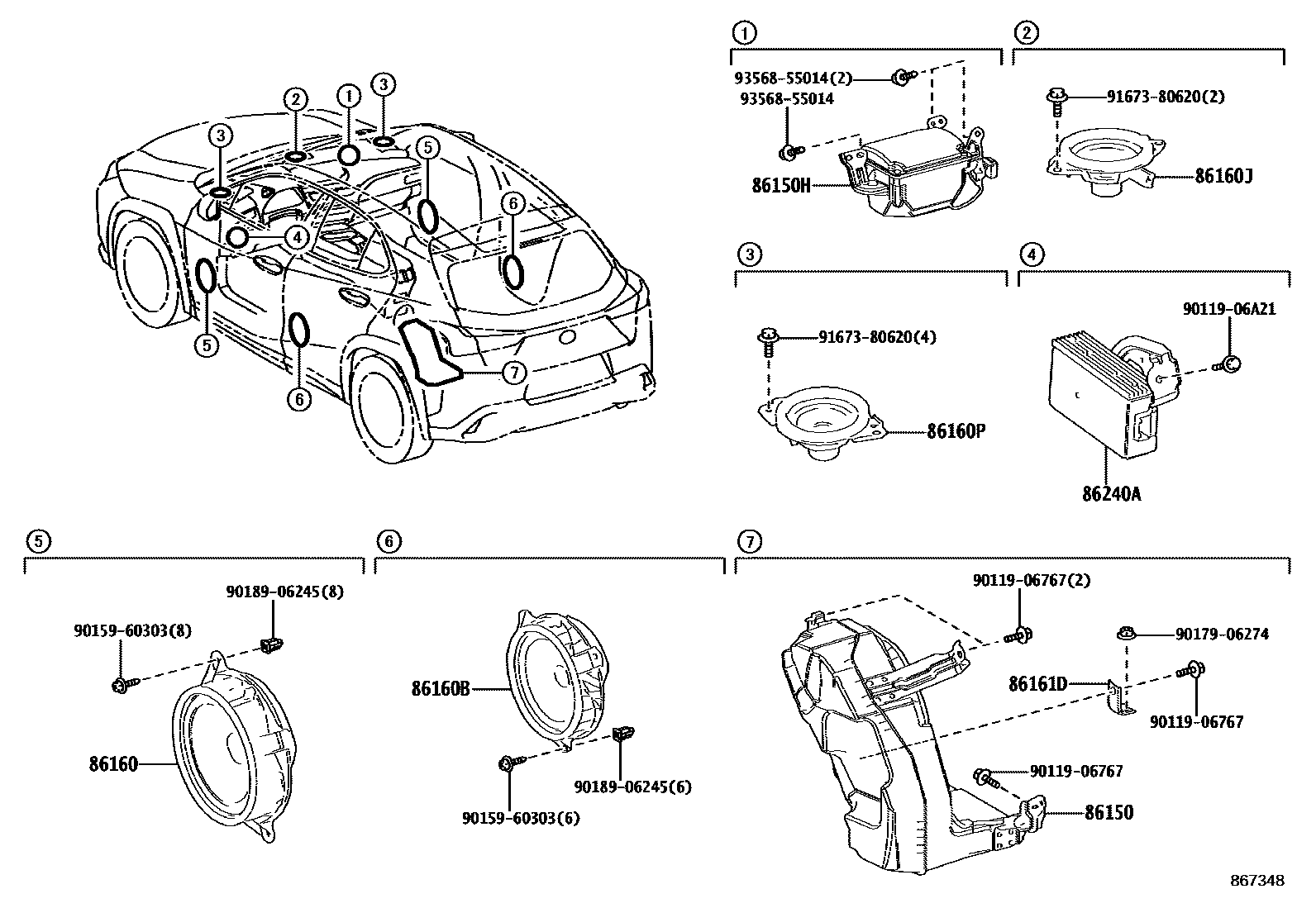

SPEAKER

0001 1 0002 1

86150SPEAKER ASSY, W/BOX, NO.1

main86150-76040iMZAA10,MZAH1#..ARL201810-202207

AUDIO-EMV & 8SPEAKER

86150HSPEAKER ASSY, W/BRACKET

86160SPEAKER ASSY, FRONT NO.1

main86160-76130iMZAA10,MZAH1#201810-202207

86160BSPEAKER ASSY, REAR

main86160-76140iMZAA10,MZAH1#201810-202207

86160JSPEAKER ASSY, FRONT NO.3

main86160-76010iMZAA10,MZAH1#..ARL201810-202207

AUDIO-EMV & 8SPEAKER

86160PSPEAKER ASSY, FRONT NO.2

main86160-76010iMZAA10,MZAH1#..ARL201810-202207

AUDIO-EMV & 8SPEAKER

main86160-76120iMZAA10,MZAH1#..CHI,EUR,GCC,GEN201810-202207

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-76020iMZAA10,MZAH1#..ARL201810-202003

AUDIO-EMV & 8SPEAKER

main86161-76020iMZAA10,MZAH1#..ARL201810-202003

AUDIO-EMV & 13SPEAKER

main86161-76020iMZAA10,MZAH1#..ARL201810-202003

AUDIO-*DA & 13SPEAKER

main86161-76030iMZAA10,MZAH1#..ARL202003-202207

AUDIO-*DA & 8SPEAKER

main86161-76030iMZAA10,MZAH1#..ARL202003-202207

AUDIO-EMV & 8SPEAKER

main86161-76030iMZAA10,MZAH1#..ARL202003-202207

AUDIO-EMV & 13SPEAKER

main86161-76030iMZAA10,MZAH1#..ARL202003-202207

AUDIO-*DA & 13SPEAKER

86240AEQUALIZER ASSY,STEREO COMPONENT

9011906767

main90119-06767

9011906A21

main90119-06A21

9015960303

main90159-60303

9017906274

main90179-06274

9018906245

main90189-06245

9167380620

main91673-80620

9356855014

main93568-55014

15 parts on this diagram · 2 diagrams in section
