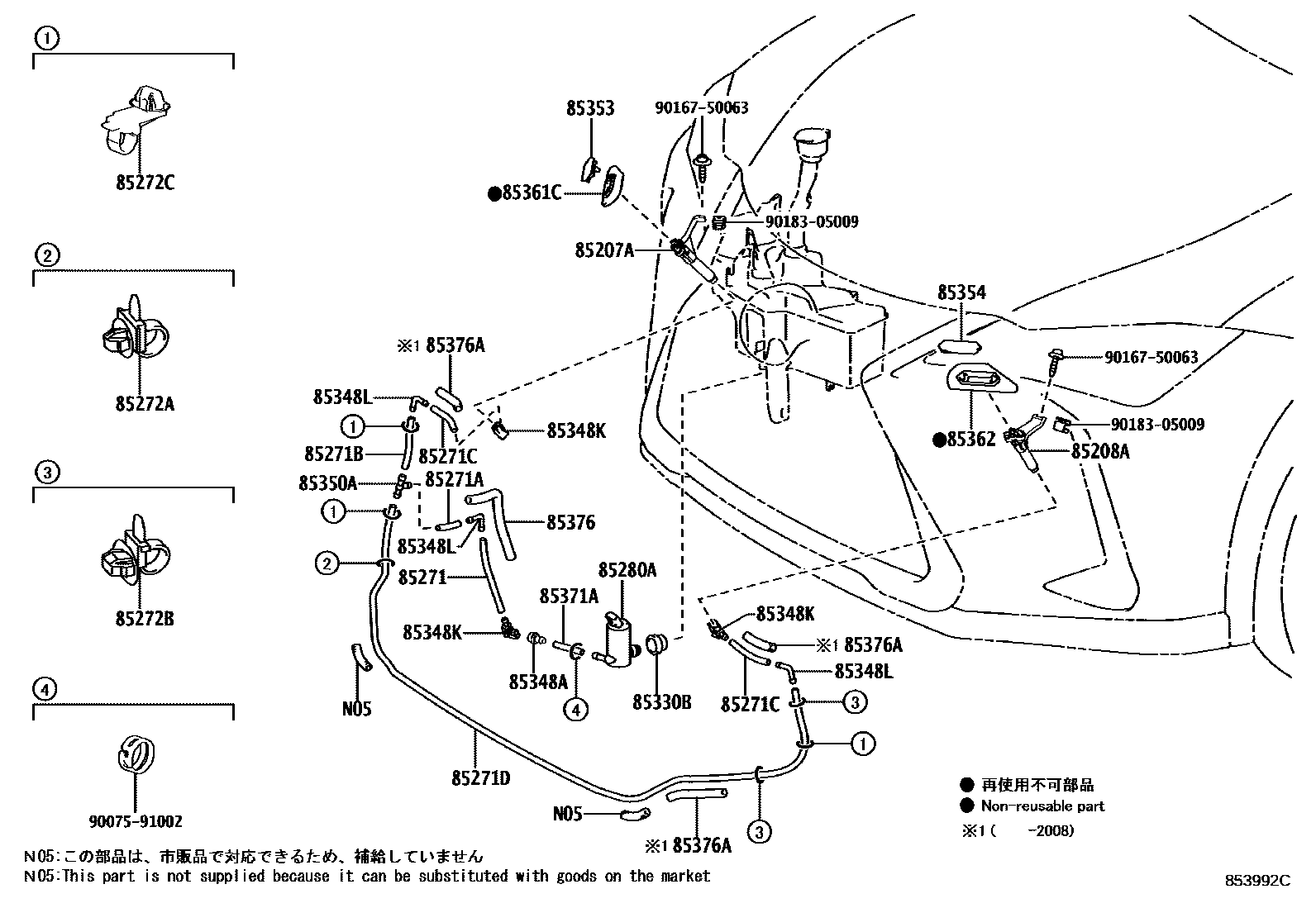

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85271HOSE, HEADLAMP CLEANER, NO.1
L=160,F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
L=180,HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85271AHOSE, HEADLAMP CLEANER, NO.2
L=50,F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
L=65,HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85271BHOSE, HEADLAMP CLEANER, NO.3
L=100,F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
L=100,HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85271CHOSE, HEADLAMP CLEANER, NO.4
L=1780,F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
L=140,HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85271DHOSE, HEADLAMP CLEANER, NO.5
L=1780,HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85272ACLAMP, HEADLAMP CLEANER, NO.1
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85272BCLAMP, HEADLAMP CLEANER, NO.2
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85272CCLAMP, HEADLAMP CLEANER, NO.3
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85330BBUSH, HEADLAMP CLEANER WASHER JAR
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85353COVER, HEADLAMP WASHER, RH
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),SONIC QUARTZ,085
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),MERCURY GRAY MC.,1H9
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),PLATINUM SILVER ME.,1J4
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),SONIC TITANIUM,1J7
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),SONIC CHROME,1L1
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),BLACK,212
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),GRAPHITE BLACK GF.,223
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),MADDER RED,3T2
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),AMBER CS.,4X2
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),BLAZING CARNELIAN CONTRAS,4Y1
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),TERRANE KHAKI M.M.,6X4
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),CELESTIAL BLUE GF.,8Y6
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),WHITE NOVA GF.,083
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),MERCURY GRAY MC.,1H9
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),PLATINUM SILVER ME.,1J4
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),SONIC TITANIUM,1J7
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),SONIC CHROME,1L1
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),BLACK,212
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),GRAPHITE BLACK GF.,223
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),MADDER RED,3T2
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),BLAZING CARNELIAN CONTRAS,4Y1
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),TERRANE KHAKI M.M.,6X4
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),HEAT BLUE CONTRAST LAYERI,8X1
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),CELESTIAL BLUE GF.,8Y6
85354COVER, HEADLAMP WASHER, LH
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),SONIC QUARTZ,085
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),MERCURY GRAY MC.,1H9
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),PLATINUM SILVER ME.,1J4
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),SONIC TITANIUM,1J7
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),SONIC CHROME,1L1
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),BLACK,212
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),GRAPHITE BLACK GF.,223
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),MADDER RED,3T2
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),AMBER CS.,4X2
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),BLAZING CARNELIAN CONTRAS,4Y1
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),TERRANE KHAKI M.M.,6X4
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),CELESTIAL BLUE GF.,8Y6
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),WHITE NOVA GF.,083
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),MERCURY GRAY MC.,1H9
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),PLATINUM SILVER ME.,1J4
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),SONIC TITANIUM,1J7
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),SONIC CHROME,1L1
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),BLACK,212
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),GRAPHITE BLACK GF.,223
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),MADDER RED,3T2
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),BLAZING CARNELIAN CONTRAS,4Y1
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),TERRANE KHAKI M.M.,6X4
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),HEAT BLUE CONTRAST LAYERI,8X1
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE),CELESTIAL BLUE GF.,8Y6
85361CBRACKET, WASHER
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85362BRACKET, WASHER, NO.2
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=35,HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
85376APROTECTOR, HEADLAMP CLEANER HOSE, NO.2
F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)
9007591002
main90075-91002
9016750063
main90167-50063
9018305009
main90183-05009
26 parts on this diagram · 2 diagrams in section
