WIRELESS DOOR LOCK

8435

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-76120iMZAA10,MZAH1#..ARL201810-202108

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iMZAA10,MZAH1#..CHI¥2,900201810-202207

89990ACOMPUTER ASSY, SMART KEY

main899H0-76010iMZAH1#..RHD201811-201910

main899H0-76020iMZAA10..RHD201810-201910

main899H0-76050iMZAH1#..LHD201811-201910

main899H0-76060iMZAA10..LHD201810-201910

main899H0-76090iMZAH1#..RHD201910-202010

main899H0-76100iMZAA10..RHD201910-202010

main899H0-76130iMZAH1#..LHD201910-202010

sub899H0-76131

main899H0-76140iMZAA10..LHD201910-202010

main899H0-76250iMZAH1#..RHD202010-202108

main899H0-76260iMZAA10..RHD202010-202108

main899H0-76290iMZAH1#..LHD202010-202105

sub899H0-76291

main899H0-76291iMZAH1#..LHD202106-202108

sub899H0-76292

main899H0-76300iMZAA10..LHD202010-202108

main899H0-76400iMZAH1#..RHD202108-202204

sub899H0-76401

main899H0-76401iMZAH1#..RHD202205-202207

main899H0-76410iMZAA10..RHD202108-202207

main899H0-76440iMZAH1#..LHD202108-202207

sub899H0-76441

main899H0-76450iMZAA10..LHD202108-202207

89997ANTENNA, ELECTRICAL KEY

main89997-30100¥1,800

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iMZAA10,MZAH1#¥1,410201810-202207

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47050iMZAH1#¥1,550201811-202108

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-10010iMZAA10¥1,550201810-202108

899A1ANTENNA, INDOOR ELECTRICAL KEY

main899A1-60010iMZAA10,MZAH1#¥4,940201810-202108

9011906A07

main90119-06A07¥60

9017906274

main90179-06274¥70

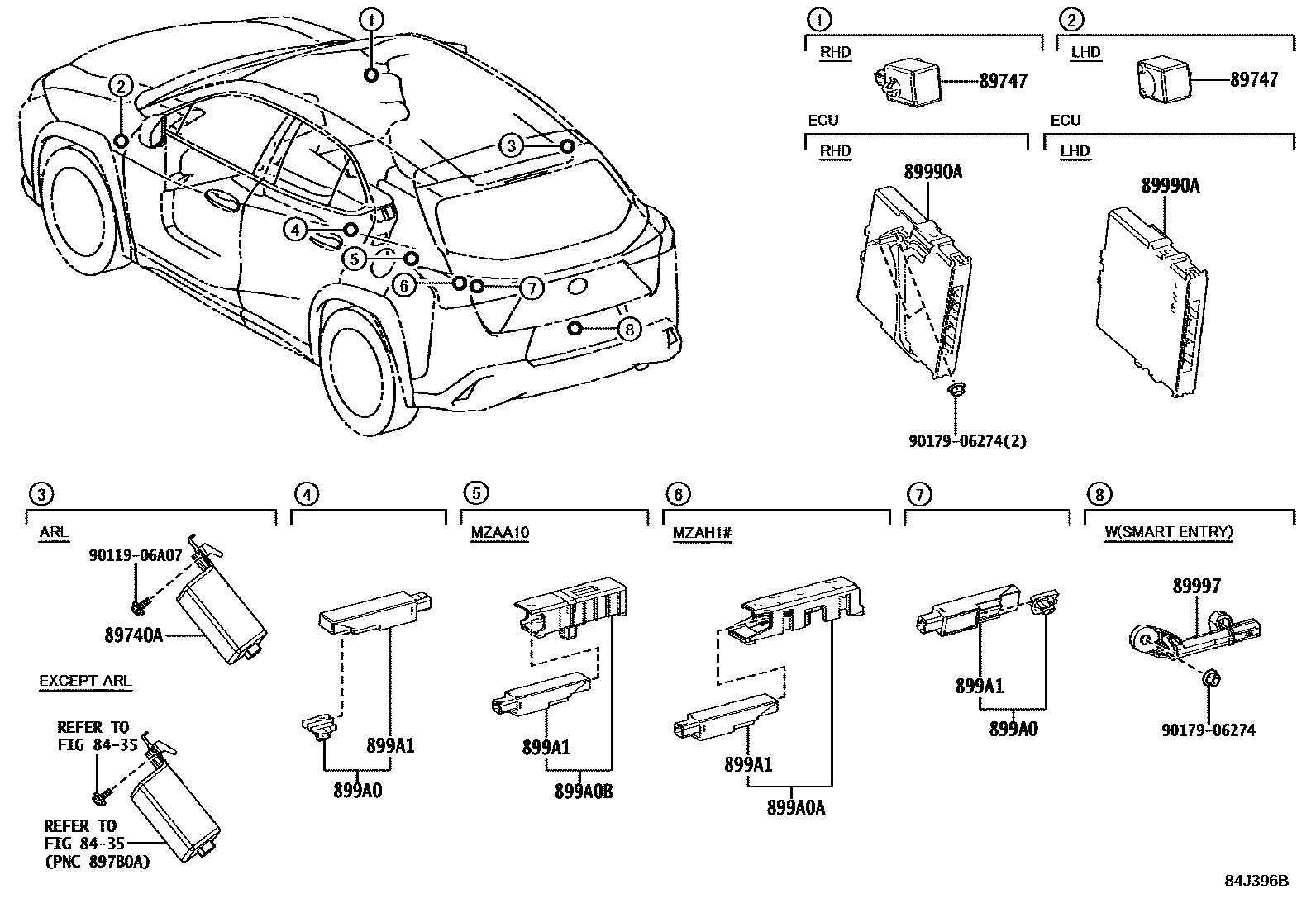

11 parts on this diagram · 1 diagram in section
