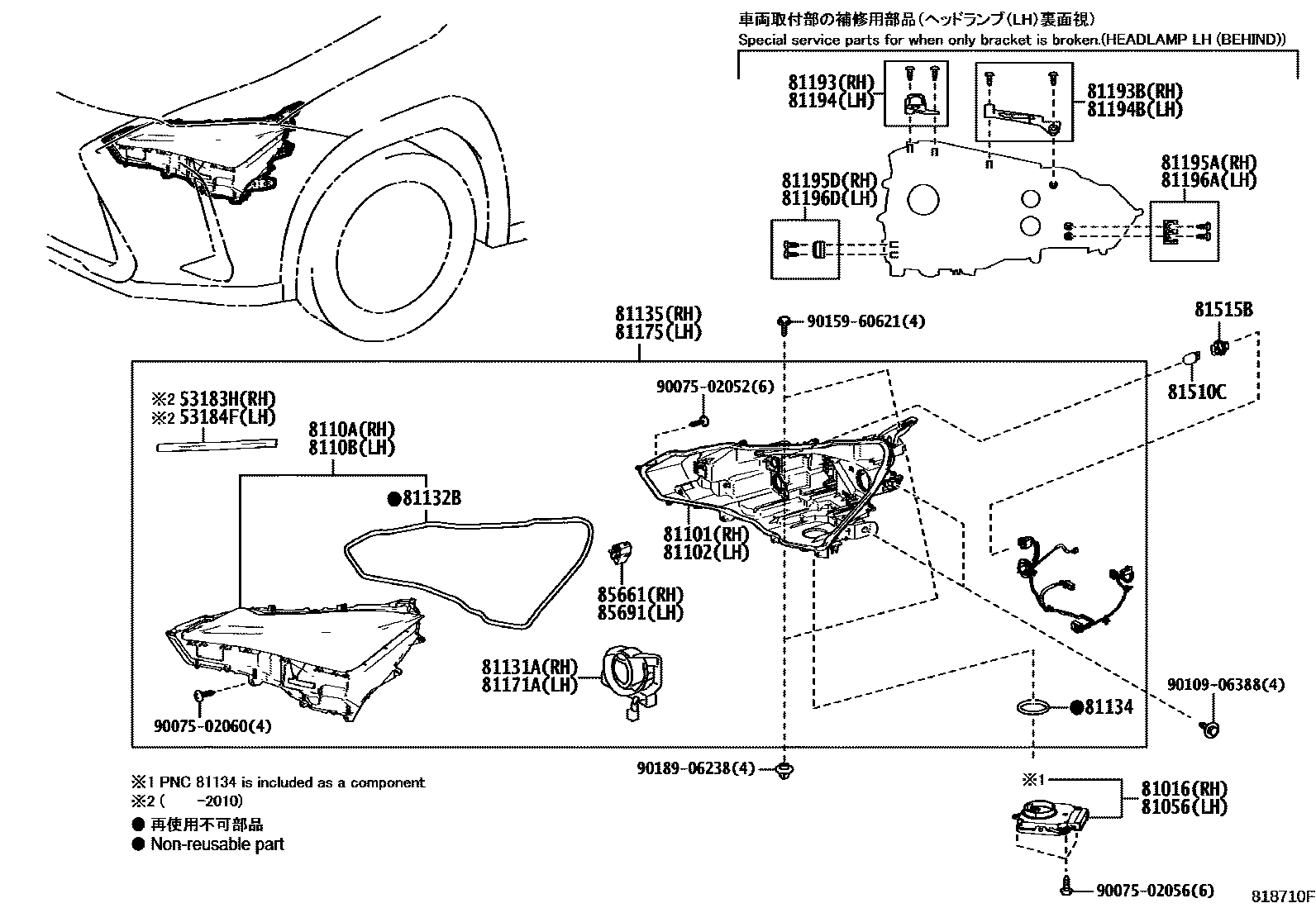

HEADLAMP

0001 1PROJECTOR 0002 1TRINOCULAR FULL LED

53183HSEAL, HEADLAMP COVER, RH

main53183-76010iMZAA10,MZAH1#201810-202010

53184FSEAL, HEADLAMP COVER, LH

main53184-76010iMZAA10,MZAH1#201810-202010

81016COMPUTER SUB-ASSY, HEADLAMP, RH NO.1

main81016-76230iMZAA10,MZAH1#201810-202207

81056COMPUTER SUB-ASSY, HEADLAMP, LH NO.1

main81056-76230iMZAA10,MZAH1#201810-202207

81101HOUSING SUB-ASSY, HEADLAMP, RH

main8111B-76240iMZAA10,MZAH1#..LHD..GEN;MZAA10,MZAH1#..CHI,EUR,GCC201810-202207

81102HOUSING SUB-ASSY, HEADLAMP, LH

main8115B-76240iMZAA10,MZAH1#..LHD..GEN;MZAA10,MZAH1#..CHI,EUR,GCC201810-202207

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-76240iMZAA10,MZAH1#..LHD201810-202207

main8110A-76250iMZAA10,MZAH1#..RHD201810-202207

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-76240iMZAA10,MZAH1#..LHD201810-202207

main8110B-76250iMZAA10,MZAH1#..RHD201810-202207

81131AUNIT, HEADLAMP, RH

main81130-76240iMZAA10,MZAH1#..LHD201810-202207

main81130-76250iMZAA10,MZAH1#..RHD201810-202207

81132BGASKET, HEADLAMP LENS

main81132-30E40iMZAA10,MZAH1#201810-202207

81134GASKET, HEADLAMP

main90075-23003iMZAA10,MZAH1#201810-202207

81135UNIT ASSY, HEADLAMP, RH

main81145-76240iMZAA10,MZAH1#..LHD201810-202010

sub81145-76241

sub53183-76010

main81145-76241iMZAA10,MZAH1#..LHD..(EUR,GCC,GEN)202010-202207

main81145-76250iMZAA10,MZAH1#..RHD201810-202010

sub81145-76251

sub53183-76010

main81145-76251iMZAA10,MZAH1#..RHD202010-202207

main81145-76350iMZAA10,MZAH1#..CHI202010-202207

81171AUNIT, HEADLAMP, LH

main81170-76240iMZAA10,MZAH1#..LHD201810-202207

main81170-76250iMZAA10,MZAH1#..RHD201810-202207

81175UNIT ASSY, HEADLAMP, LH

main81185-76240iMZAA10,MZAH1#..LHD201810-202010

sub81185-76241

sub53184-76010

main81185-76241iMZAA10,MZAH1#..LHD..(EUR,GCC,GEN)202010-202207

main81185-76250iMZAA10,MZAH1#..RHD201810-202010

sub81185-76251

sub53184-76010

main81185-76251iMZAA10,MZAH1#..RHD202010-202207

main81185-76350iMZAA10,MZAH1#..CHI202010-202207

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-76040iMZAA10,MZAH1#201810-202207

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-76070iMZAA10,MZAH1#201810-202207

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-76040iMZAA10,MZAH1#201810-202207

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-76070iMZAA10,MZAH1#201810-202207

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81193-76050iMZAA10,MZAH1#201810-202207

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81193-76060iMZAA10,MZAH1#201810-202207

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81194-76050iMZAA10,MZAH1#201810-202207

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81194-76060iMZAA10,MZAH1#201810-202207

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iMZAA10,MZAH1#201810-202207

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iMZAA10,MZAH1#201810-202207

85661MOTOR, HEADLAMP LEVELING, RH

main85661-48050iMZAA10,MZAH1#201810-202207

85691MOTOR, HEADLAMP LEVELING, LH

main85661-48050iMZAA10,MZAH1#201810-202207

9007502052

main90075-02052

9007502056

main90075-02056

9007502060

main90075-02060

9010906388

main90109-06388

9015960621

main90159-60621

9018906238

main90189-06238

32 parts on this diagram · 2 diagrams in section
