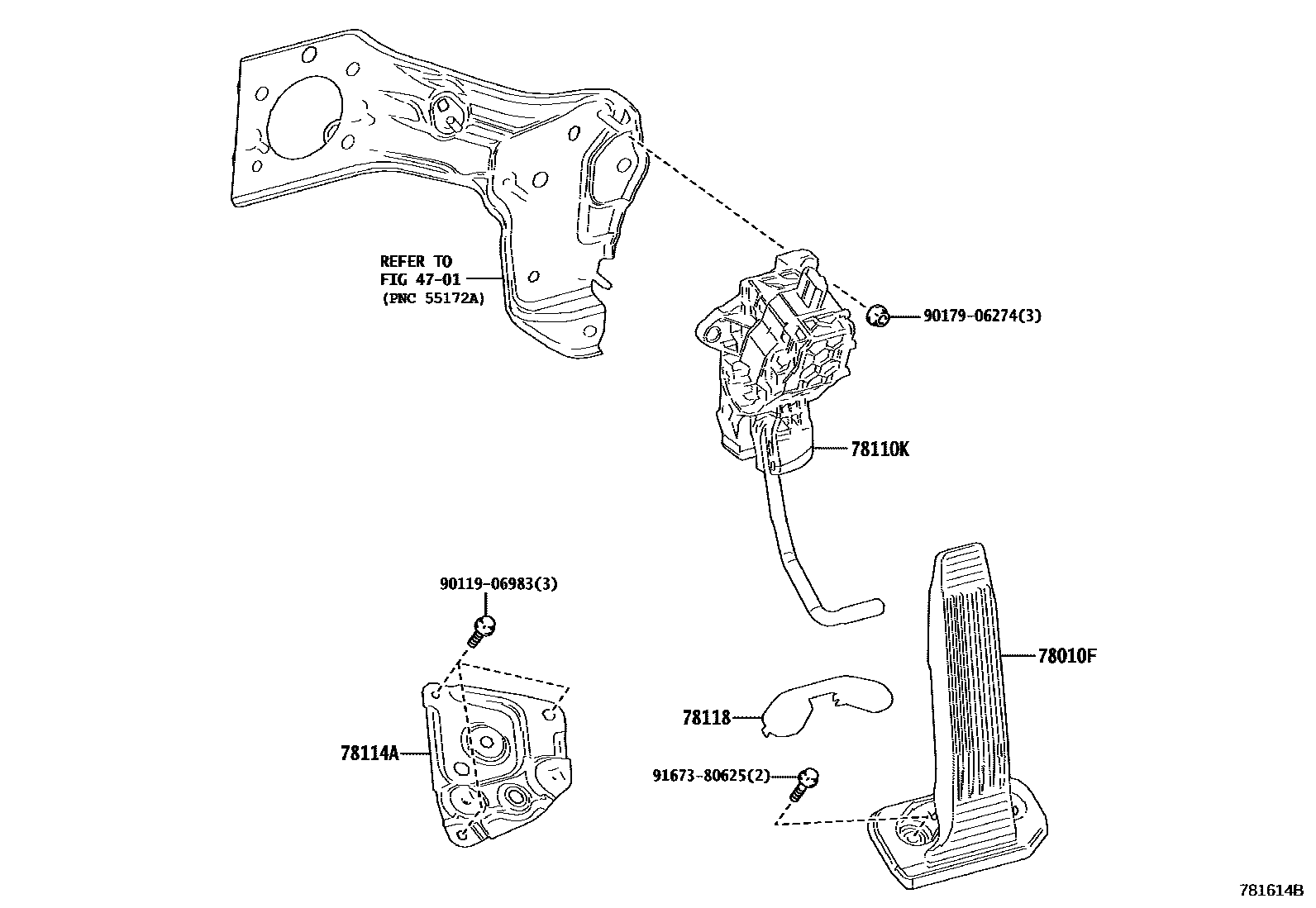

ACCELERATOR LINK

0001 1 0002 1

4701

78010FPEDAL ASSY, ACCELERATOR

main78101-50050iMZAA10,MZAH1#..LHD201810-202207

main78101-76030iMZAA10,MZAH1#..RHD201810-202207

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-76050iMZAH1#..LHD..(CHI,GCC,GEN)201811-202009

sub78110-76051

main78110-76051iMZAH1#..LHD..(CHI,GCC,GEN)202010-202207

main78110-76130iMZAA10..LHD;MZAH1#..LHD..EUR201810-202009

sub78110-76131

main78110-76131iMZAA10..LHD;MZAH1#..LHD..EUR202010-202207

main78110-76140iMZAH1#..RHD..(ARL,GEN)201811-202009

sub78110-76141

main78110-76141iMZAH1#..RHD..(ARL,GEN)202010-202207

main78110-76150iMZAA10..RHD;MZAH1#..RHD..EUR201810-202009

sub78110-76151

main78110-76151iMZAA10..RHD;MZAH1#..RHD..EUR202010-202207

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-76010iMZAA10,MZAH1#..LHD201810-202207

main78114-76020iMZAA10,MZAH1#..RHD201810-202207

78118PAD, ACCELERATOR PEDAL

main78117-11010iMZAA10,MZAH1#..LHD201810-202207

main78117-76010iMZAA10,MZAH1#..RHD201810-202207

9011906983

main90119-06983

9017906274

main90179-06274

9167380625

main91673-80625

8 parts on this diagram · 2 diagrams in section
