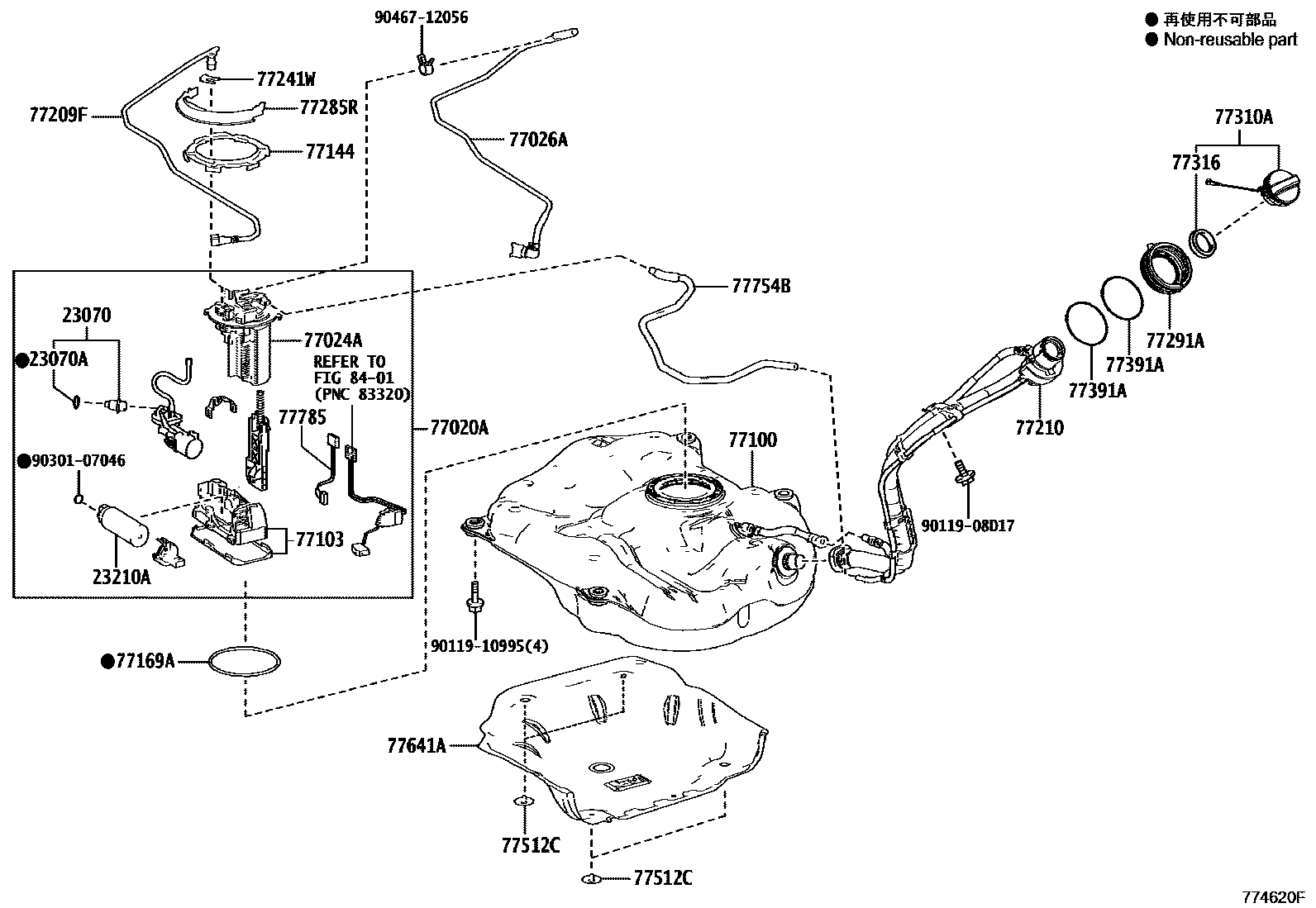

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK, W(CHARCOAL CANISTE0003 1FUEL TANK 0004 1FUEL TANK, W(CHARCOAL CANISTE0005 1FUEL TUBE 0006 1FUEL TUBE, W(CHARCOAL CANISTE0007 1FUEL TUBE 0008 1FUEL TUBE, W(CHARCOAL CANISTE0009 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-24010iM20AFKS..MZAA10..CHI201810-202207

main23070-25020iM20AFKS..MZAA10..CHI202010-202207

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iM20#..MZAA10,MZAH1#201810-202207

23210APUMP ASSY, FUEL W/MOTOR & BRACKET

main23210-24010iM20AFKS..MZAA10..CHI201810-202207

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-76020iMZAH1#..CHI202010-202207

sub77020-76021

main77020-76040iMZAH1#..CHI201811-202207

main77020-76050iMZAA10..CHI202010-202207

main77020-76060iMZAA10..ARL,EUR,GCC,GEN201810-202207

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-12380iMZAH1#..ARL,EUR,GCC,GEN201811-202207

main77024-76020iMZAH1#..CHI202010-202207

sub77024-76021

main77024-76030iMZAA10..CHI201810-202207

main77024-76040iMZAA10..CHI202010-202207

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-10040iMZAA10..CHI201810-202207

main77026-47040iMZAH1#..CHI201811-202207

77100TANK ASSY, FUEL

main77001-76090iMZAH1#..CHI202010-202011

sub77001-76200

main77001-76120iMZAH1#..ARL,EUR,GCC,GEN201811-202012

sub77001-76210

main77001-76140iMZAA10..CHI202010-202011

sub77001-76230

main77001-76150iMZAA10..ARL,EUR,GCC,GEN201810-202012

sub77001-76240

main77001-76200iMZAH1#..CHI202012-202207

main77001-76210iMZAH1#..ARL,EUR,GCC,GEN202101-202207

main77001-76230iMZAA10..CHI202012-202207

main77001-76240iMZAA10..ARL,EUR,GCC,GEN202101-202207

77103SUB-TANK SUB-ASSY, FUEL

main77103-12150iMZAA10..CHI202010-202207

main77103-42090iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202207

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMZAA10,MZAH1#201810-202207

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iMZAA10,MZAH1#..CHI201810-202207

main77169-47040iMZAA10,MZAH1#..CHI201810-202207

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-47100iMZAH1#..CHI201811-202207

main77209-76010iMZAH1#..CHI202010-202207

main77209-76030iMZAA10..EUR201810-201905

sub77209-76031

main77209-76031iMZAA10..EUR201906-202207

main77209-76040iMZAA10..LHD..EUR201810-201905

EXHAUST EMISSION CONTROL-EURO 6

sub77209-76041

main77209-76041iMZAA10..ARL,GCC,GEN201906-202207

main77209-76050iMZAH1#..EUR201811-202207

77210PIPE ASSY, FUEL TANK FILLER

main77210-76050iMZAA10,MZAH1#..CHI202010-202207

main77210-76100iMZAA10,MZAH1#..CHI201810-202207

77241WCLIP, TUBE JOINT

main77241-33011iMZAA10..CHI201810-202012

main77241-60550iMZAA10..CHI202012-202207

77285RCLAMP, FUEL TUBE, NO.1

main77285-30350iMZAH1#..CHI201811-202207

main77285-76010iMZAA10201810-202207

main77285-76020iMZAH1#..CHI202010-202207

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-47040iMZAA10,MZAH1#201810-202207

77310ACAP ASSY, FUEL TANK

main77300-11010iMZAH1#..CHI202010-202207

main77300-12020iMZAA10,MZAH1#..CHI201810-202207

main77300-33080iMZAA10..CHI202010-202207

main77300-48020iMZAA10,MZAH1#..EUR201810-202207

77316GASKET, FUEL TANK CAP

main77316-52040iMZAA10,MZAH1#..CHI201810-202207

main77316-75020iMZAA10,MZAH1#..CHI201810-202207

77391ARING, FUEL INLET BOX

main77391-12020iMZAA10,MZAH1#201810-202207

77512CBRACKET, FUEL TANK

main77512-35140iMZAA10,MZAH1#201810-202207

77641APROTECTOR, FUEL TANK, NO.1

main77606-76020iMZAH1#..ARL,EUR,GCC,GEN201811-202207

main77641-76020iMZAH1#..CHI202010-202207

main77641-76040iMZAA10201810-202207

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-47090iMZAH1#..CHI201811-202207

main77754-76020iMZAA10..CHI201810-202207

77785HARNESS, FUEL PUMP

main77785-76010iMZAA10..CHI201810-202207

8401

9011908D17

main90119-08D17

9011910995

main90119-10995

9030107046

main90301-07046

9046712056

main90467-12056

27 parts on this diagram · 9 diagrams in section
