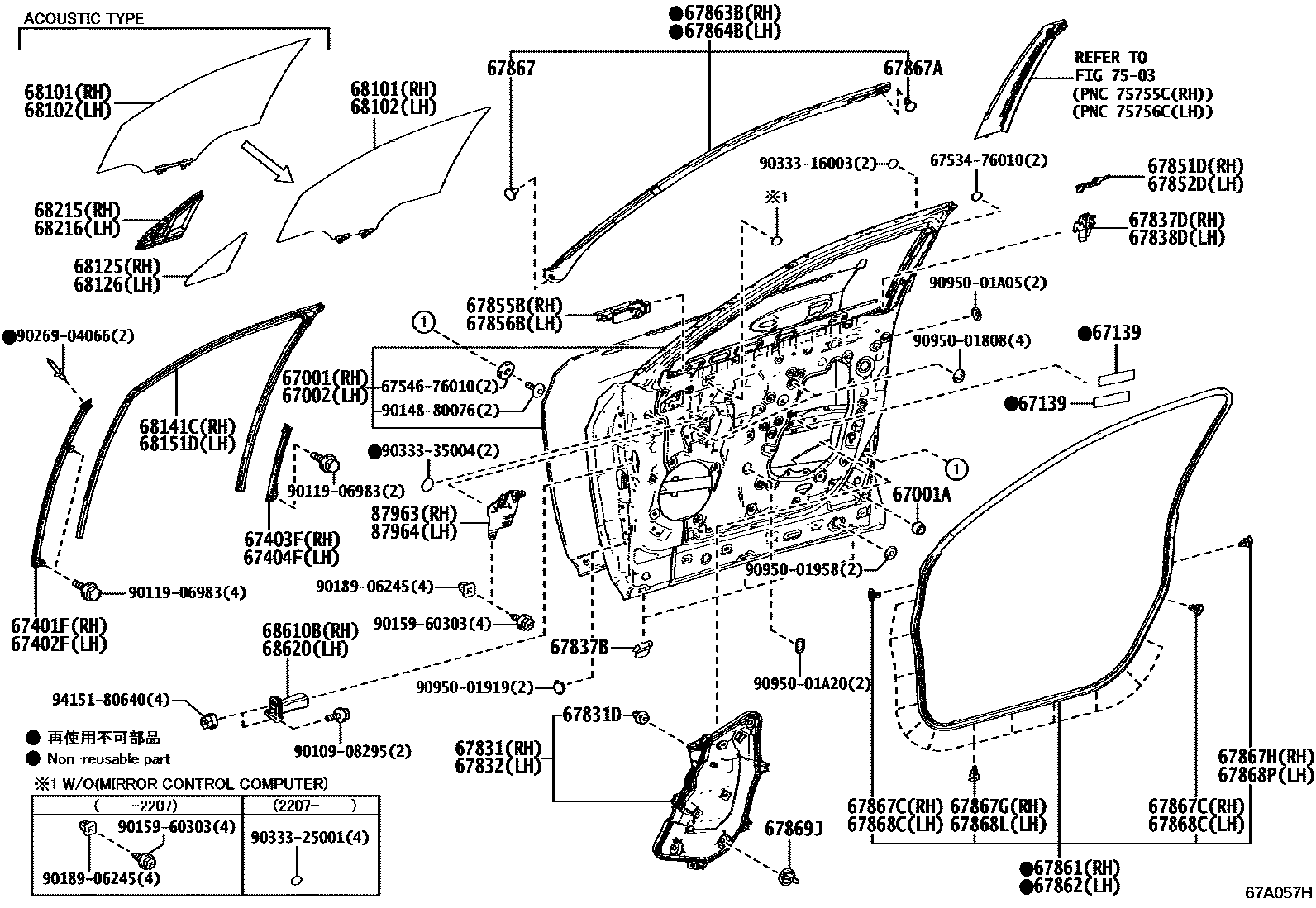

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-79045iMZAA10,MZAH1#..CHI201812-202001

sub67001-79075

sub90148-60092

main67001-79065iMZAA10,MZAH1#..ARL,EUR,GCC,GEN201810-202001

sub67001-79085

sub90148-60092

main67001-79075iMZAA10,MZAH1#..CHI202001-202207

sub67001-79105

main67001-79085iMZAA10,MZAH1#..ARL,EUR,GCC,GEN202001-202207

sub67001-79115

67001ACUSHION, FRONT DOOR PANEL

main90541-09150iMZAA10,MZAH1#201810-202207

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-79045iMZAA10,MZAH1#..CHI201812-202001

sub67002-79075

sub90148-60092

main67002-79065iMZAA10,MZAH1#..ARL,EUR,GCC,GEN201810-202001

sub67002-79085

sub90148-60092

main67002-79075iMZAA10,MZAH1#..CHI202001-202207

sub67002-79105

main67002-79085iMZAA10,MZAH1#..ARL,EUR,GCC,GEN202001-202207

sub67002-79115

67139LINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67139-76010iMZAA10,MZAH1#201810-202207

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-76020iMZAA10,MZAH1#201810-202207

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-76020iMZAA10,MZAH1#201810-202207

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-76030iMZAA10,MZAH1#201810-202207

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-76030iMZAA10,MZAH1#201810-202207

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-76030iMZAA10,MZAH1#201810-202207

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09233iMZAA10,MZAH1#201810-202207

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-76030iMZAA10,MZAH1#201810-202207

67837BSEAL, FRONT DOOR DUST PROOF

main67837-76030iMZAA10,MZAH1#201810-202207

67837DSEAL, FRONT DOOR VENT, RH

main67837-76020iMZAA10,MZAH1#201810-202207

67838DSEAL, FRONT DOOR VENT, LH

main67838-76010iMZAA10,MZAH1#201810-202207

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-76010iMZAA10,MZAH1#201810-202207

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-76010iMZAA10,MZAH1#201810-202207

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-76010iMZAA10,MZAH1#201810-202207

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-76010iMZAA10,MZAH1#201810-202207

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-76020iMZAA10,MZAH1#201810-202207

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-76020iMZAA10,MZAH1#201810-202207

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-76020iMZAA10,MZAH1#201810-202207

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-76020iMZAA10,MZAH1#201810-202207

67867CLIP, DOOR WEATHERSTRIP

main67869-20030iMZAA10,MZAH1#201810-202207

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67869-33030iMZAA10,MZAH1#201810-202207

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-50130iMZAA10,MZAH1#201810-202207

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-50090iMZAA10,MZAH1#201810-202207

67867HRETAINER, DOOR WEATHERSTRIP, RH

main67867-50140iMZAA10,MZAH1#201810-202207

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-50130iMZAA10,MZAH1#201810-202207

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-50100iMZAA10,MZAH1#201810-202207

67868PRETAINER, DOOR WEATHERSTRIP, NO.1 LH

main67867-50140iMZAA10,MZAH1#201810-202207

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-50010iMZAA10,MZAH1#201810-202207

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-76090iMZAA10,MZAH1#201810-202207

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-76090iMZAA10,MZAH1#201810-202207

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-76010iMZAA10,MZAH1#201810-202207

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-76010iMZAA10,MZAH1#201810-202207

68141CRUN, FRONT DOOR GLASS, RH

main68141-76030iMZAA10,MZAH1#201810-202207

68151DRUN, FRONT DOOR GLASS, LH

main68151-76040iMZAA10,MZAH1#201810-202207

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-76010iMZAA10,MZAH1#201810-202207

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-76010iMZAA10,MZAH1#201810-202207

68610BCHECK ASSY, FRONT DOOR, RH

main68610-76020iMZAA10,MZAH1#201810-201902

sub68610-76021

main68610-76021iMZAA10,MZAH1#201902-202207

sub68610-76022

68620CHECK ASSY, FRONT DOOR, LH

main68620-76020iMZAA10,MZAH1#201810-201902

sub68620-76021

main68620-76021iMZAA10,MZAH1#201902-202207

sub68620-76031

7503

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-76020iMZAA10,MZAH1#201810-202207

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-76020iMZAA10,MZAH1#201810-202207

6753476010SEAL, FRONT DOOR DIVISION BAR, LH NO.2

main67534-76010

6754676010CHANNEL, VENT WINDOW DRIP, RH

main67546-76010

9010908295

main90109-08295

9011906983

main90119-06983

9014880076

main90148-80076

9015960303

main90159-60303

9018906245

main90189-06245

9026904066

main90269-04066

9033316003

main90333-16003

9033325001

main90333-25001

9033335004

main90333-35004

9095001808

main90950-01808

9095001919

main90950-01919

9095001958

main90950-01958

9095001A05

main90950-01A05

9095001A20

main90950-01A20

9415180640

main94151-80640

61 parts on this diagram · 2 diagrams in section
