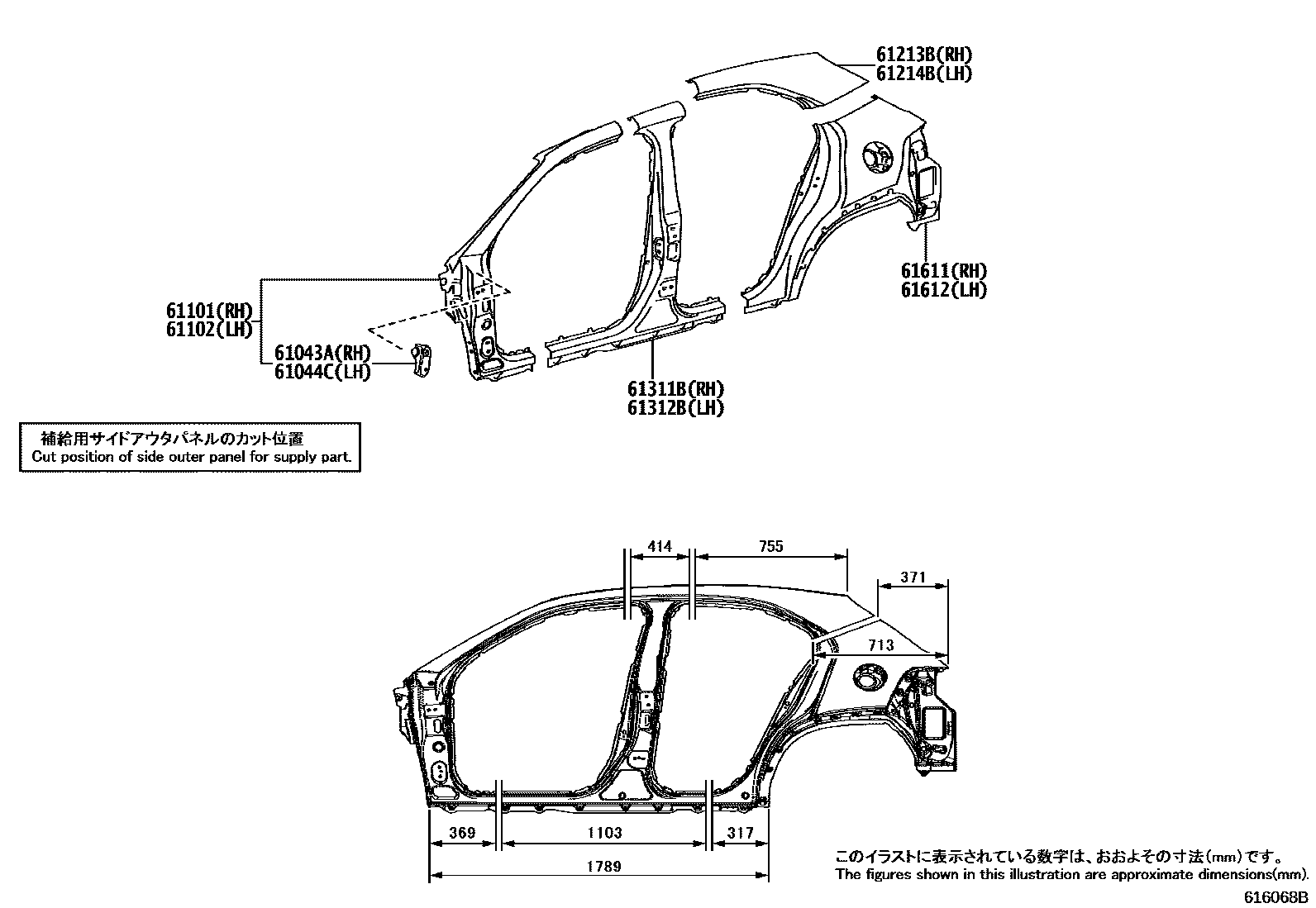

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

61043AEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH

main53838-76010iMZAA10,MZAH1#201810-202207

61044CEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH

main53839-76010iMZAA10,MZAH1#201810-202207

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-76030iMZAA10,MZAH1#201810-202207

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-76030iMZAA10,MZAH1#201810-202207

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61201-76030iMZAA10,MZAH1#201810-202207

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61202-76040iMZAA10,MZAH1#201810-202207

61311BPILLAR, CENTER BODY, OUTER RH

main61311-76020iMZAA10,MZAH1#201810-202207

61312BPILLAR, CENTER BODY, OUTER LH

main61312-76020iMZAA10,MZAH1#201810-202207

61611PANEL, QUARTER, RH

main61601-76040iMZAA10,MZAH1#201810-202207

61612PANEL, QUARTER, LH

main61602-76040iMZAA10,MZAH1#201810-202207

10 parts on this diagram · 3 diagrams in section
