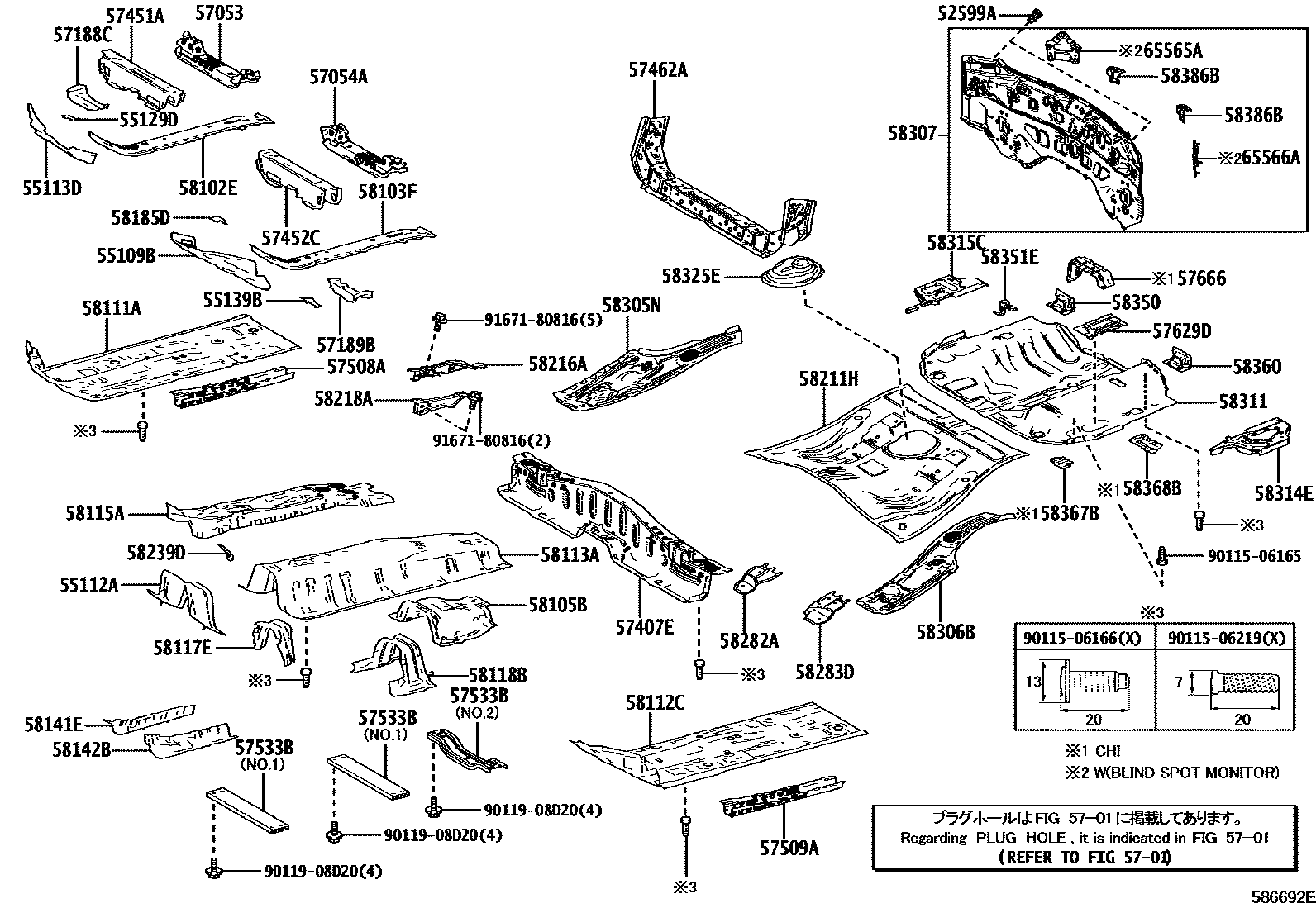

FLOOR PAN & LOWER BACK PANEL
52599ASTOPPER, REAR BUMPER, UPPER
55109BBRACE SUB-ASSY, DASH TO FRAME, LH
55112APANEL, DASH, NO.2
55113DPANEL, DASH, LOWER RH
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57462AMEMBER, CENTER FLOOR CROSS, NO.2
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57533BBRACE, FRONT FLOOR, CENTER
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
57629DPLATE, REAR FLOOR SIDE MEMBER, LH
57666PANEL, LOWER BACK SIDE, LH
SPARE TIRE-TEMPORARY(T145/90D16)
58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58115AREINFORCEMENT, FRONT FLOOR PANEL
58117EPANEL, FRONT FLOOR SUB COVER
58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2
58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH
58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH
58185DPLATE, ACCELERATOR PEDAL MOUNTING
58211HPAN, CENTER FLOOR
58216APANEL, SHIFT LEVER HOUSING, NO.1
58218APANEL, SHIFT LEVER HOUSING, NO.2
58239DBRACKET, CABLE CLAMP
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH
58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
MALAYSIA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
sub58307-76031
MALAYSIA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACKMONITOR-WITH(*PVM)
sub58307-76031
PHILIPPINES SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
sub58307-76031
PHILIPPINES SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
sub58307-76031
LATIN AMERICA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
sub58307-76031
LATIN AMERICA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
sub58307-76031
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE, *BSM&BACK MONITOR-WITH(GUIDE)
sub58307-76031
SOUTH AFRICA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
sub58307-76031
SOUTH AFRICA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
sub58307-76031
BRUNEI SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
sub58307-76031
BRUNEI SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
sub58307-76031
SINGAPORE SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
sub58307-76031
SINGAPORE SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACKMONITOR-WITH(*PVM)
sub58307-76031
INDONESIA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
sub58307-76031
INDONESIA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACKMONITOR-WITH(*PVM)
sub58307-76031
OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
sub58307-76031
OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
sub58307-76031
TAIWAN SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
sub58307-76031
TAIWAN SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
sub58307-76031
sub58307-76051
58311PAN, REAR FLOOR
58314EEXTENSION, REAR FLOOR SIDE PANEL, LH
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58325ECOVER, REAR FLOOR SERVICE HOLE
58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH
58351EBRACKET, SPARE WHEEL CLAMP
58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH
58367BBRACKET, FUEL TUBE
SPARE TIRE-TEMPORARY(T145/90D16)
58368BBRACKET, FUEL TUBE, NO.2
SPARE TIRE-TEMPORARY(T145/90D16)
58386BBRACKET, REAR BUMPER COVER, NO.2
65565APATCH, SIDE PANEL REAR END, RH
BRUNEI SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
TAIWAN SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
TAIWAN SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
MALAYSIA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
MALAYSIA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACKMONITOR-WITH(*PVM)
PHILIPPINES SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
PHILIPPINES SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
LATIN AMERICA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
LATIN AMERICA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE, *BSM&BACK MONITOR-WITH(GUIDE)
SOUTH AFRICA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
SOUTH AFRICA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
BRUNEI SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
SINGAPORE SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
SINGAPORE SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACKMONITOR-WITH(*PVM)
INDONESIA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
INDONESIA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACKMONITOR-WITH(*PVM)
OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
65566APATCH, SIDE PANEL REAR END, LH
TAIWAN SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
TAIWAN SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
MALAYSIA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
MALAYSIA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACKMONITOR-WITH(*PVM)
PHILIPPINES SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
PHILIPPINES SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
LATIN AMERICA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
LATIN AMERICA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE, *BSM&BACK MONITOR-WITH(GUIDE)
SOUTH AFRICA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
SOUTH AFRICA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
BRUNEI SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
BRUNEI SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
SINGAPORE SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
SINGAPORE SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACKMONITOR-WITH(*PVM)
INDONESIA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
INDONESIA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACKMONITOR-WITH(*PVM)
OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&BACK MONITOR-WITH(GUIDE)
OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&BACK MONITOR-WITH(*PVM)
9011506165
9011506166
9011506219
9011908D20
9167180816
58 parts on this diagram · 8 diagrams in section
