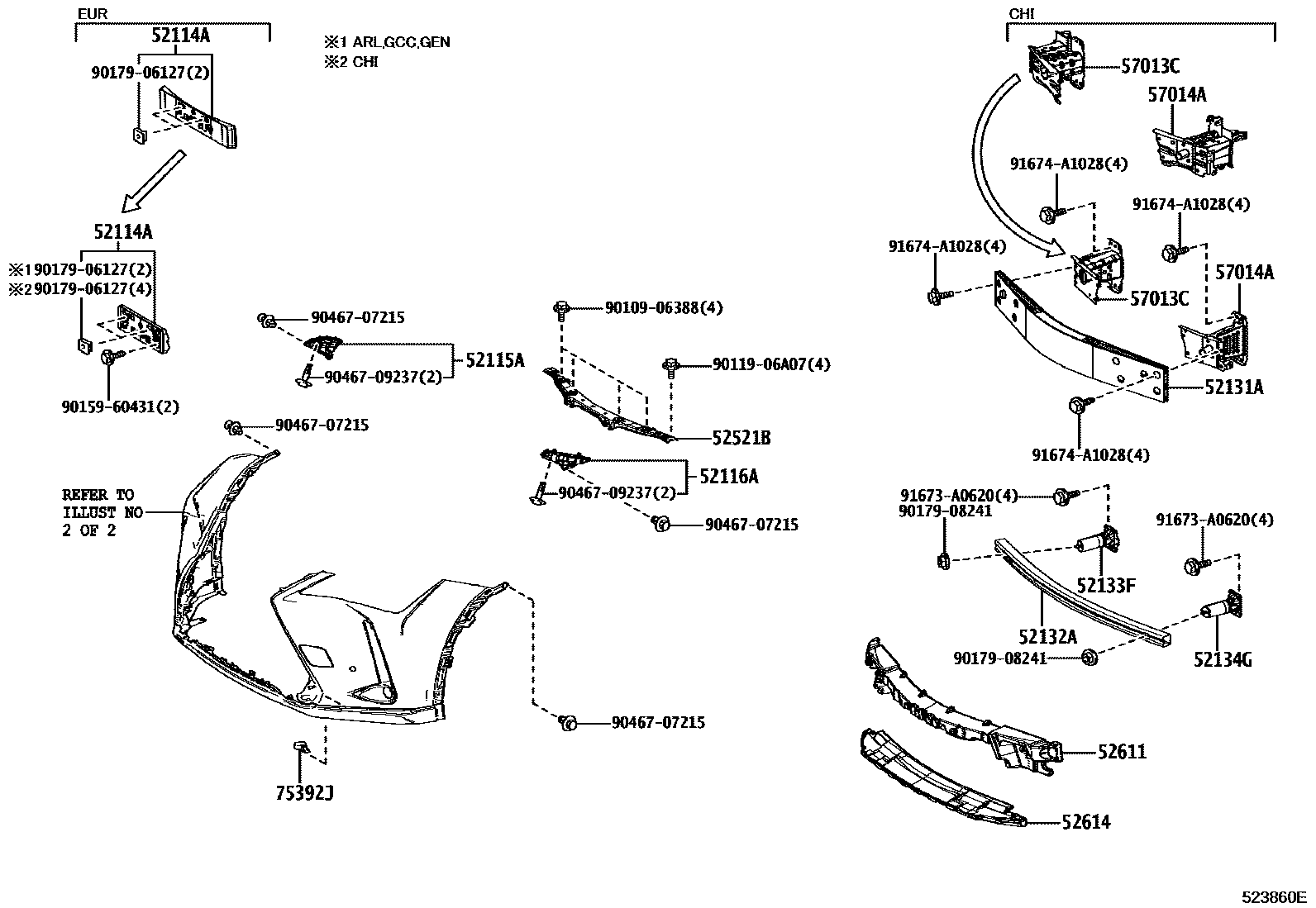

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1F SPORT 0004 1F SPORT

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-76250iMZAA10,MZAH10..GCC201810-202207

main52114-76260iMZAA10,MZAH1#..ARL,EUR,GEN201810-202207

main52114-76270iMZAA10,MZAH1#..CHI201812-202207

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-76020iMZAA10,MZAH1#201810-202207

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-76020iMZAA10,MZAH1#201810-202207

52131AREINFORCEMENT, FRONT BUMPER

main52131-76050iMZAA10,MZAH1#201810-202207

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-76030iMZAA10,MZAH1#201810-202207

52133FBRACKET, FRONT BUMPER, RH

main52133-12190iMZAA10,MZAH1#201810-202207

52134GBRACKET, FRONT BUMPER, LH

main52133-12190iMZAA10,MZAH1#201810-202207

52521BRETAINER, FRONT BUMPER, UPPER

main52521-76010iMZAA10,MZAH1#201810-202207

52611ABSORBER, FRONT BUMPER ENERGY

main52611-76080iMZAA10,MZAH1#201810-202207

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-76010iMZAA10,MZAH1#201810-202003

main52614-76020iMZAA10,MZAH1#202003-202207

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-76030iMZAA10,MZAH1#..CHI201812-202207

main57013-76040iMZAA10,MZAH1#..ARL,EUR,GCC,GEN201810-202207

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-76030iMZAA10,MZAH1#..CHI201812-202207

main57014-76040iMZAA10,MZAH1#..ARL,EUR,GCC,GEN201810-202207

75392JRETAINER, OUTSIDE MOULDING

main75392-35220iMZAA10,MZAH1#201810-202207

9010906388

main90109-06388

9011906A07

main90119-06A07

9015960431

main90159-60431

9017906127

main90179-06127

9017908241

main90179-08241

9046707215

main90467-07215

9046709237

main90467-09237

91673A0620

main91673-A0620

91674A1028

main91674-A1028

22 parts on this diagram · 4 diagrams in section
