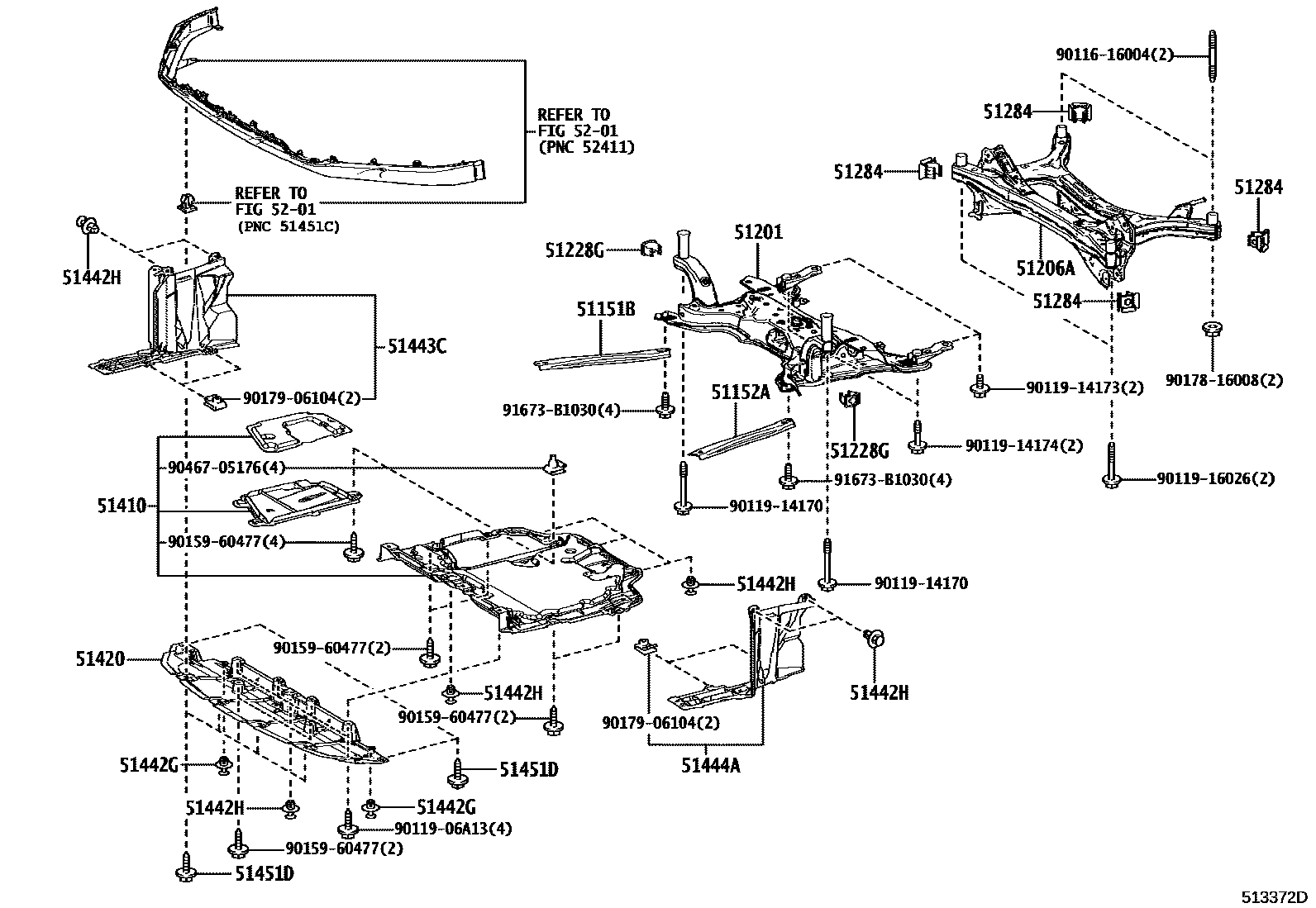

SUSPENSION CROSSMEMBER & UNDER COVER

51151BREINFORCEMENT, SIDE RAIL, NO.1 RH

main51151-10010iMZAA10,MZAH1#201810-202207

51152AREINFORCEMENT, SIDE RAIL, NO.1 LH

main51151-10010iMZAA10,MZAH1#201810-202207

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-76030iMZAA10,MZAH1#201810-201902

sub51201-76031

main51201-76031iMZAA10,MZAH1#201903-202111

sub51201-76032

main51201-76032iMZAA10,MZAH1#202112-202207

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-76010iMZAA10,MZAH10201810-202207

sub51206-76011

main51206-76020iMZAH15201811-202203

sub51206-76021

main51206-76021iMZAH15202204-202207

sub51206-76022

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-47010iMZAA10,MZAH1#201810-202207

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010iMZAA10,MZAH1#201810-202207

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-76070iMZAA10,MZAH1#201810-202108

sub51410-76100

main51410-76100iMZAA10,MZAH1#202108-202207

51420COVER ASSY, ENGINE UNDER, NO.2

main51420-76010iMZAA10,MZAH1#201810-202207

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-07214iMZAA10,MZAH1#201810-202207

51442HCLIP, ENGINE UNDER COVER, NO.2

main90467-07220iMZAA10,MZAH1#201810-202207

51443CCOVER, ENGINE UNDER, REAR RH

main51443-10020iMZAA10,MZAH1#201810-202207

51444ACOVER, ENGINE UNDER, REAR LH

main51444-10020iMZAA10,MZAH1#201810-202207

51451DSCREW, NO.1

main90159-60477iMZAA10,MZAH1#201810-202207

5201

9011616004

main90116-16004

9011906A13

main90119-06A13

9011914170

main90119-14170

9011914173

main90119-14173

9011914174

main90119-14174

9011916026

main90119-16026

9015960477

main90159-60477

9017816008

main90178-16008

9017906104

main90179-06104

9046705176

main90467-05176

91673B1030

main91673-B1030

25 parts on this diagram · 1 diagram in section
