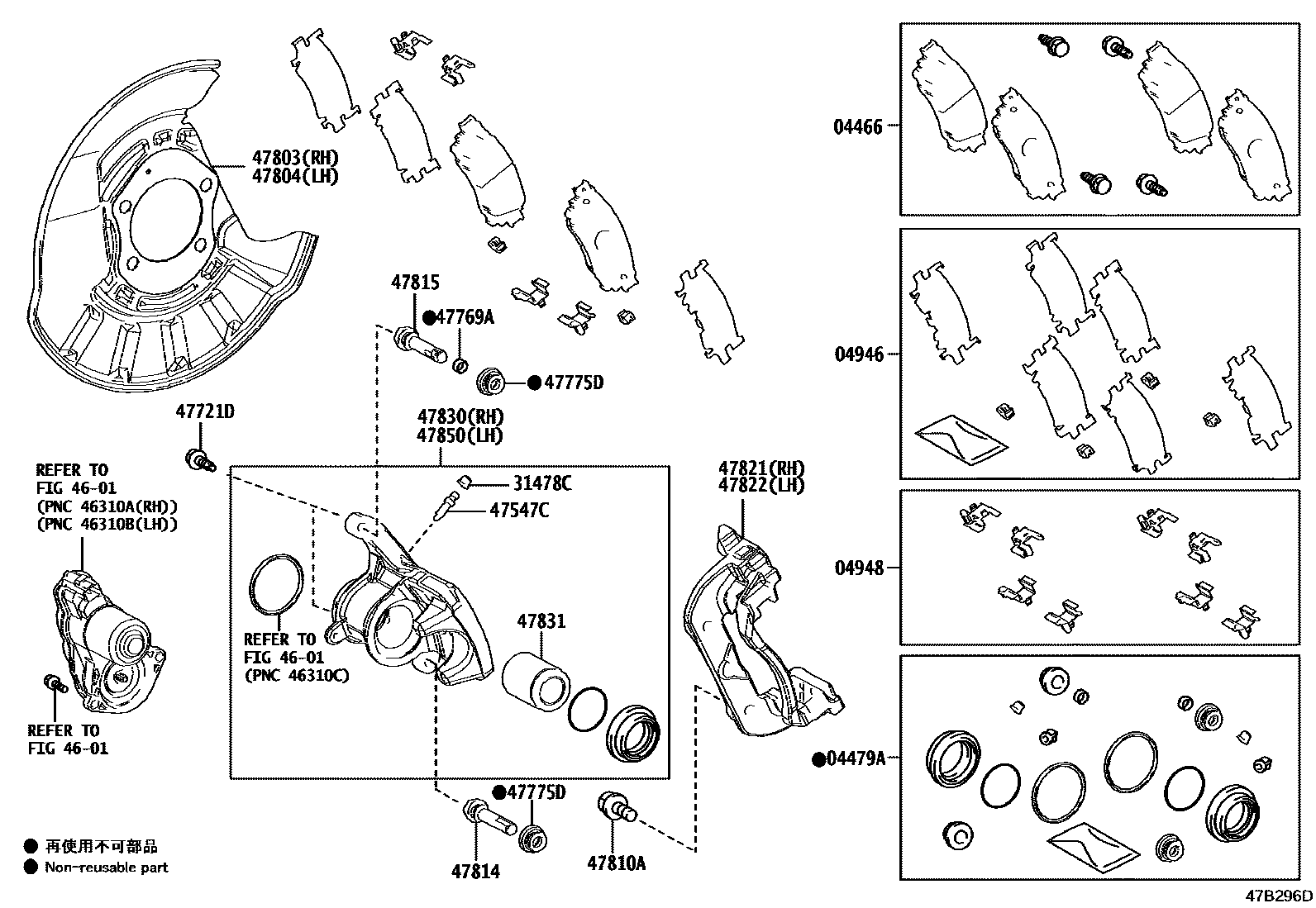

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-33230iMZAA10,MZAH1#201810-202207

MARK AK NS554

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-33390iMZAA10,MZAH1#201810-202207

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-33090iMZAA10,MZAH1#201810-202207

04948FITTING KIT, DISC BRAKE, REAR

main04948-33060iMZAA10,MZAH1#201810-202207

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iMZAA10,MZAH1#201810-202207

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iMZAA10,MZAH1#201810-202207

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iMZAA10,MZAH1#201810-202207

*8-1.00PX23-12.5

sub90016-AA614

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iMZAA10,MZAH1#201810-202207

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iMZAA10,MZAH1#201810-202207

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-33010iMZAA10,MZAH1#201810-202207

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-33010iMZAA10,MZAH1#201810-202207

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12208iMZAA10,MZAH1#201810-202207

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iMZAA10,MZAH1#201810-202207

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iMZAA10,MZAH1#201810-202207

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-10030iMZAA10,MZAH1#201810-202207

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-10030iMZAA10,MZAH1#201810-202207

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-33270iMZAA10,MZAH1#201810-202207

47831PISTON, REAR DISC BRAKE

main47831-78010iMZAA10,MZAH1#201810-202207

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-33270iMZAA10,MZAH1#201810-202207

20 parts on this diagram · 1 diagram in section
