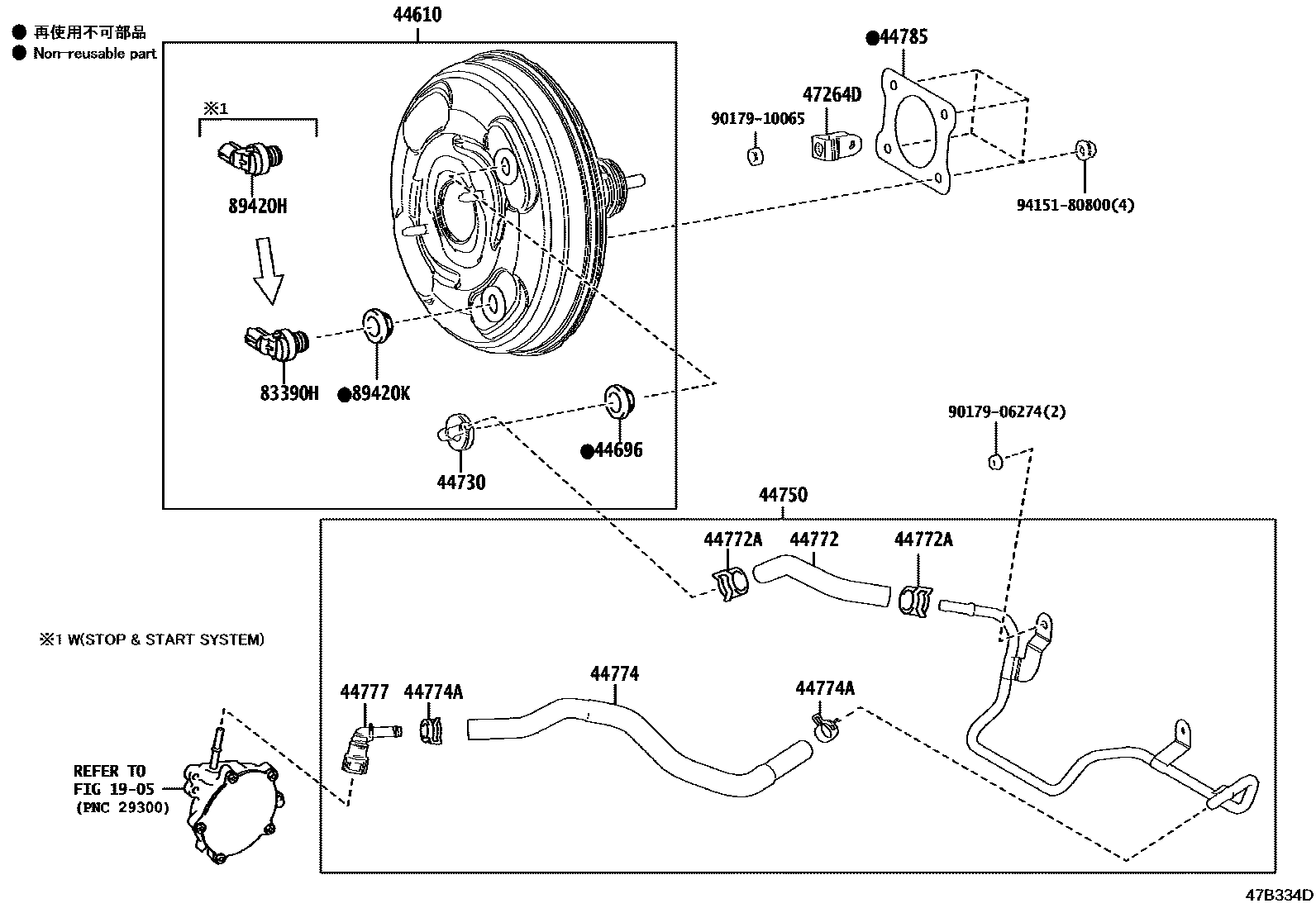

BRAKE BOOSTER & VACUUM TUBE
1905
44610BOOSTER ASSY, BRAKE
RUSSIA SPEC
UKRAINE SPEC
ISRAEL SPEC
KAZAKHSTAN SPEC
AZERBAIJAN, ARMENIA, GEORGIA SPEC
DOMINICA, PERU SPEC&EXHAUST EMISSION CONTROL-EURO 5
PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-EURO 5
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44750HOSE ASSY, VACUUM
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
44774HOSE, UNION TO CONNECTOR TUBE
44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44777CONNECTOR, VACUUM HOSE, NO.1
44785GASKET, BRAKE BOOSTER
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
83390HSWITCH ASSY, VACUUM WARNING
EXHAUST EMISSION CONTROL-EURO 5
89420HSENSOR ASSY, VACUUM
EXHAUST EMISSION CONTROL-EURO 5
9017906274
main90179-06274
9017910065
main90179-10065
9415180800
main94151-80800
18 parts on this diagram · 2 diagrams in section
