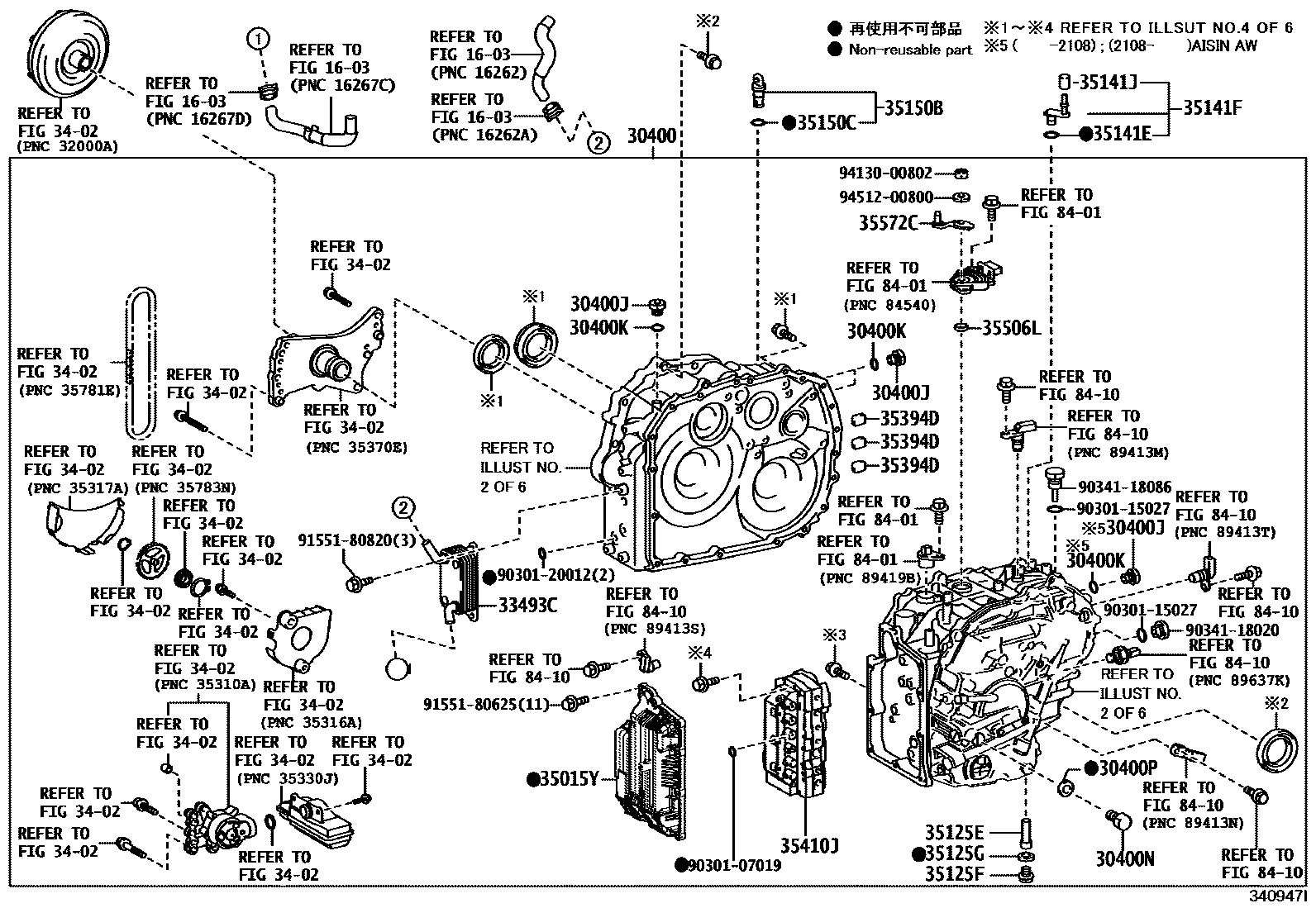

TRANSAXLE ASSY(CVT)

0001 1K120 0002 1K120 0003 1K120 0004 1K120 0005 1K120 0006 1K120

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-10080iMZAA10..ARL,CHI,EUR,GEN201810-202108

K120,TOYOTA:REF.ILLUST

main30400-16010iMZAA10..GCC202108-202207

K120,EXHAUST EMISSION CONTROL-EURO 5,TOYOTA:REF.ILLUST

main30400-16010iMZAA10..GCC202108-202207

K120,TOYOTA:REF.ILLUST

main30400-16020iMZAA10..ARL,CHI,EUR,GEN202108-202207

K120,TOYOTA:REF.ILLUST

main30400-76010iMZAA10..GCC202108-202207

K120,EXHAUST EMISSION CONTROL-EURO 5,AISIN AW:REF.ILLUST

main30400-76010iMZAA10..GCC202108-202207

K120,AISIN AW:REF.ILLUST

main30400-76020iMZAA10..GCC201810-202108

K120,EXHAUST EMISSION CONTROL-EURO 5,TOYOTA:REF.ILLUST

main30400-76020iMZAA10..GCC201810-202108

K120,TOYOTA:REF.ILLUST

main30400-76030iMZAA10..GEN201904-202108

K120,EXHAUST EMISSION CONTROL-EURO 5,AISIN AW:REF.ILLUST

main30400-76030iMZAA10..GCC201904-202108

K120,AISIN AW:REF.ILLUST

main30400-76040iMZAA10..ARL,CHI,EUR,GEN201904-202108

K120,AISIN AW:REF.ILLUST

main30400-76050iMZAA10..ARL,CHI,EUR,GEN202108-202207

K120,AISIN AW:REF.ILLUST

30400JPLUG, TRANSAXLE HOLE

main90341-08001iMZAA10201810-202207

TOYOTA:REF.ILLUST

main90341-08001iMZAA10201904-202207

AISIN AW:REF.ILLUST

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196iMZAA10201904-202207

AISIN AW:REF.ILLUST

main90301-06196iMZAA10201810-202207

TOYOTA:REF.ILLUST

30400NPLUG, REFILL(CVT)

main90341-18077iMZAA10201810-202207

TOYOTA:REF.ILLUST

main90341-18077iMZAA10201904-202207

AISIN AW:REF.ILLUST

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iMZAA10201810-202207

TOYOTA:REF.ILLUST

main90430-18008iMZAA10201904-202207

AISIN AW:REF.ILLUST

33493CCOOLER, TRANSMISSION OIL

main33493-12090iMZAA10201810-202207

3402

35015YCOVER SUB-ASSY, TRANSAXLE SIDE

main35015-12010iMZAA10201810-202205

TOYOTA:REF.ILLUST

main35015-12020iMZAA10201904-202205

AISIN AW:REF.ILLUST

main35015-33010iMZAA10202206-202207

AISIN AW:REF.ILLUST

main35015-42010iMZAA10202206-202207

TOYOTA:REF.ILLUST

35125ETUBE, OVERFLOW(CVT)

main35125-12500iMZAA10201810-202207

TOYOTA:REF.ILLUST

main35125-12500iMZAA10201904-202207

AISIN AW:REF.ILLUST

35125FPLUG, OVERFLOW(CVT)

main90341-18016iMZAA10201810-202207

TOYOTA:REF.ILLUST

main90341-18016iMZAA10201904-202207

AISIN AW:REF.ILLUST

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-18008iMZAA10201810-202207

TOYOTA:REF.ILLUST

main90430-18008iMZAA10201904-202207

AISIN AW:REF.ILLUST

35141ERING, O(FOR BREATHER PLUG)

main90301-09173iMZAA10201810-202207

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03240iMZAA10201810-202207

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03243iMZAA10201810-202207

35150BPLUG ASSY, TRANSMISSION CASE

main35150-48010iMZAA10201810-202207

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iMZAA10201810-202207

35394DMAGNET, OIL CLEANER(CVT)

main35394-48010iMZAA10201810-202207

TOYOTA:REF.ILLUST

main35394-48010iMZAA10201904-202207

AISIN AW:REF.ILLUST

35410JBODY ASSY, TRANSMISSION VALVE

main35410-12880iMZAA10201810-202005

TOYOTA:REF.ILLUST

sub35410-12881

main35410-12881iMZAA10202006-202207

TOYOTA:REF.ILLUST

main35410-12A30iMZAA10201904-202006

AISIN AW:REF.ILLUST

sub35410-K0010

main35410-52290iMZAA10..GEN202006-202207

AISIN AW:REF.ILLUST

main35410-52290iMZAA10..GCC202006-202207

EXHAUST EMISSION CONTROL-EURO 5,AISIN AW:REF.ILLUST

main35410-K0010iMZAA10..ARL,CHI,EUR,GEN202006-202207

AISIN AW:REF.ILLUST

35506LSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iMZAA10201810-202207

TOYOTA:REF.ILLUST

main90311-12002iMZAA10201904-202207

AISIN AW:REF.ILLUST

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12190iMZAA10201810-202207

TOYOTA:REF.ILLUST

main35572-12190iMZAA10201904-202207

AISIN AW:REF.ILLUST

8401

8410

9030107019

main90301-07019

9030115027

main90301-15027

9030120012

main90301-20012

9034118020

main90341-18020

9034118086

main90341-18086

9155180625

main91551-80625

9155180820

main91551-80820

9413000802

main94130-00802

9451200800

main94512-00800
