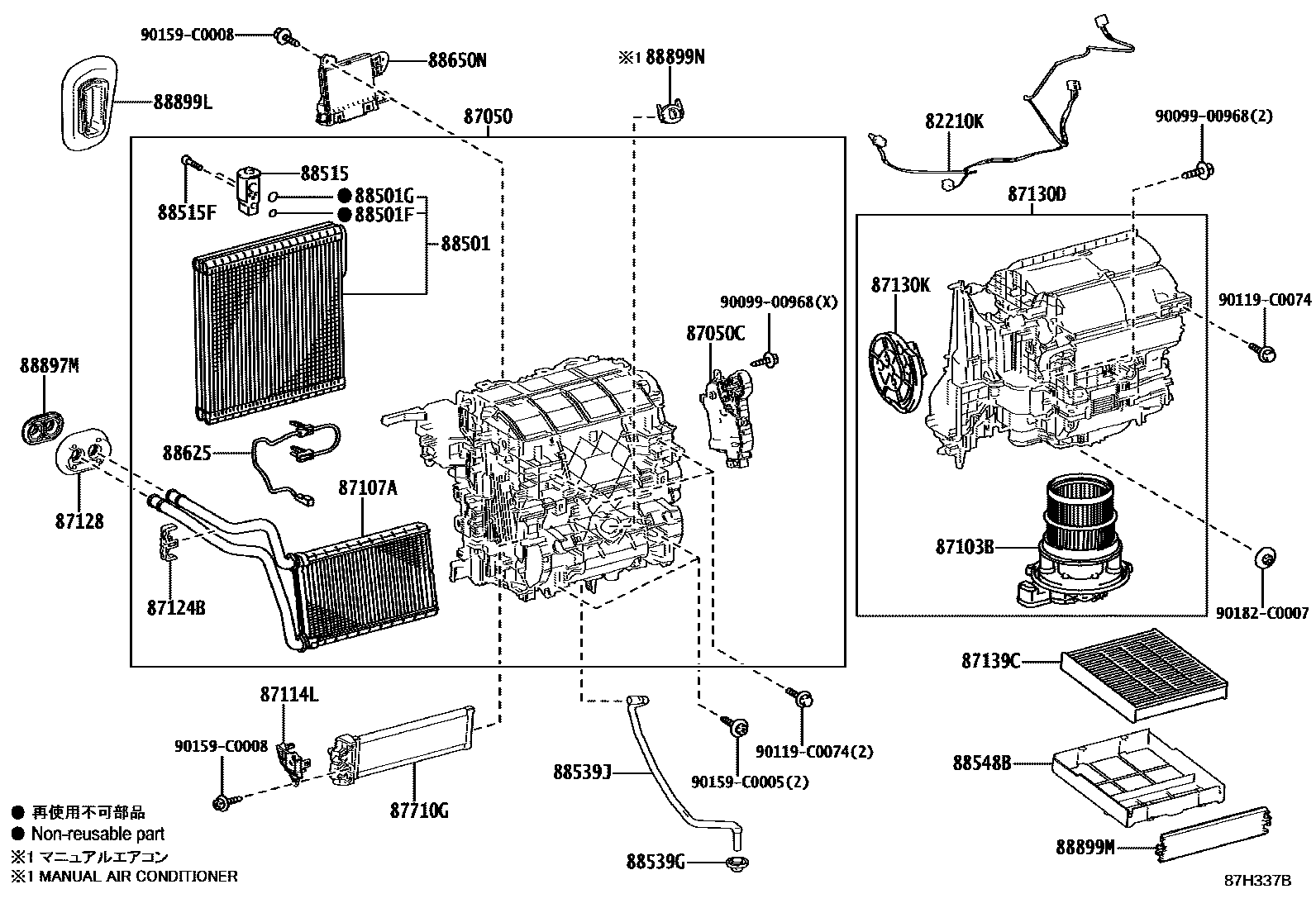

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-F4050iMAXA10..E201808

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0Z190iMAXA10..D,N202007-202106

main87050-F4090iMAXA10..E,G201808-202007

main87050-F4170iMAXA10..D,N201808-202007

main87050-F4220iMAXH10202106

main87050-F4250iMAXA10..G202007-202106

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-06370iMAXA10..E201808

main87106-F4140iMAXA10..D,N201808-202106

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-06130iMAXA10..D,G,N201808-202106

main87103-0R050iMAXH10;MAXA10..D,G,N202106

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-F4050iMAXA10..D,G,N201808-202106

87114LCOVER, HEATER, NO.2

main87114-06050iMAXA10201808-201910

87124BCLAMP, HEATER

main87124-06110iMAXA10..D,G,N201808-202106

87128GROMMET, HEATER

main87128-F4070iMAXA10..D,G,N201808-202106

87130DBLOWER ASSY

main87130-06420iMAXA10..D,G,N201808-202106

main87130-0R070iMAXH10;MAXA10..D,G,N202106

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-06390iMAXA10..D,G,N201808-202106

87139CFILTER, CLEAN AIR

main87139-02270iMAXH10;MAXA10..D,G,N202106-202304

STANDARD,OE PART

main87139-06150iMAXA10201808-202104

STANDARD,OE PART

main87139-06170iMAXH10;MAXA10..D,G,N202305

STANDARD,OE PART

main87139-58010iMAXA10201808

DEODORANT FILTER

87710GQUICK HEATER ASSY

main87710-48020iMAXA10201808-201910

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02420iMAXA10..D,G,N202106

main88501-F4070iMAXA10201808-202007

main88501-F4140iMAXH10202106

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iMAXA10..D,G,N201808-202106

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iMAXA10..E201808

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-06150iMAXA10..E202007

main88515-06180iMAXA10201808-202007

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iMAXA10..D,G,N201808-202106

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-06030iMAXA10..D,G,N201808-202106

88539JHOSE, DRAIN COOLER

main88539-F4080iMAXA10..D,G,N201808-202106

88548BCASE, AIR FILTER

main88899-02490iMAXA10202104

main88899-02491iMAXH10;MAXA10..D,G,N202305

main88899-06160iMAXA10201808-202104

88625THERMISTOR, COOLER, NO.1

main88620-06070iMAXA10201808-202007

main88620-06080iMAXA10..E202007

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-F4110iMAXA10..D,N201808-202009

main88650-F4111iMAXA10..D,N202009-202106

main88650-F4130iMAXA10..E,G201808-202007

main88650-F4131iMAXA10..E202007

main88650-F4240iMAXA10..D,G,N202106-202303

main88650-F4300iMAXH10202106

main88650-F4350iMAXA10..D,G,N202303

88897MGROMMET (FOR HEATER PIPE)

main87128-0A040iMAXH10;MAXA10..D,G,N202204

(L)

main87128-28010iMAXA10..E201808

88899LPARTS, COOLING UNIT

main88899-02390iMAXA10201808-202007

(L)

main88899-47070iMAXA10201808-202007

(J)

main88899-F4340iMAXA10202007

88899MPLATE, COVER(FOR AIR FILTER)

main88899-06110iMAXA10..D,G,N201808-202106

88899NPLATE, COVER

main88899-F4380iMAXA10..D,N201808-202106

9009900968

main90099-00968

90119C0074

main90119-C0074

90159C0005

main90159-C0005

90159C0008

main90159-C0008

90182C0007

main90182-C0007

31 parts on this diagram · 3 diagrams in section
