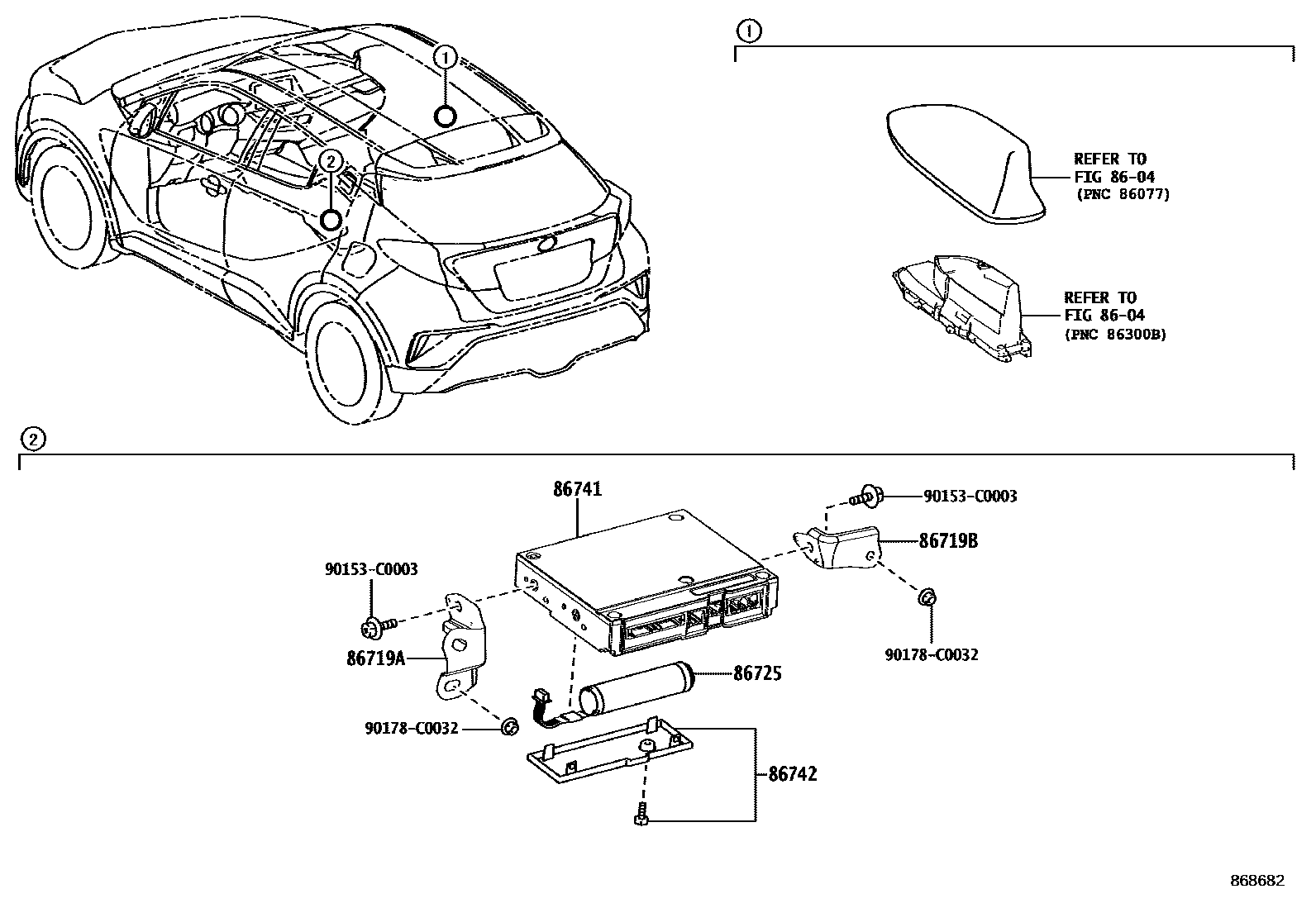

TELEPHONE & MAYDAY

8604

86719ABRACKET, TELEPHONE NO.1

main86719-F4030iMAXH10;MAXA10..D,G,N202106

86719BBRACKET, TELEPHONE NO.2

main86719-F4040iMAXH10;MAXA10..D,G,N202106

86725BATTERY, MOBILEPHONE

main86725-F4010iMAXH10;MAXA10..D,G,N202106

86741TRANSCEIVER, TELEPHONE

main86741-06100iMAXH10;MAXA10..D,G,N202106-202302

main86741-F4060iMAXH10;MAXA10..D,G,N202303

86742COVER, TRANSCEIVER

main86742-0A010iMAXH10;MAXA10..D,G,N202303

main86742-F4010iMAXH10;MAXA10..D,G,N202106-202303

sub86742-0A010

90153C0003

main90153-C0003

90178C0032

main90178-C0032

8 parts on this diagram · 1 diagram in section
