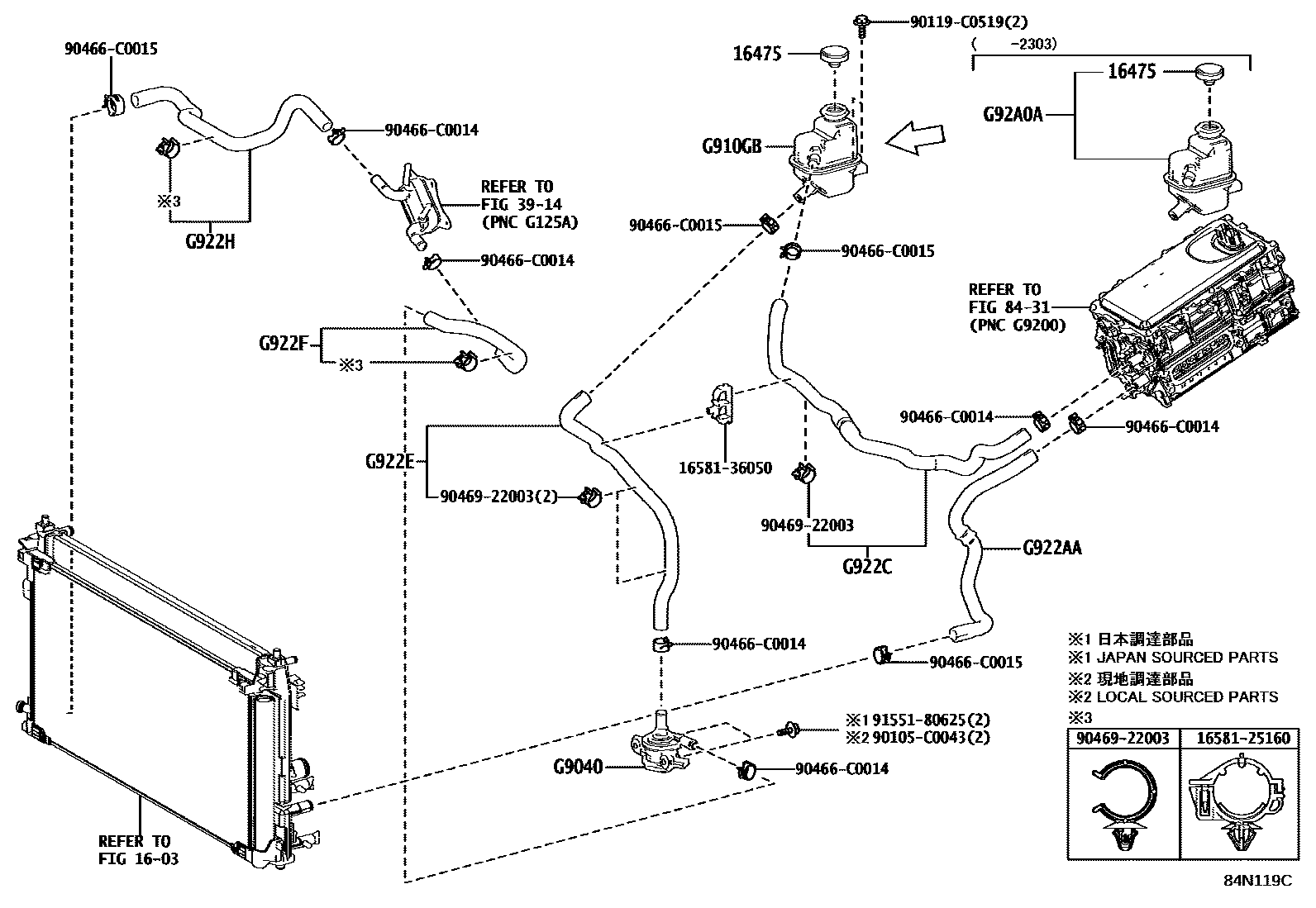

INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-0T081iM20..MAXH10202303

(L)

main16475-28140iM20..MAXH10202303

(J)

main16475-28140iM20..MAXH10202106-202303

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904007020iMAXH10202303

LOCAL SOURCED PARTS

mainG904028020iMAXH10202303-202401

JAPAN SOURCED PARTS

subG9040-48060

mainG904033050iMAXH10202106-202302

JAPAN SOURCED PARTS

mainG9040F4020iMAXH10202106-202302

LOCAL SOURCED PARTS

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910GF4010iMAXH10202303

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922AF4050iMAXH10202106

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922CF4050iMAXH10202106

G922EHOSE, HYBRID WATER PUMP INLET

mainG922EF4050iMAXH10202106

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F76010iMAXH10202203

mainG922FF4050iMAXH10202106-202203

G922HHOSE, HYBRID RADIATOR INLET

mainG922H76010iMAXH10202203

mainG922HF4020iMAXH10202106-202203

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H0F4070iMAXH10202106-202303

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

1658136050CLAMP, HOSE(FOR WATER HOSE)

main16581-36050

90105C0043

main90105-C0043

90119C0519

main90119-C0519

90466C0014

main90466-C0014

90466C0015

main90466-C0015

9046922003

main90469-22003

9155180625

main91551-80625

18 parts on this diagram · 1 diagram in section
