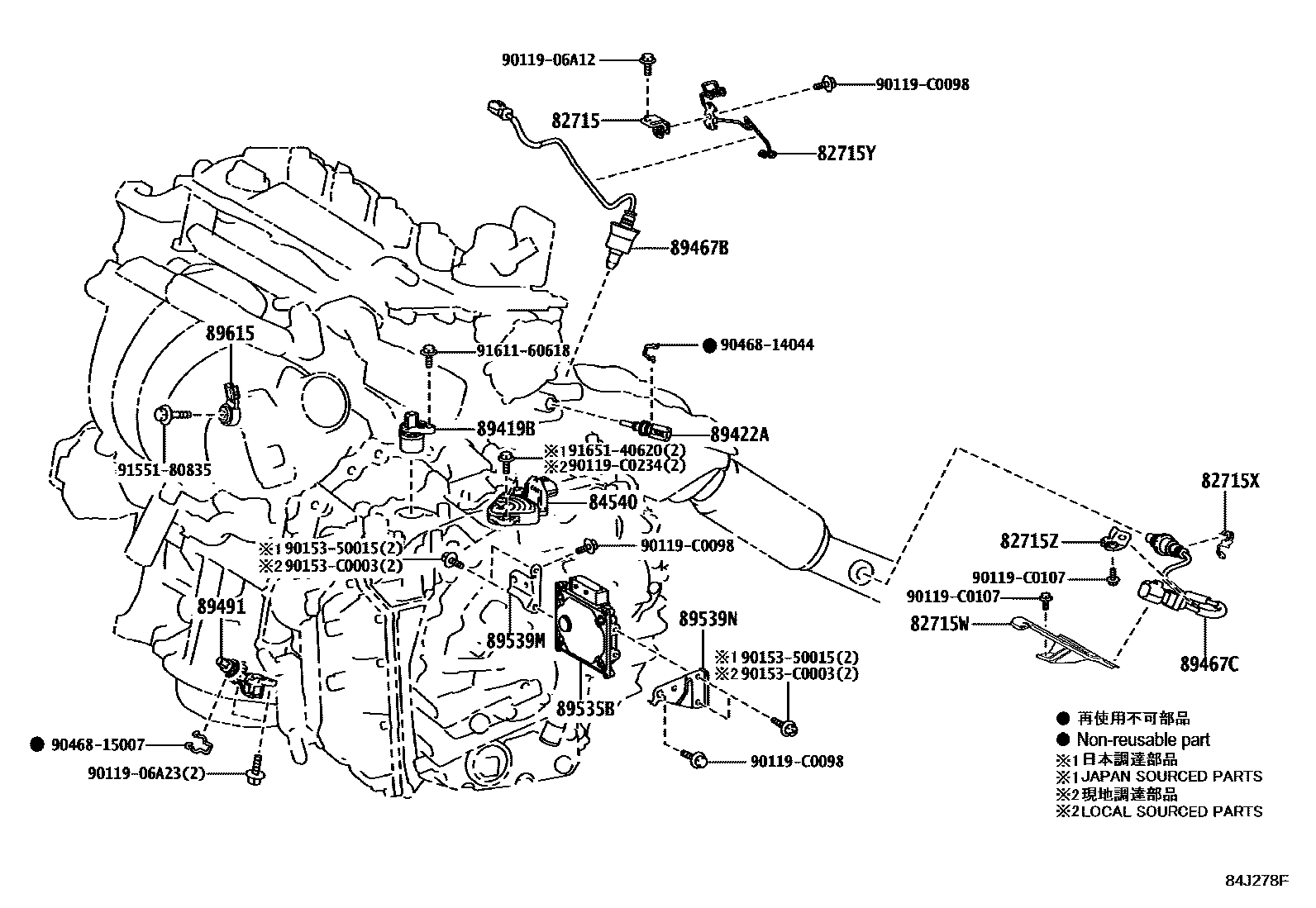

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM RELAY BLOCK 0007 1ENGINE ROOM RELAY BLOCK 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1STEERING 0012 1SEAT 0013 1DOOR & ROOF 0014 1FLOOR & BACK DOOR 1/2 0015 1FLOOR & BACK DOOR 2/2

82715BRACKET,WIRING HARNESS CLAMP

main82715-12X50iMAXA10..D,G,N202111

(J)

main82715-12X50iMAXA10..D,G,N201808-202106

main82715-F4650iMAXA10..D,G,N202106-202111

main82715-F4650iMAXA10..D,G,N202111

(L)

82715WBRACKET, WIRING HARNESS CLAMP

main82715-F4350iMAXA10..D,G,N201808-202106

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-44510iMAXA10201808-202009

main82729-20040iMAXA10..D,G,N202009-202106

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-F4340iMAXA10..D,G,N201808-202106

main8946A-F4020iMAXH10202106

82715ZBRACKET, WIRING HARNESS CLAMP

main82715-F4360iMAXA10..D,G,N201808-202303

main8946A-0A120iMAXH10;MAXA10..D,G,N202303

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMAXA10..D,G,N201808-202303

89419BSENSOR, SHIFT STROKE

main89419-0E010iMAXA10..D,G,N202106-202303

main89419-0R010iMAXA10..D,G,N202303

(L)

main89419-12010iMAXA10201808-201904

sub89419-12011

main89419-12011iMAXA10202104-202106

MARK=CS1

main89419-12011iMAXA10201905-202105

main89419-K2010iMAXA10..E202106

MARK=HK-82

main89419-K2010iMAXA10..D,G,N202303

(J)

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMAXA10201808

89467BSENSOR, AIR FUEL RATIO

main89467-0R160iMAXH10;MAXA10..D,G,N202303

main89467-F4010iMAXA10..D,G,N201808-202303

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0A050iMAXA10..D,G,N202303

main89467-F4020iMAXH10;MAXA10..D,G,N201808-202303

main89467-F4080iMAXH10202303

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iMAXA10201808-202303

sub89491-33052

main89491-33052iMAXH10202205

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-10010iMAXA10201808-202011

sub89535-F4020

main89535-10020iMAXA10201808-202011

EXHAUST EMISSION CONTROL-CHINA 6B,WITH(ON BOARD DIAGNOSIS)

sub89535-F4030

main89535-F4010iMAXA10..D,G,N202106-202303

main89535-F4020iMAXA10..E202012-202106

main89535-F4030iMAXA10..E202012-202106

EXHAUST EMISSION CONTROL-CHINA 6B,WITH(ON BOARD DIAGNOSIS)

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-12070iMAXA10201808-202011

main89539-12070iMAXA10..D,G,N202208-202303

(J)

main89539-F4050iMAXA10..E202012-202208

main89539-F4050iMAXA10..D,G,N202208-202303

(L)

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-12080iMAXA10..D,G,N202208-202303

(J)

main89539-12080iMAXA10201808-202011

main89539-F4060iMAXA10..D,G,N202208-202303

(L)

main89539-F4060iMAXA10..D,G,N202012-202208

89615SENSOR, KNOCK CONTROL

main89615-20090iMAXA10201808

9011906A12

main90119-06A12

9011906A23

main90119-06A23

90119C0098

main90119-C0098

90119C0107

main90119-C0107

90119C0234

main90119-C0234

9015350015

main90153-50015

90153C0003

main90153-C0003

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9161160618

main91611-60618

9165140620

main91651-40620

27 parts on this diagram · 15 diagrams in section
