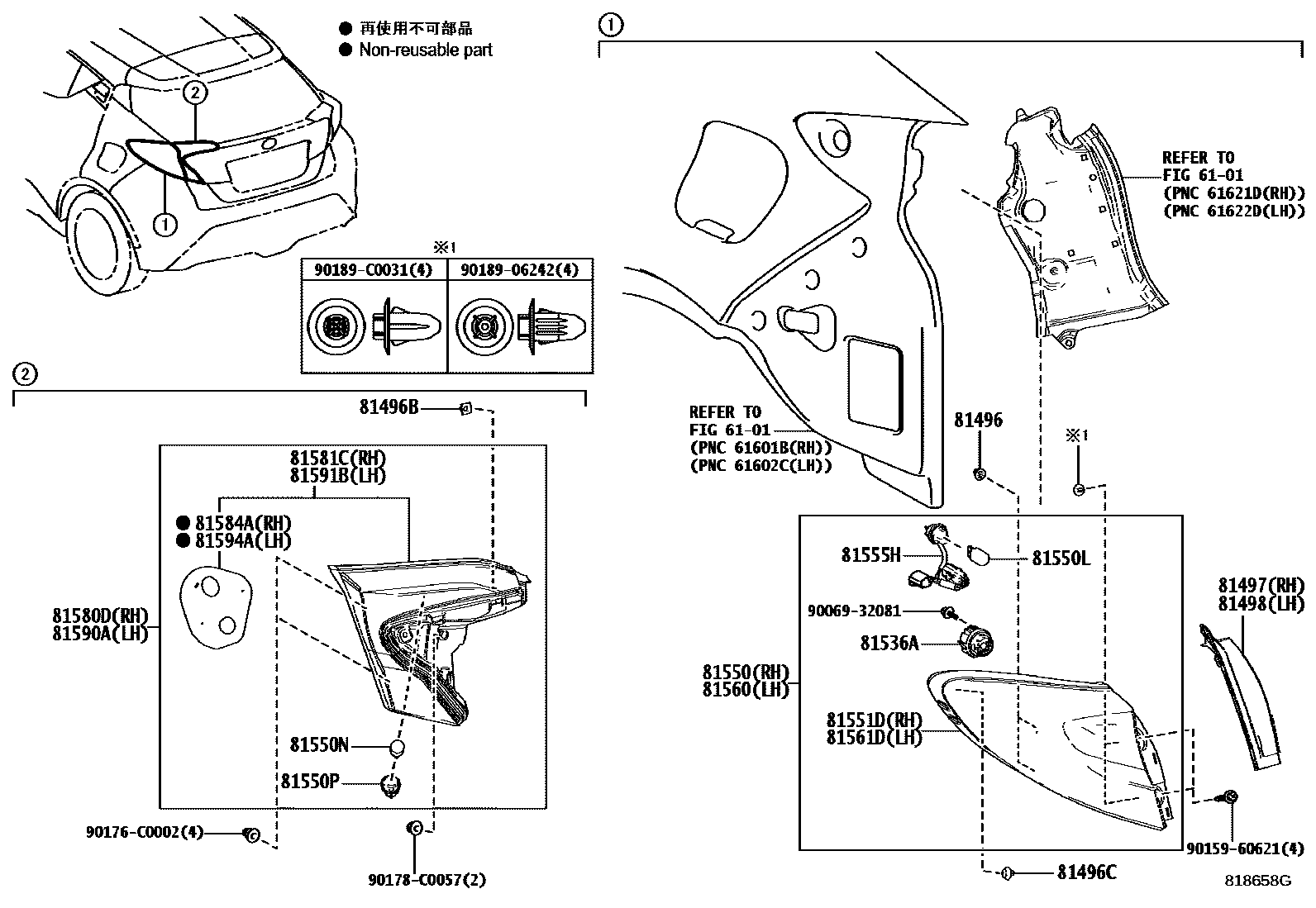

REAR COMBINATION LAMP

0001 1 0002 1 0004 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-0D030×4iMAXA10..D,G,N201808-202106

main81496-52020×4iMAXA10..G;MAXH10..E,G202106

(J)

81496BGUIDE, REAR LAMP

main76817-26040×2iMAXA10..D,G,N201808-202106

main90467-C0083×2iMAXH10;MAXA10..D,G,N202112

(L)

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010×2iMAXA10..G;MAXH10..E,G202106

(J)

main90467-C0019×2iMAXA10..E201808

81497COVER, REAR COMBINATION LAMP, RH

main81497-F4040iMAXA10..D,G,N201808-202106

81498COVER, REAR COMBINATION LAMP, LH

main81498-F4040iMAXA10..D,G,N201808-202106

81536ALED, REAR COMBINATION LAMP

main81536-F4080×2iMAXA10,MAXH10..D,N202106

81550LAMP ASSY, REAR COMBINATION, RH

main81550-F4100iMAXA10..D,N201808-201908

main81550-F4101iMAXA10..D,N201909-202106

main81550-F4110iMAXA10..E201808

main81550-F4180iMAXA10..G;MAXH10..E,G202106

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15029×2iMAXA10,MAXH10..D,N202106

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059×2iMAXA10..D,N201808-202106

12V 16W

81550PSOCKET, BACK UP LAMP

main90069-81119×2iMAXA10..D,N201808-202106

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-F4100iMAXA10..D,N201808-201909

main81551-F4101iMAXA10..D,N201909-202106

81555HSOCKET & WIRE, REAR COMBINATION LAMP

main81555-F4080×2iMAXA10..D,N201808-202106

81560LAMP ASSY, REAR COMBINATION, LH

main81560-F4100iMAXA10..D,N201808-201908

main81560-F4101iMAXA10..D,N201909-202106

main81560-F4110iMAXA10..G201808-202106

main81560-F4180iMAXA10..G;MAXH10..E,G202106

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-F4100iMAXA10..D,N201808-201909

main81561-F4101iMAXA10..D,N201909-202106

81580DLAMP ASSY, REAR, RH

main81580-F4070iMAXA10..D,N201808-201908

main81580-F4071iMAXA10,MAXH10..D,N202106

main81580-F4080iMAXA10..E201808

main81580-F4180iMAXA10..G;MAXH10..E,G202106

81581CLENS AND BODY, REAR LAMP, RH

main81581-F4070iMAXA10..D,N201808-201909

main81581-F4071iMAXA10..D,N201909-202106

81584AGASKET, REAR LAMP RH

main81584-F4050iMAXA10..D,N201808-202106

main81584-F4060iMAXA10..E201808

main81584-F4180iMAXA10..G;MAXH10..E,G202106

81590ALAMP ASSY, REAR, LH

main81590-F4070iMAXA10..D,N201808-201908

main81590-F4071iMAXA10,MAXH10..D,N202106

main81590-F4080iMAXA10..E201808

main81590-F4180iMAXA10..G;MAXH10..E,G202106

81591BLENS AND BODY, REAR LAMP, LH

main81591-F4070iMAXA10..D,N201808-201909

main81591-F4071iMAXA10..D,N201909-202106

81594AGASKET, REAR LAMP LH

main81594-F4050iMAXA10..D,N201808-202106

main81594-F4060iMAXA10..E201808

main81594-F4180iMAXA10..G;MAXH10..E,G202106

9006932081

main90069-32081

9015960621

main90159-60621

90176C0002

main90176-C0002

90178C0057

main90178-C0057

9018906242

main90189-06242

90189C0031

main90189-C0031

27 parts on this diagram · 3 diagrams in section
