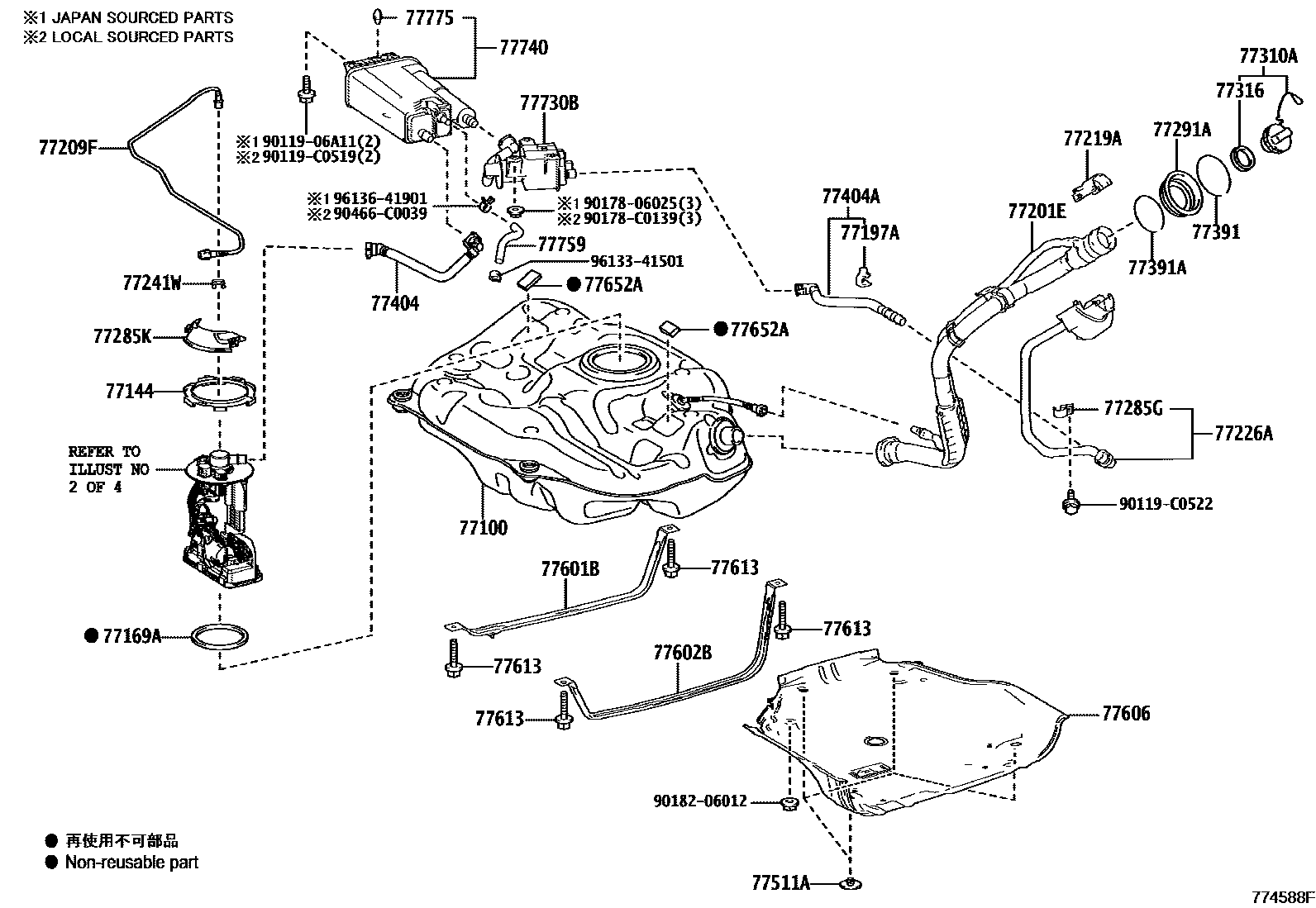

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL PUMP 0003 1FUEL TUBE 0004 1FUEL TANK 0005 1FUEL PUMP 0006 1FUEL TUBE 0007 1FUEL LID OPENER

77100TANK ASSY, FUEL

main77001-02B60iMAXH10202106

main77001-F4080iMAXA10..D,G,N201808-202106

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMAXA10..D,G,N201808-202106

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02130iMAXA10..D,G,N202109-202402

main77169-02130iMAXA10..D,G,N202306

(L)

main77169-0K030iMAXA10202009-202109

(L)

main77169-47030iMAXA10202009-202109

(J)

main77169-47040iMAXA10201808-202008

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-06100iMAXH10;MAXA10..D,G,N201812-202106

main77197-47010iMAXA10201808-201811

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-F4060iMAXA10..D,G,N201808-202106

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02370iMAXH10202106

main77209-F4090iMAXA10..E201808-202106

77219ACOVER, FUEL TANK FILLER PIPE

main77219-0D110iMAXA10201808-201811

main77219-0D130iMAXA10..D,G,N201812-202106

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-F4060iMAXH10;MAXA10..D,G,N201808-202106

77241WCLIP, TUBE JOINT

main77241-02020iMAXH10202109-202311

main77241-33011iMAXH10201808-202108

77285GCLAMP, FUEL TUBE, NO.1

main77285-06580iMAXH10;MAXA10..D,G,N201808-202106

77285KCLAMP, FUEL TUBE, NO.1

main77285-02230iMAXA10..D,G,N202205

(L)

main77285-10060iMAXA10..D,G,N201808-202205

main77285-10060iMAXA10..D,G,N202205

(J)

main77285-30350iMAXH10202106

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-F4040iMAXA10201808-202001

main77291-F4041iMAXA10..D,G,N202002-202106

77310ACAP ASSY, FUEL TANK

main77300-06100iMAXA10201808-202011

main77300-06110iMAXH10202106

main77300-0R010iMAXA10..E202012-202106

77316GASKET, FUEL TANK CAP

main77316-0F020iMAXA10..D,G,N202012-202106

main77316-75020iMAXH10201808-202012

77391RING, FUEL INLET BOX

main77391-75010iMAXA10..D,G,N202011-202106

(J)

main77391-75010iMAXA10201808-202011

main77391-F4050iMAXA10..E202011-202106

(L)

77391ARING, FUEL INLET BOX

main77391-0R080iMAXA10..D,G,N202006-202106

(L)

main77391-12020iMAXA10..D,G,N202006-202106

(J)

main77391-12020iMAXA10201808-202006

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-12090iMAXH10202106

main77404-F4080iMAXA10..D,G,N201808-202106

77404AHOSE SUB-ASSY, FUEL TANK VENT

main77404-02280iMAXH10202106

main77404-F4110iMAXA10..E201808-202106

77511ABRACKET, FUEL TANK

main77512-06040iMAXA10..D,G,N201808-202106

(L)

main77512-35140iMAXA10..D,G,N201808-202106

(J)

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-F4050iMAXA10..E201808-202106

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-F4050iMAXA10..D,G,N201808-202106

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-02220iMAXH10202106

main77606-F4060iMAXA10..D,G,N201808-202106

77613BOLT, FUEL TANK BAND SET

main90119-10995iMAXA10..D,G,N202106

(J)

main90119-C0526iMAXA10..D,G,N201808-202106

main90119-C0526iMAXA10..D,G,N202106

(L)

77652ACUSHION, FUEL TANK, NO.2

main77651-F4030iMAXA10..D,G,N201808-202106

77730BCANISTER ASSY, CHARCOAL W/OUTLET HOSE

main77730-F4030iMAXA10201808-202007

EXHAUST EMISSION CONTROL-CHINA 6B,WITH(ON BOARD DIAGNOSIS)

77740CANISTER ASSY, CHARCOAL

main77740-02240iMAXH10202106

main77740-F4030iMAXA10..D,G,N201808-202106

77759HOSE, CHARCOAL CANISTER

main77759-12120iMAXH10202106

main77759-F4030iMAXA10..E201808-202106

77775GUIDE, CHARCOAL CANISTER OUTLET

main77775-33010iMAXA10..D,G,N201808-202106

9011906A11

main90119-06A11

90119C0519

main90119-C0519

90119C0522

main90119-C0522

9017806025

main90178-06025

90178C0139

main90178-C0139

9018206012

main90182-06012

90466C0039

main90466-C0039

9613341501

main96133-41501

9613641901

main96136-41901

37 parts on this diagram · 7 diagrams in section
