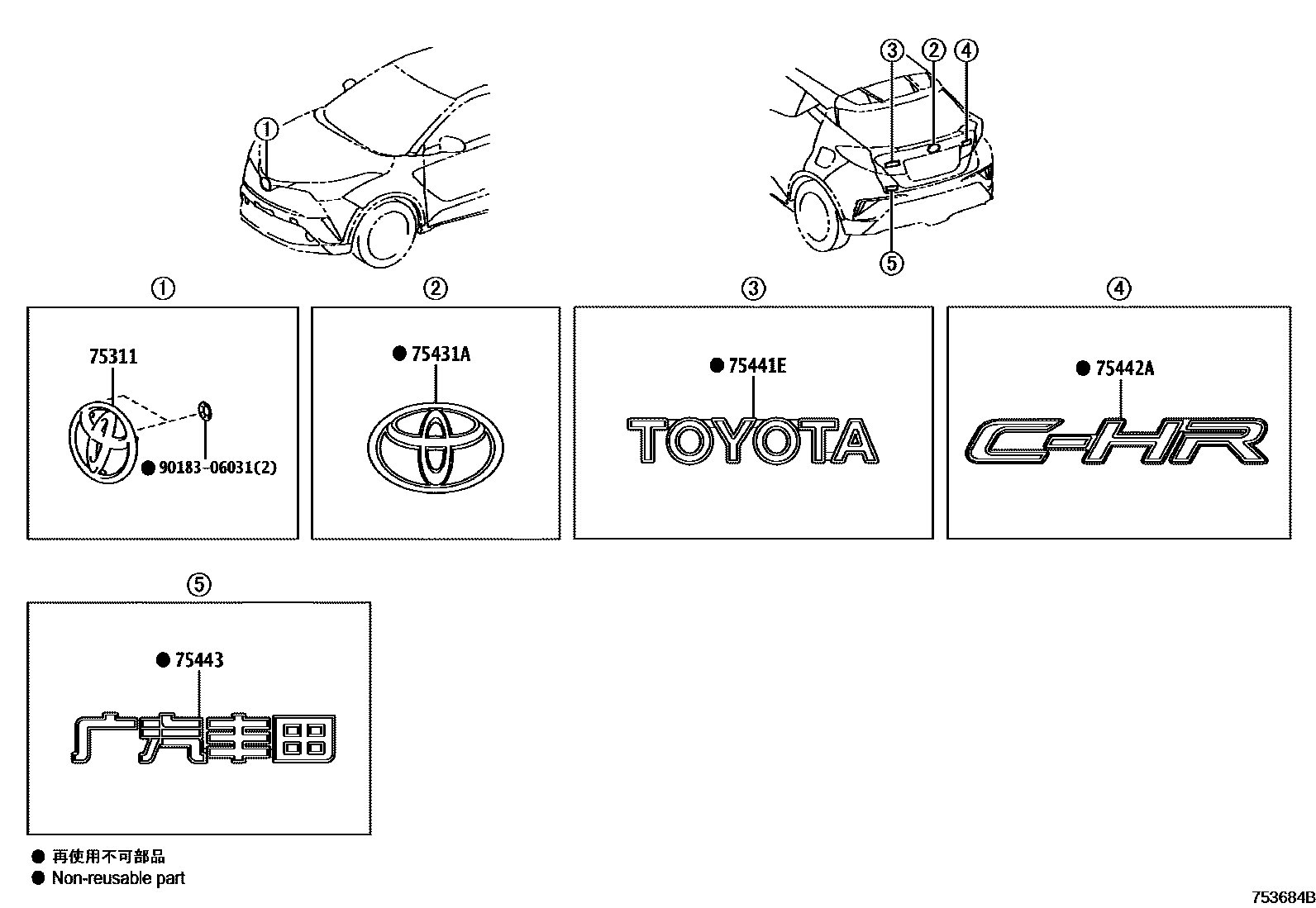

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-0R020iMAXA10..E,G,N201808-202010

main53141-0R021supersedes 75301-F4130iMAXA10..D202011-202106

PLUS PACKAGE

main90975-02160iMAXA10..G,N202106

(J)

main90975-02161iMAXH10202106

(J)

main90975-C2022iMAXH10202106

(L)

main90975-C2023iMAXA10..G,N202106

(L)

75431AEMBLEM, BACK DOOR, NO.1

main75403-02010iMAXH10202106

main90975-C2006iMAXA10..E201808

75441EPLATE, BACK DOOR NAME, NO.1

main75441-F4090iMAXA10..D,G,N201808-202106

TOYOTA

main75441-F4110iMAXH10;MAXA10..D,G,N202106-202303

main75441-F4120iMAXH10;MAXA10..D,G,N202303

75442APLATE, BACK DOOR NAME, NO.2

main75442-F4060iMAXA10..D,G,N201808-202106

C-HR

75443PLATE, BACK DOOR NAME, NO.3

main75441-F4100iMAXA10..D,G,N201808-202106

main75443-F4070iMAXH10202106

HYBRID

9018306031

main90183-06031

6 parts on this diagram · 2 diagrams in section
