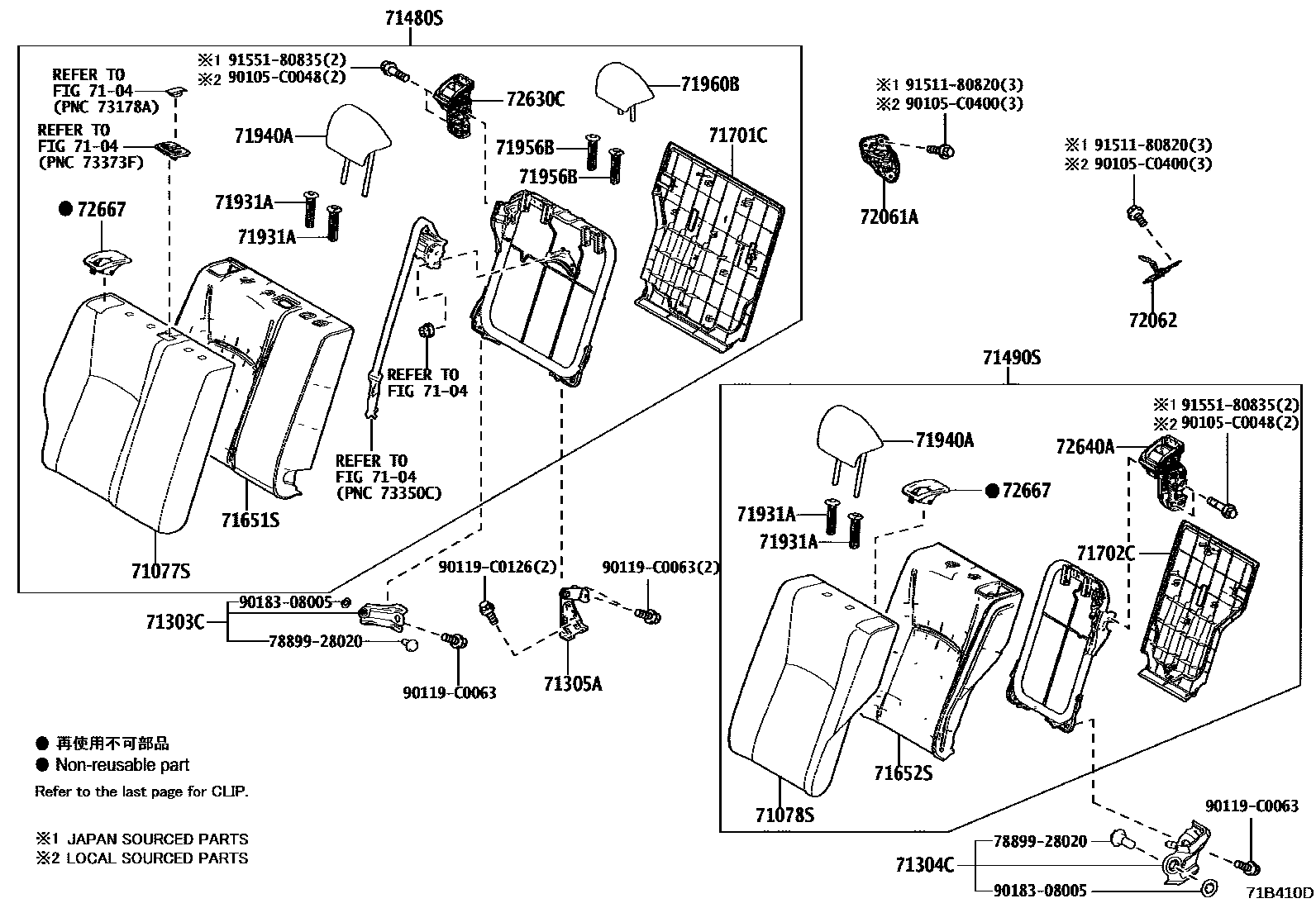

REAR SEAT & SEAT TRACK

0001 1SEAT BACK 0002 1SEAT BACK 0003 1SEAT CUSHION 0004 1SEAT CUSHION 0005 1SEAT CUSHION 0006 1CLIP

7104

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-F4190-B2iMAXA10..D201808-202106

DK.GRAY,TRIM2#

main71077-F4200-B2iMAXA10..G,N201808-201911

DARK GREY,TRIM2#

main71077-F4210-C2iMAXA10..E201808-202106

BLACK,TRIM2#

main71077-F4390-A0iMAXA10..G,N201911-202106

CKD COLOR,TRIM2#

main71077-F4390-C0iMAXA10,MAXH10..G202106-202303

BLACK,TRIM2#

main71077-F4391-C1iMAXA10,MAXH10..G202303

BLACK,TRIM2#

main71077-F4391-C1iMAXA10,MAXH10..G202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71077-F4400-B2iMAXA10..D202303

DK.GRAY/BLACK,TRIM2#

main71077-F4400-B3iMAXA10..D202106-202303

DK.GRAY,TRIM2#

main71077-F4410-C2iMAXA10,MAXH10..N202303

BLACK,TRIM2#

main71077-F4410-C3iMAXA10,MAXH10..N202106-202303

BLACK,TRIM2#

main71077-F4420-C4iMAXH10..E202106-202303

BLACK,TRIM2#

main71077-F4421-C2iMAXH10..E202303

BLACK,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-F4140-B2iMAXA10..D201808-202106

DK.GRAY,TRIM2#

main71078-F4150-B2iMAXA10..G,N201808-201911

DARK GREY,TRIM2#

main71078-F4160-C2iMAXA10..E201808-202106

BLACK,TRIM2#

main71078-F4340-A0iMAXA10..G,N201911-202106

CKD COLOR,TRIM2#

main71078-F4340-C0iMAXA10,MAXH10..G202106-202303

BLACK,TRIM2#

main71078-F4340-C1iMAXA10,MAXH10..G202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71078-F4340-C1iMAXA10,MAXH10..N202303

BLACK,TRIM2#

main71078-F4350-B2iMAXA10..D202303

DK.GRAY/BLACK,TRIM2#

main71078-F4350-B3iMAXA10..D202106-202303

DK.GRAY,TRIM2#

main71078-F4360-C2iMAXA10,MAXH10..N202303

BLACK,TRIM2#

main71078-F4360-C3iMAXA10,MAXH10..N202106-202303

BLACK,TRIM2#

main71078-F4370-C2iMAXH10..E202303

BLACK,TRIM2#

main71078-F4370-C4iMAXH10..E202106-202303

BLACK,TRIM2#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-F4040iMAXA10..D,G,N201808-202106

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-F4040iMAXA10..E201808-202106

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-F4040iMAXA10..E201808-202106

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-F4190-C2iMAXA10..D201808-202106

BLACK,TRIM2#

main71480-F4200-C2iMAXA10..G,N201808-201911

BLACK,TRIM2#

main71480-F4210-C3iMAXA10..E201808-202106

BLACK,TRIM2#

main71480-F4480-C0iMAXA10..G,N201911-202106

CKD COLOR,TRIM2#

main71480-F4520-C2iMAXA10..D202106-202303

BLACK,TRIM2#

main71480-F4520-C3iMAXA10..D202303

DK.GRAY/BLACK,TRIM2#

main71480-F4530-C2iMAXA10,MAXH10..N202303

BLACK,TRIM2#

main71480-F4530-C3iMAXA10,MAXH10..N202106-202303

BLACK,TRIM2#

main71480-F4540-C4iMAXH10..E202106-202303

BLACK,TRIM2#

main71480-F4541-C1iMAXH10..E202303

BLACK,TRIM2#

main71480-F4570-C0iMAXA10,MAXH10..G202106-202303

BLACK,TRIM2#

main71480-F4571-C1iMAXA10,MAXH10..N202303

BLACK,TRIM2#

main71480-F4571-C1iMAXA10,MAXH10..G202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-F4150-C2iMAXA10..D201808-202106

BLACK,TRIM2#

main71490-F4160-C2iMAXA10..G,N201808-201911

BLACK,TRIM2#

main71490-F4170-C2iMAXA10..E201808-202106

BLACK,TRIM2#

main71490-F4440-C0iMAXA10..G,N201911-202106

CKD COLOR,TRIM2#

main71490-F4480-C2iMAXA10..D202303

DK.GRAY/BLACK,TRIM2#

main71490-F4480-C3iMAXA10..D202106-202303

BLACK,TRIM2#

main71490-F4490-C2iMAXA10,MAXH10..N202303

BLACK,TRIM2#

main71490-F4490-C3iMAXA10,MAXH10..N202106-202303

BLACK,TRIM2#

main71490-F4500-C4iMAXH10..E202106-202303

BLACK,TRIM2#

main71490-F4501-C1iMAXH10..E202303

BLACK,TRIM2#

main71490-F4530-C0iMAXA10,MAXH10..G202106-202303

BLACK,TRIM2#

main71490-F4531-C1iMAXA10,MAXH10..N202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71490-F4531-C1iMAXA10,MAXH10..G202303

BLACK,TRIM2#

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-F4070iMAXA10201808-202106

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-F4060iMAXA10201808-202106

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-F4040iMAXA10201808-202106

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-F4040iMAXA10201808-202106

71931ASUPPORT, REAR SEAT HEADREST

main71930-06070-C0iMAXA10201808-202106

W(LOCK),BLACK,TRIM2#

main71931-06060-C0iMAXH10;MAXA10..D,G,N201808-202106

W/O(LOCK),BLACK,TRIM2#

71940AHEADREST ASSY, REAR SEAT

main71940-F4080-A0iMAXA10..G,N201911-202002

CKD COLOR,TRIM2#

main71940-F4110-C1iMAXA10..D201808-202106

BLACK,TRIM2#

main71940-F4120-J0iMAXA10..G,N201808-201911

BLUE,TRIM2#

main71940-F4130-A0iMAXA10..G,N202002-202106

CKD COLOR,TRIM2#

main71940-F4130-C1iMAXA10..E201808-202106

BLACK,TRIM2#

main71940-F4190-C1iMAXA10..D202106

BLACK,TRIM2#

main71940-F4200-C0iMAXA10,MAXH10..N202106

BLACK,TRIM2#

main71940-F4210-C1iMAXA10..G;MAXH10..E,G202106-202303

BLACK,TRIM2#

main71940-F4280-C0iMAXA10..G;MAXH10..E,G202303

BLACK,TRIM2#

main71940-F4280-C0iMAXA10..G;MAXH10..E,G202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

71956BSUPPORT, REAR SEAT HEADREST

main71930-06070-C0iMAXH10;MAXA10..D,G,N201808-202106

W(LOCK),BLACK,TRIM2#

main71931-06060-C0iMAXH10;MAXA10..D,G,N201808-202106

W/O(LOCK),BLACK,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-F4070-A0iMAXA10..G,N201911-202002

CKD COLOR,TRIM2#

main71960-F4100-C1iMAXA10..D201808-202106

BLACK,TRIM2#

main71960-F4100-C2iMAXA10..G,N201808-201911

BLACK,TRIM2#

main71960-F4120-A0iMAXA10..G,N202002-202106

CKD COLOR,TRIM2#

main71960-F4120-C1iMAXA10..E201808-202106

BLACK,TRIM2#

main71960-F4140-C1iMAXA10,MAXH10..D,N202106

BLACK,TRIM2#

main71960-F4160-C1iMAXA10..G;MAXH10..E,G202106-202303

BLACK,TRIM2#

main71960-F4220-C0iMAXA10..G;MAXH10..E,G202303

BLACK,TRIM2#

main71960-F4220-C0iMAXA10..G;MAXH10..E,G202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH

main72061-F4030iMAXH10;MAXA10..D,G,N201808-202106

72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH

main72062-F4030iMAXA10..D,G,N201808-202106

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-F4020-C0iMAXA10201808-202106

BLACK,TRIM2#

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-F4020-C0iMAXA10201808-202106

BLACK,TRIM2#

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-F4050-C0iMAXA10201808-202106

BLACK,TRIM2#

7889928020BOLT, FRONT SEAT

main78899-28020

90105C0048

main90105-C0048

90105C0400

main90105-C0400

90119C0063

main90119-C0063

90119C0126

main90119-C0126

9018308005

main90183-08005

9151180820

main91511-80820

9155180835

main91551-80835

29 parts on this diagram · 6 diagrams in section
