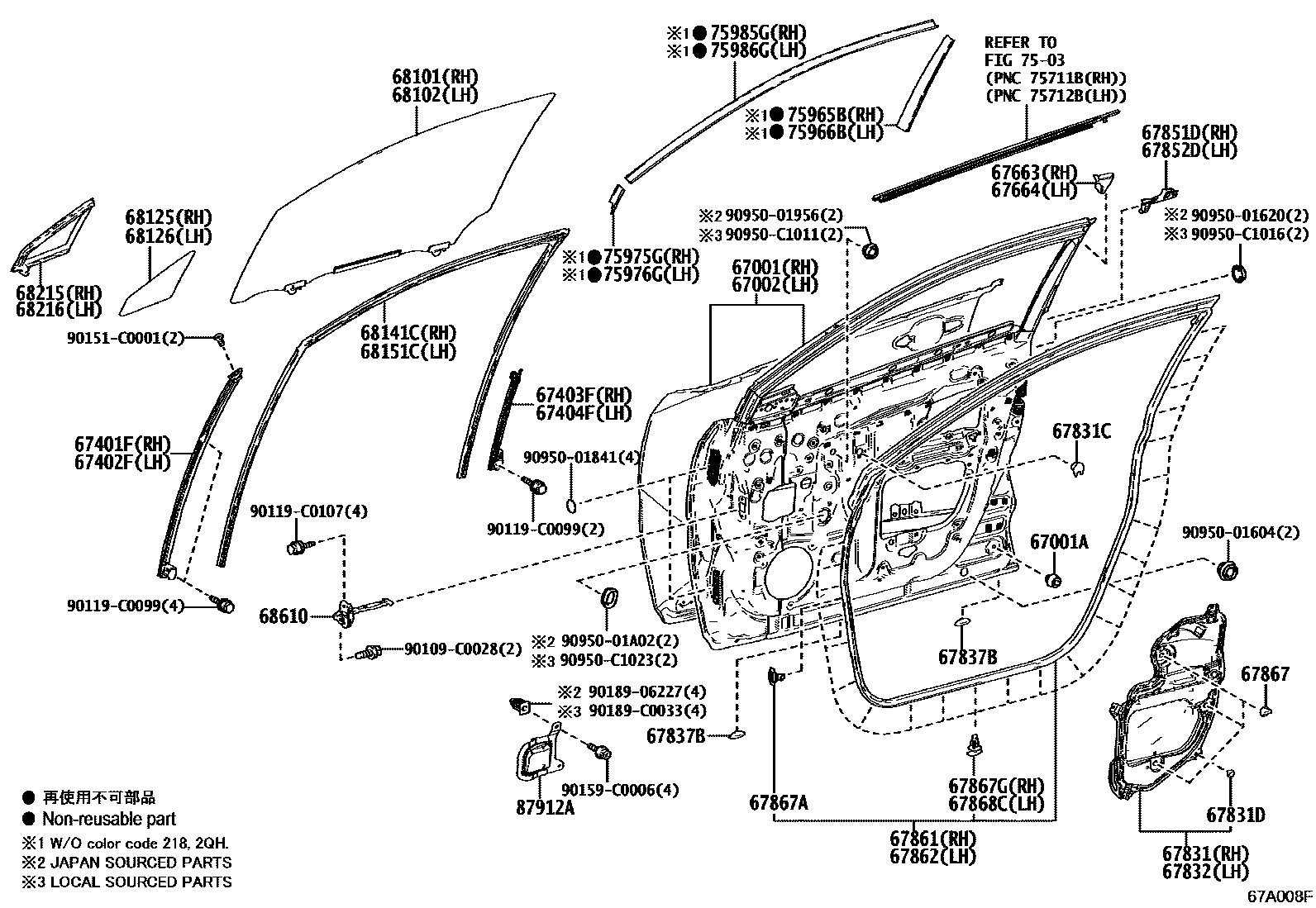

FRONT DOOR PANEL & GLASS
67001ACUSHION, FRONT DOOR PANEL
(J),TYPE A:REF ILL.
TYPE B:REFER ILLUST.
(L),TYPE A:REF ILL.
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67663GARNISH, DOOR FRAME, UPPER RH
67664GARNISH, DOOR FRAME, UPPER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67831CCOVER, FRONT DOOR SERVICE HOLE
67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837BSEAL, FRONT DOOR DUST PROOF
67851DSEAL, FRONT DOOR REAR OUTSIDE, RH
67852DSEAL, FRONT DOOR REAR OUTSIDE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CLIP, DOOR WEATHERSTRIP
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68125GLASS, FRONT DOOR FIX WINDOW, RH
68126GLASS, FRONT DOOR FIX WINDOW, LH
68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
68610CHECK ASSY, FRONT DOOR
7503
75965BSTRIPE, FRONT DOOR NO.4 RH
0 OR 1PIECE,REF.ILL.
75966BSTRIPE, FRONT DOOR NO.4 LH
0 OR 1PIECE,REF.ILL.
75975GSTRIPE, FRONT DOOR, NO.2 RH
0 OR 1PIECE,REF.ILL.
75976GSTRIPE, FRONT DOOR, NO.2 LH
0 OR 1PIECE,REF.ILL.
75985GSTRIPE, FRONT DOOR OUTSIDE, RH
0 OR 1PIECE,REF.ILL.
75986GSTRIPE, FRONT DOOR OUTSIDE, LH
0 OR 1PIECE,REF.ILL.
87912APROTECTOR, OUTER MIRROR
RH
LH
90109C0028
main90109-C0028
90119C0099
main90119-C0099
90119C0107
main90119-C0107
90151C0001
main90151-C0001
90159C0006
main90159-C0006
9018906227
main90189-06227
90189C0033
main90189-C0033
9095001604
main90950-01604
9095001620
main90950-01620
9095001841
main90950-01841
9095001956
main90950-01956
9095001A02
main90950-01A02
90950C1011
main90950-C1011
90950C1016
main90950-C1016
90950C1023
main90950-C1023
54 parts on this diagram · 5 diagrams in section
