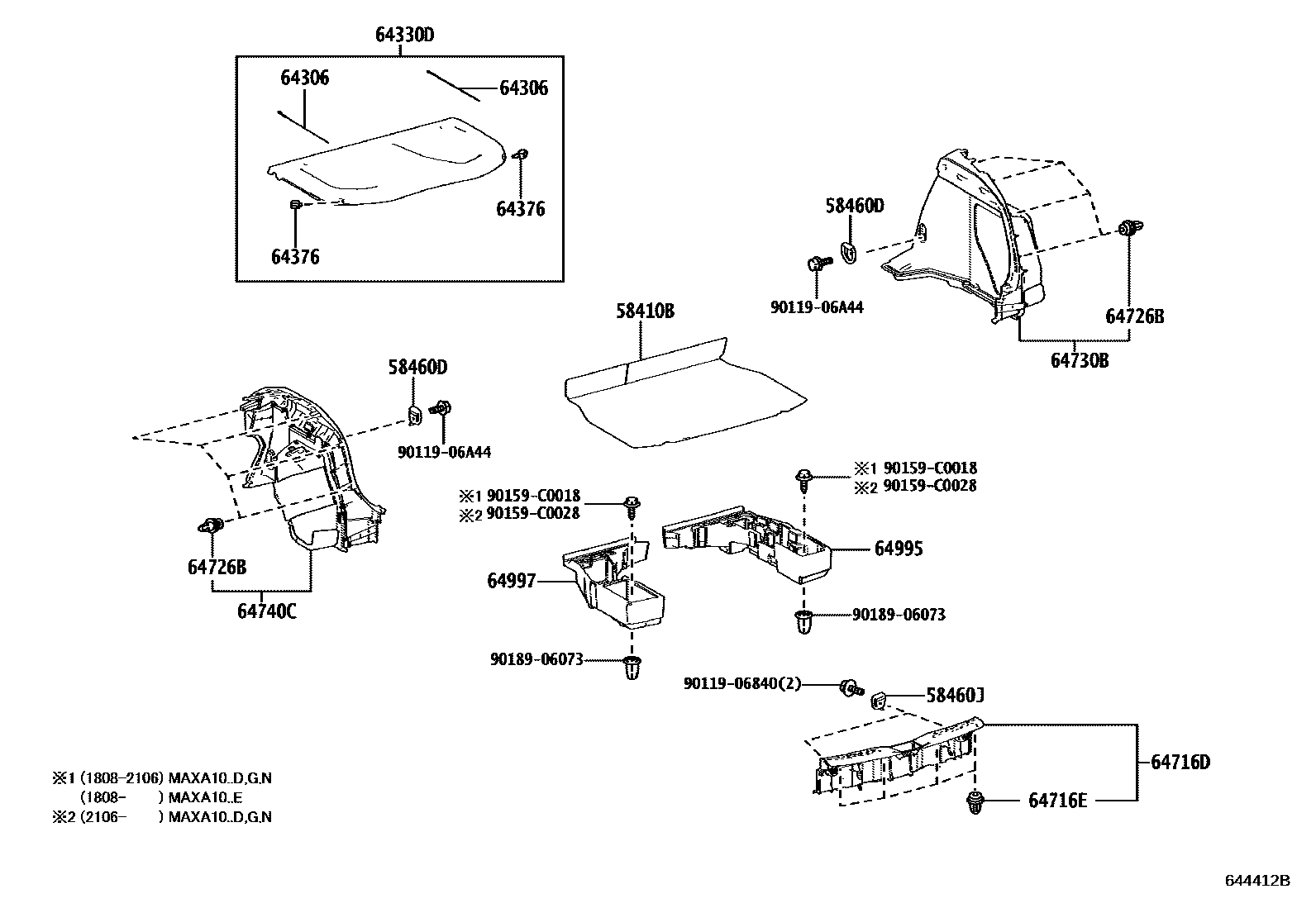

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58410BBOARD ASSY, DECK

main58410-F4080-C1iMAXA10..D,G,N201808-202302

BLACK,TRIM2#

main58410-F4081-C1iMAXA10..D,G,N202303

BLACK,TRIM2#

main58410-F4130-C0iMAXH10202106-202303

BLACK,TRIM2#

main58410-F4131-C0iMAXH10202303

BLACK,TRIM2#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iMAXA10..D,G,N201808-202106

58460JSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iMAXH10;MAXA10..D,G,N201808-202106

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-F4030iMAXA10..D,G,N201808-202106

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-F4040-C1iMAXA10..D,G,N201808-202106

BLACK,TRIM2#

64376SPACER, PACKAGE TRAY TRIM, NO.2

main64376-12020iMAXA10..D,G,N201808-202106

64716DCOVER, DECK TRIM, REAR

main64716-F4040-C0iMAXA10..D,G,N201808-202106

BLACK,TRIM2#

main64716-F4080-C0iMAXH10202106

BLACK,TRIM2#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10161iMAXA10201808-202008

main90467-C0036iMAXA10..D,G,N202009-202106

64726BCLIP, DECK REAR TRIM

main90467-10161iMAXA10..D,G,N201808-202106

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-F4100-C1iMAXA10..D,G,N201808-202106

BLACK,TRIM2#

main64730-F4220-C0iMAXH10202106

BLACK,TRIM2#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-F4070-C0iMAXH10202106

BLACK,TRIM2#

main64740-F4100-C1iMAXA10..E201808-202106

BLACK,TRIM2#

64995BOX, DECK FLOOR, RH

main64995-F4060iMAXA10..E201808-202106

main64995-F4110iMAXH10202106

64997BOX, DECK FLOOR, LH

main64997-F4060iMAXA10..D,G,N201808-202106

9011906840

main90119-06840

9011906A44

main90119-06A44

90159C0018

main90159-C0018

90159C0028

main90159-C0028

9018906073

main90189-06073

18 parts on this diagram · 2 diagrams in section
