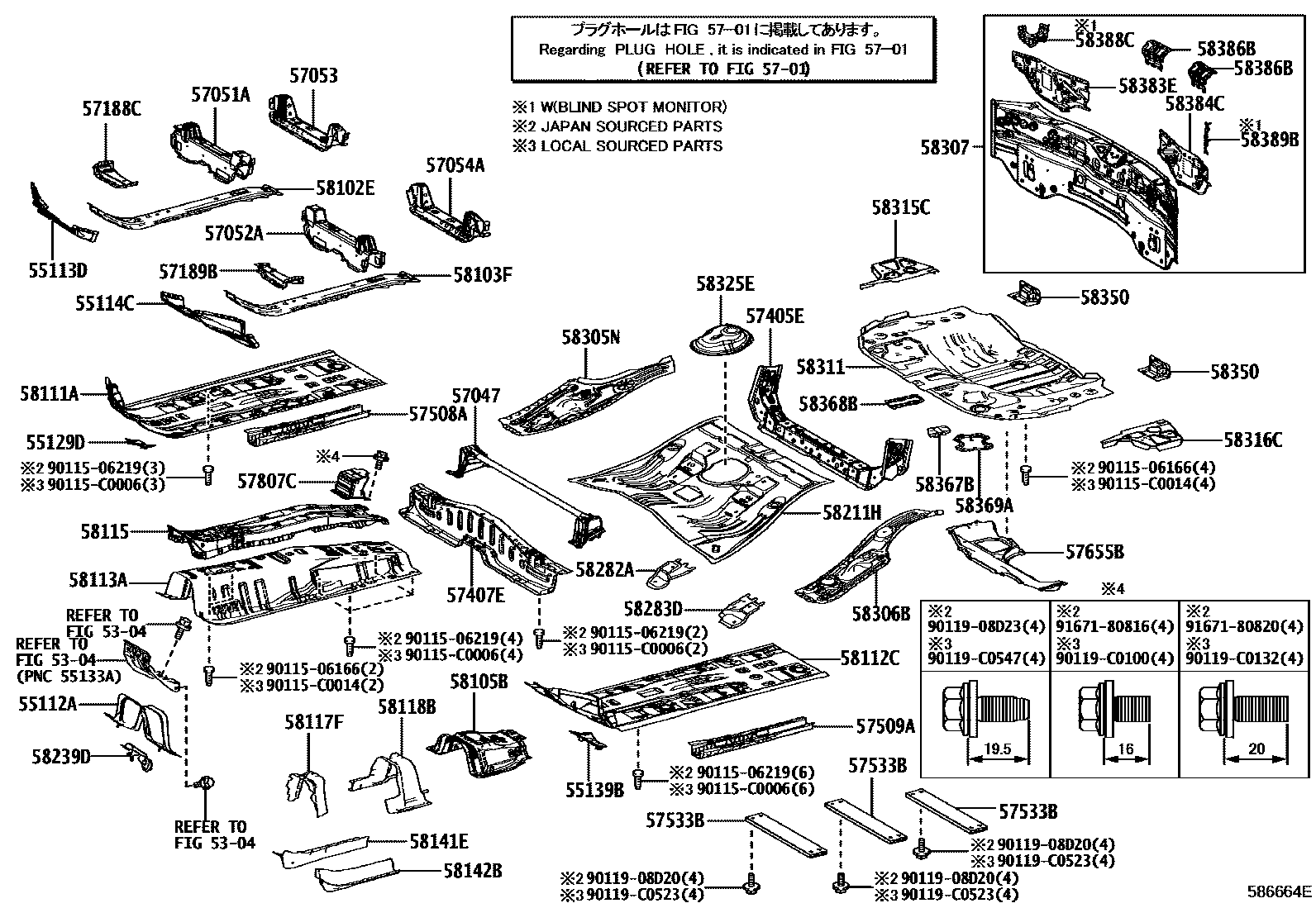

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PAN & LOWER BACK PANEL 0002 1FLOOR PAN & LOWER BACK PANEL 0003 1FLOOR UNDER COVER

5304

55112APANEL, DASH, NO.2

main55112-F4040iMAXA10201808

55113DPANEL, DASH, LOWER RH

main55113-F4040iMAXA10201808

55114CPANEL, DASH, LOWER LH

main55114-F4040iMAXA10201808

55129DCOVER, DASH PANEL HOLE, RH

main55129-F4040iMAXA10201808

55139BCOVER, DASH PANEL HOLE, LH

main55139-F4040iMAXA10201808

5701

57047GUSSET SUB-ASSY, CENTER FLOOR CROSSMEMBER

main57047-F4030iMAXA10201808

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-F4040iMAXA10201808

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-F4040iMAXA10201808

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-F4040iMAXH10;MAXA10..D,G,N201808

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-F4040iMAXH10;MAXA10..D,G,N201808

57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-F4040iMAXA10201808

57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-F4040iMAXH10;MAXA10..D,G,N201808

57405EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-F4040iMAXA10201808-202310

sub57405-F4041

main57405-F4041iMAXH10;MAXA10..D,G,N202311

57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-02310iMAXH10202106

main57407-F4070iMAXA10201808

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-F4040iMAXA10201808

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57508-F4040iMAXA10201808

57533BBRACE, FRONT FLOOR, CENTER

main57533-F4050iMAXA10201808

57655BMEMBER, REAR FLOOR CROSS, NO.4

main57655-F4020iMAXA10201808

main57655-F4070iMAXH10202106

57807CREINFORCE SUB-ASSY, REAR FLOOR SIDE MEMBER, FRONT NO.2 RH

main57807-F4030iMAXA10201808

58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main58102-F4040iMAXH10;MAXA10..D,G,N201808

58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main58102-F4040iMAXH10;MAXA10..D,G,N201808

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-F4020iMAXA10201808

58111APAN, FRONT FLOOR, RH

main58111-F4040iMAXA10201808-202103

sub58111-F4041

main58111-F4041iMAXA10202104

58112CPAN, FRONT FLOOR, LH

main58112-F4040iMAXA10201808-202103

sub58112-F4041

main58112-F4041iMAXH10;MAXA10..D,G,N202104-202210

main58112-F4042iMAXH10;MAXA10..D,G,N202211-202302

sub58112-F4041

58113APANEL, FRONT FLOOR, CENTER

main58113-F4050iMAXA10201808

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58115-F4050iMAXA10201808

58117FPANEL, FRONT FLOOR, REAR LOWER

main58117-F4040iMAXA10201808

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-F4040iMAXH10;MAXA10..D,G,N201808

58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH

main58141-F4040iMAXH10;MAXA10..D,G,N201808

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-F4040iMAXA10201808-202107

sub58142-F4041

main58142-F4041iMAXH10;MAXA10..D,G,N202107

58211HPAN, CENTER FLOOR

main58211-02610iMAXH10202106

main58211-F4070iMAXA10201808

58239DBRACKET, CABLE CLAMP

main58239-F4040iMAXA10201808

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-F4040iMAXA10201808

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-F4040iMAXA10201808

58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

main58305-02050iMAXH10202106

main58305-F4060iMAXA10201808

58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

main58306-02051iMAXH10202106

main58306-F4060iMAXA10201808

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-F4070iMAXA10..D,G,N201808-202106

sub58307-F4071

main58307-F4071iMAXA10,MAXH10..D,G,N202106

main58307-F4080iMAXA10..E201808-202106

sub58307-F4081

main58307-F4081iMAXA10..E202106

58311PAN, REAR FLOOR

main58311-F4060iMAXA10201808

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-F4040iMAXH10;MAXA10..D,G,N201808

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-F4040iMAXA10201808

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02300iMAXH10202106

main58325-F4070iMAXA10..D,G,N201808

58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH

main58350-F4040iMAXA10201808

58367BBRACKET, FUEL TUBE

main58367-06030iMAXA10201808

58368BBRACKET, FUEL TUBE, NO.2

main58368-06030iMAXA10201808

58369ABRACKET, FUEL TUBE, NO.3

main58369-06080iMAXA10201808

main58369-06090iMAXH10202106

58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH

main58383-F4040iMAXA10201808

58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH

main58384-F4040iMAXA10201808

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-F4040iMAXA10201808

58388CPLATE, BODY LOWER BACK REINFORCEMENT, RH

main58388-F4040iMAXA10..E201808

58389BPLATE, BODY LOWER BACK REINFORCEMENT, LH

main58389-F4040iMAXA10..E201808

9011506166

main90115-06166

9011506219

main90115-06219

90115C0006

main90115-C0006

90115C0014

main90115-C0014

9011908D20

main90119-08D20

9011908D23

main90119-08D23

90119C0100

main90119-C0100

90119C0132

main90119-C0132

90119C0523

main90119-C0523

90119C0547

main90119-C0547

9167180816

main91671-80816

9167180820

main91671-80820
