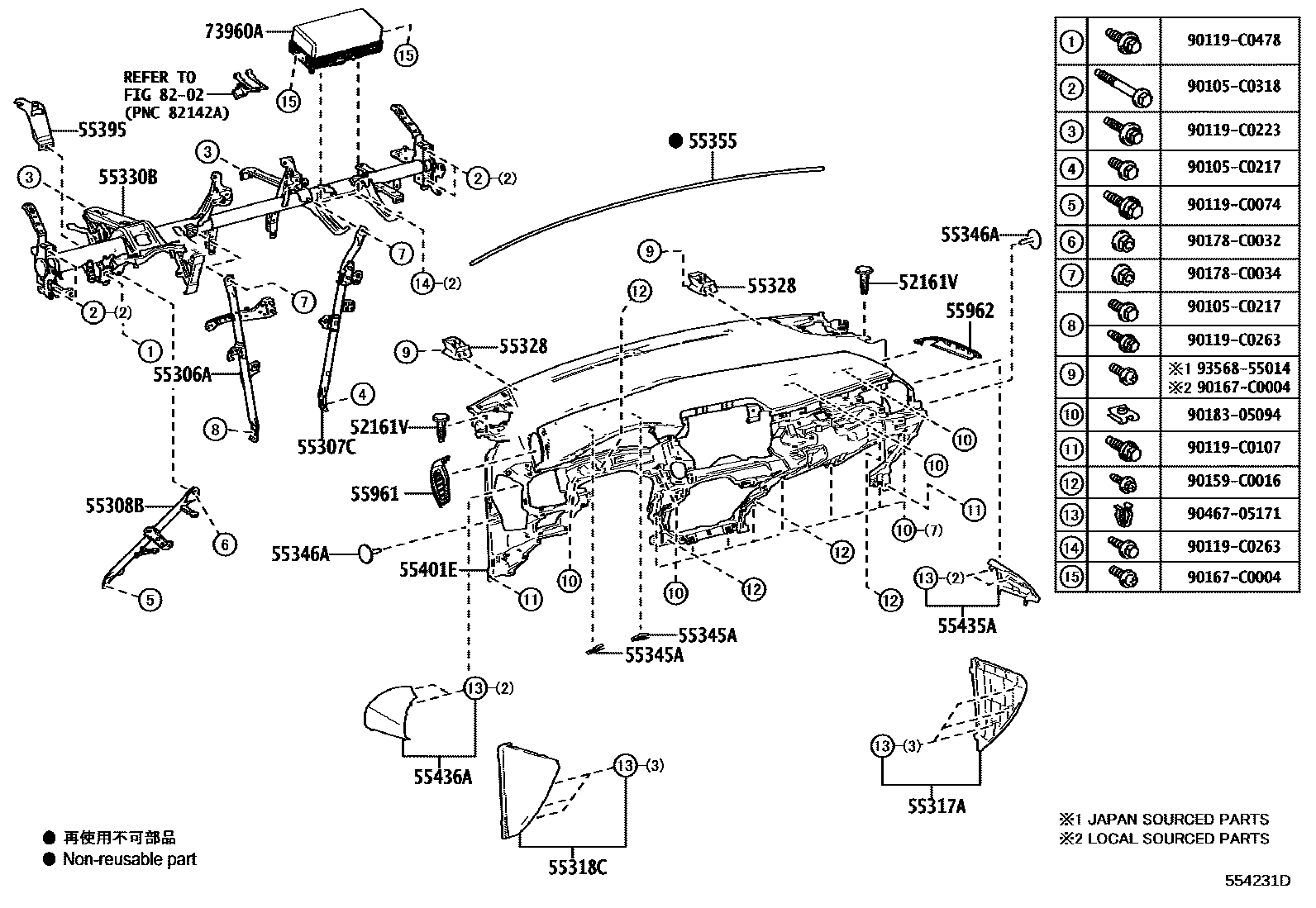

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE 0009 1 0010 1DRIVER SIDE 0011 1CENTER 0012 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-02040×2iMAXA10..D,G,N201812-202106

main52161-16010×2iMAXA10201808-201811

sub52161-0K040

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-F4120iMAXA10..D,G,N201808-202106

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-F4060iMAXA10..D,G,N201808-202106

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-F4090iMAXA10..D,G,N201808-202106

55317APANEL, INSTRUMENT SIDE, RH

main55317-F4040-C0iMAXA10..D,G,N201808-202106

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-F4040-C0iMAXA10..D,G,N201808-202106

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-F4080×2iMAXA10..D,G,N201808-202106

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-F4080iMAXA10..D,G,N201808-202106

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060×2iMAXH10;MAXA10..D,G,N202106

55346ACLIP, INSTRUMENT PANEL, NO.2

main90467-05161-C9×2iMAXA10201808-202010

BLACK

main90467-C0077-C0×2iMAXA10..E202010

BLACK,(L)

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-F4030iMAXH10;MAXA10..D,G,N202106

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-F4060iMAXA10..E201808

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-F4070-C0iMAXA10..G,N201808-202106

BLACK,TRIM2#

main55401-F4070-C1iMAXA10..E201808

BLACK,TRIM2#

main55401-F4070-C2iMAXA10..D202106-202303

BLACK,TRIM2#

main55401-F4070-C4iMAXA10..G,N202106-202303

BLACK,TRIM2#

main55401-F4080-C0iMAXA10..D201808-202106

BLACK,TRIM2#

main55401-F4140-C2iMAXA10..D202303

BLACK,TRIM2#

main55401-F4140-C3iMAXH10..E202106

BLACK,TRIM2#

main55401-F4140-C4iMAXH10..G,N202106

BLACK,TRIM2#

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-F4030-C0iMAXH10;MAXA10..D,G,N202106

BLACK,TRIM2#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-F4030-C0iMAXA10..E201808

BLACK,TRIM2#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-F4040-C0iMAXA10..D,G,N201808-202106

BLACK,TRIM2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-F4040-C0iMAXA10..D,G,N201808-202106

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-F4060iMAXA10..D,G,N201808-202106

8202

90105C0217

main90105-C0217

90105C0318

main90105-C0318

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0223

main90119-C0223

90119C0263

main90119-C0263

90119C0478

main90119-C0478

90159C0016

main90159-C0016

90167C0004

main90167-C0004

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9018305094

main90183-05094

9046705171

main90467-05171

9356855014

main93568-55014

33 parts on this diagram · 12 diagrams in section
