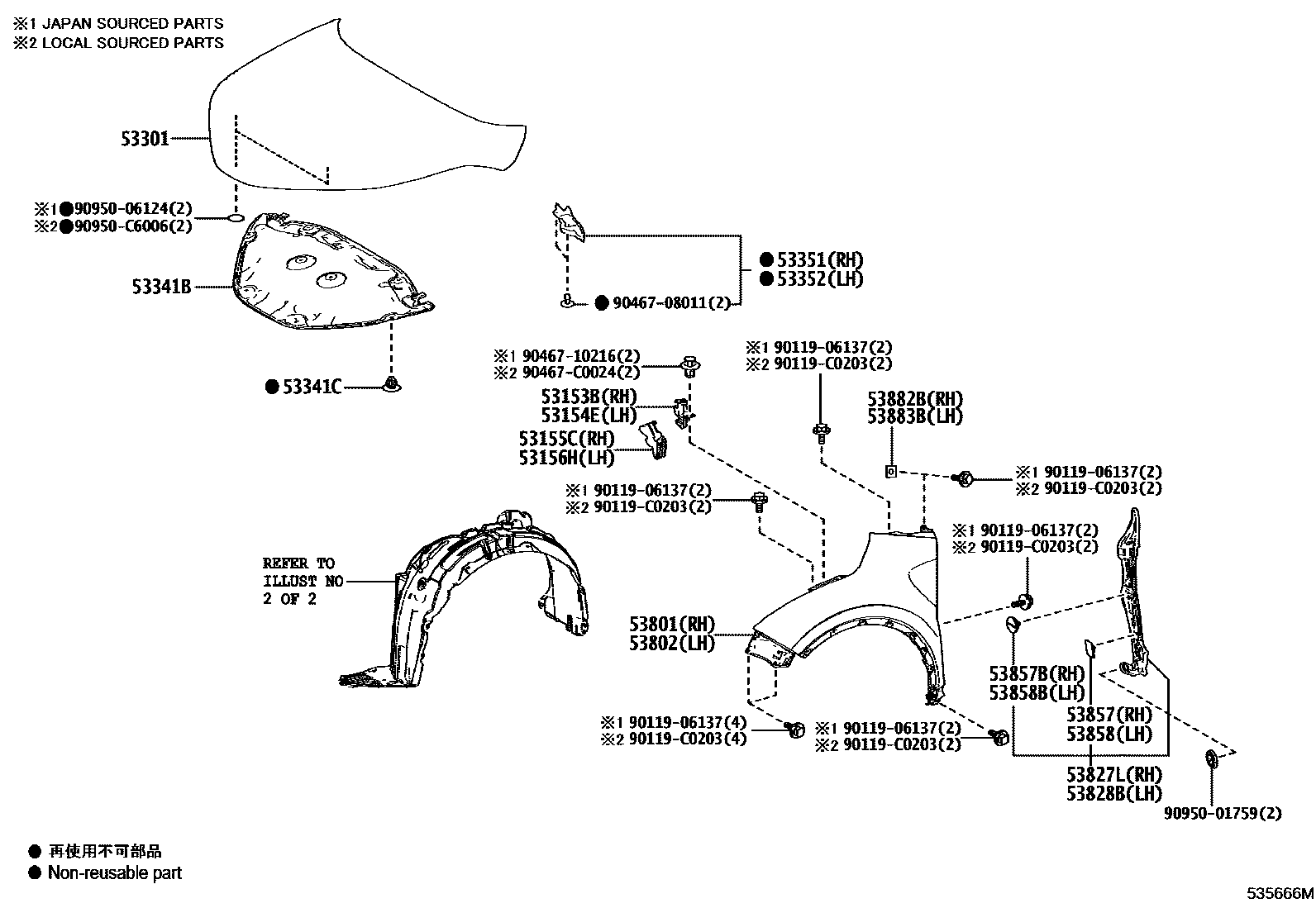

HOOD & FRONT FENDER
53153BGUIDE, FRONT SIDE AIR
53154EGUIDE, FRONT SIDE AIR, NO.2
53155CSEAL, RADIATOR GRILLE, NO.1
53156HSEAL, RADIATOR GRILLE, NO.2
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
(J)
(L)
53351PANEL, HOOD SIDE, RH
53352PANEL, HOOD SIDE, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
(L)
(J)
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
(L)
(J)
53882BSEAL, FRONT FENDER, RH
(L)
(J)
53883BSEAL, FRONT FENDER, LH
(L)
(J)
9011906137
main90119-06137
90119C0203
main90119-C0203
9046708011
main90467-08011
9046710216
main90467-10216
90467C0024
main90467-C0024
9095001759
main90950-01759
9095006124
main90950-06124
90950C6006
main90950-C6006
27 parts on this diagram · 2 diagrams in section
