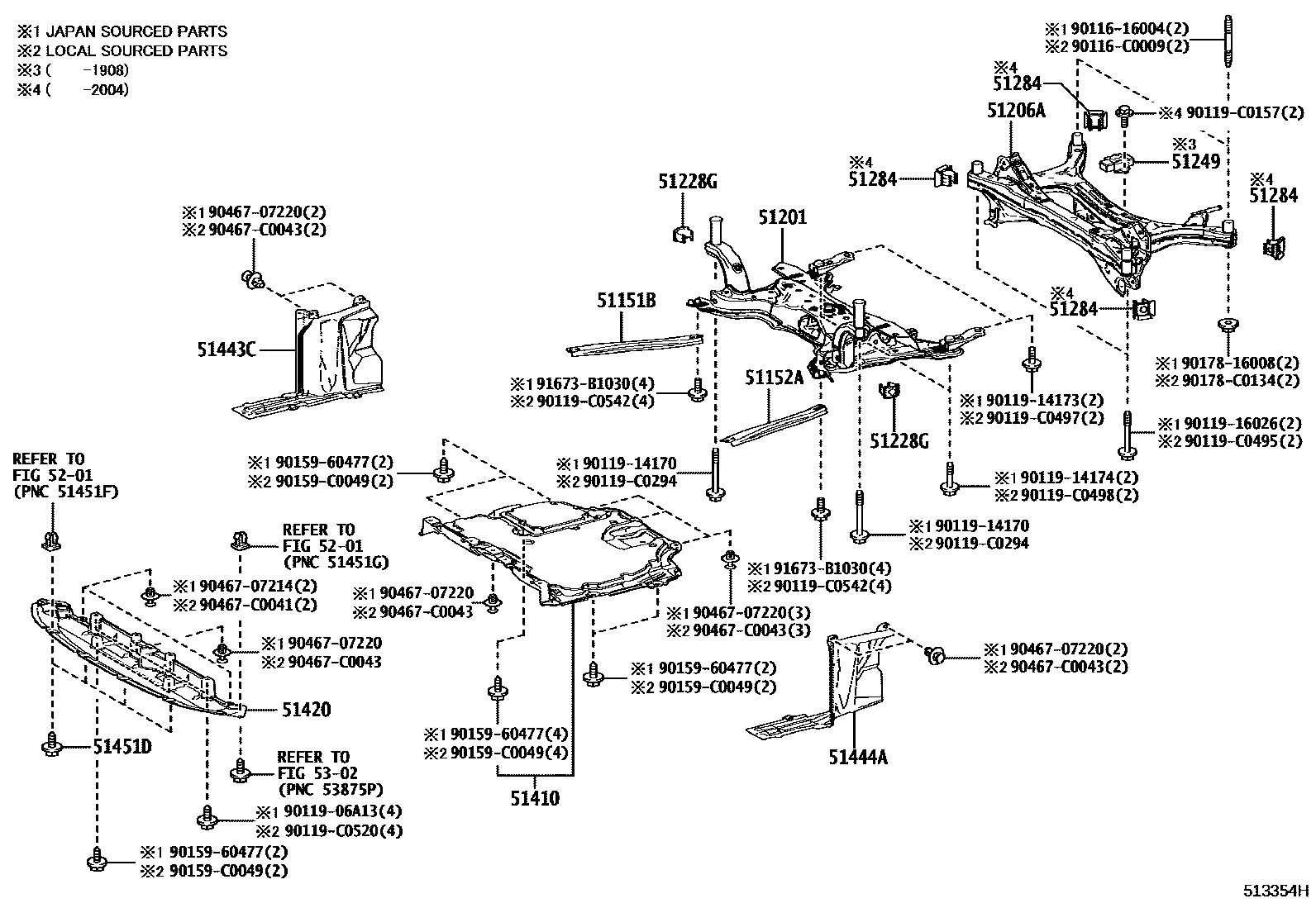

SUSPENSION CROSSMEMBER & UNDER COVER

51151BREINFORCEMENT, SIDE RAIL, NO.1 RH

main51151-F4030iMAXH10;MAXA10..D,G,N202106

51152AREINFORCEMENT, SIDE RAIL, NO.1 LH

main51151-F4030iMAXA10..D,G,N201808-202106

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-F4040iMAXA10201808-201812

main51201-F4041iMAXA10201901-202106

main51201-F4042iMAXH10;MAXA10..D,G,N202107

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-F4050iMAXA10..D,G,N201808-202106

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-F4040×2iMAXH10;MAXA10..D,G,N202106

51249DAMPER, REAR SUSPENSION MEMBER

main51249-F4030iMAXA10201808-201908

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-F4040×4iMAXA10201808-202004

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-F4070iMAXH10;MAXA10..D,G,N202106

51420COVER ASSY, ENGINE UNDER, NO.2

main51420-F4050iMAXA10201808

main51420-F4070iMAXH10;MAXA10..D,G,N202106

51443CCOVER, ENGINE UNDER, REAR RH

main51443-F4040iMAXA10..E201808

51444ACOVER, ENGINE UNDER, REAR LH

main51444-F4040iMAXA10..D,G,N201808-202106

51451DSCREW, NO.1

main90159-60477×4iMAXH10;MAXA10..D,G,N202106

(J)

main90159-C0049×4iMAXA10201808

5201

5302

9011616004

main90116-16004

90116C0009

main90116-C0009

9011906A13

main90119-06A13

9011914170

main90119-14170

9011914173

main90119-14173

9011914174

main90119-14174

9011916026

main90119-16026

90119C0157

main90119-C0157

90119C0294

main90119-C0294

90119C0495

main90119-C0495

90119C0497

main90119-C0497

90119C0498

main90119-C0498

90119C0520

main90119-C0520

90119C0542

main90119-C0542

9015960477

main90159-60477

90159C0049

main90159-C0049

9017816008

main90178-16008

90178C0134

main90178-C0134

9046707214

main90467-07214

9046707220

main90467-07220

90467C0041

main90467-C0041

90467C0043

main90467-C0043

91673B1030

main91673-B1030

37 parts on this diagram · 1 diagram in section
