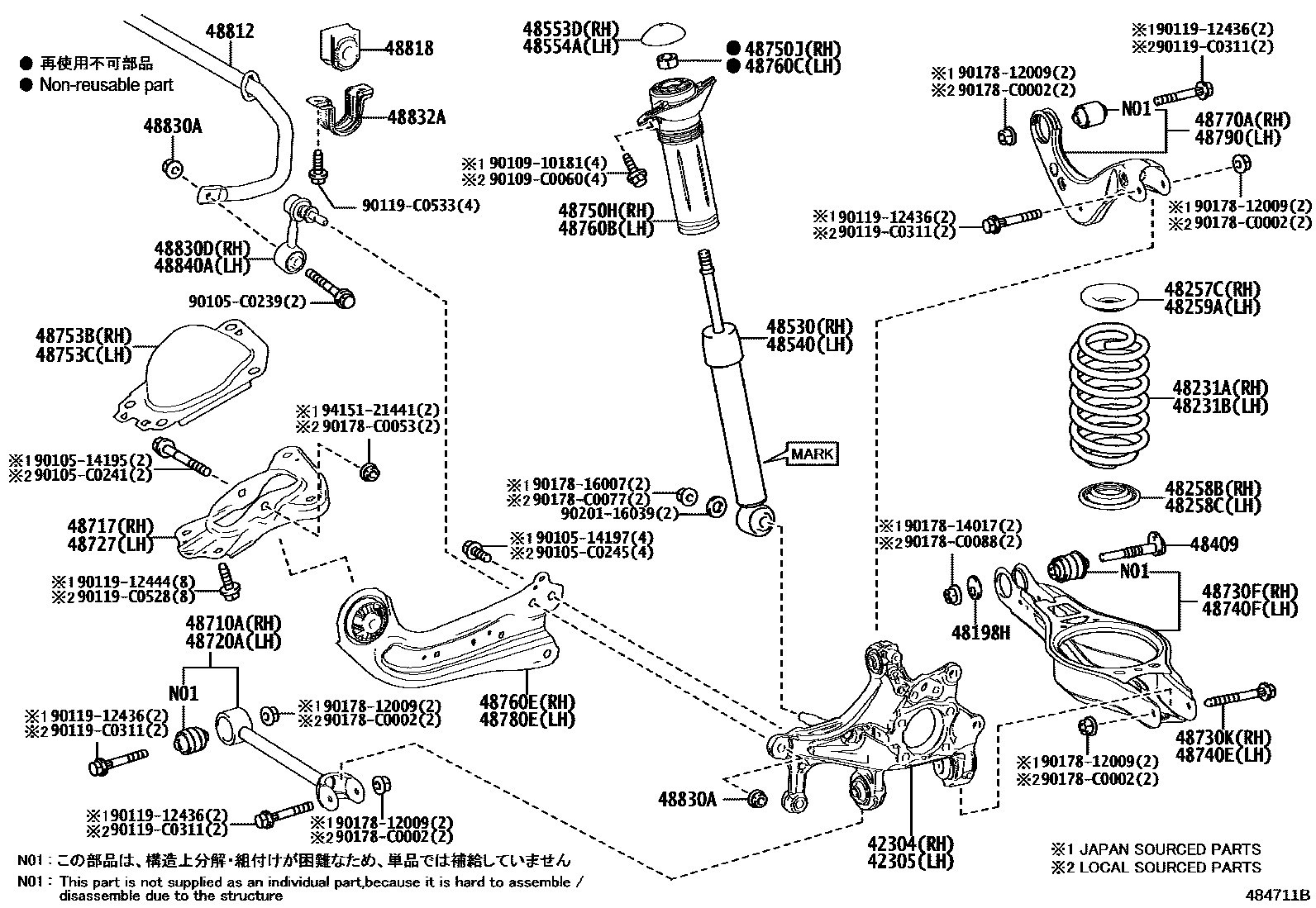

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-F4080iMAXA10..E201808-202106

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-F4080iMAXA10..D,G,N201808-202106

48198HCAM, CAMBER ADJUST, NO.2

main48198-02020iMAXA10..E201902-202106

(L)

main48198-47010iMAXA10201808-201902

main48198-47010iMAXA10..E201902-202106

(J)

48231ASPRING, COIL, REAR RH

main48231-F4140iMAXA10201808-201901

sub48231-F4141

main48231-F4141iMAXA10201902-202102

sub48231-F4142

main48231-F4142iMAXA10..D,G,N202103-202106

main48231-F4260iMAXH10202106

48231BSPRING, COIL, REAR LH

main48231-F4140iMAXA10201808-201901

sub48231-F4141

main48231-F4141iMAXA10201902-202102

sub48231-F4142

main48231-F4142iMAXA10..D,G,N202103-202106

main48231-F4260iMAXH10202106

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-06040iMAXA10..D,G,N201808-202106

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-06240iMAXA10..D,G,N201808-202106

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-06240iMAXA10..D,G,N201808-202106

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-06040iMAXA10..D,G,N201808-202106

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-02010iMAXA10..D,G,N201902-202106

(L)

main48409-47011iMAXA10201808-201902

main48409-47011iMAXA10..E201902-202106

(J)

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-F9130iMAXA10..D,G,N201808-202106

MARK 48530-F4110

main48530-F9170iMAXH10202106

MARK 48530-F4210

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-F9130iMAXA10..D,G,N201808-202106

MARK 48530-F4110

main48530-F9170iMAXH10202106

MARK 48530-F4210

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-06020iMAXA10..D,G,N201808-202106

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-06020iMAXA10..D,G,N201808-202106

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-F4040iMAXA10..D,G,N201808-202106

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-F4070iMAXA10..D,G,N201808-202106

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-F4040iMAXA10..D,G,N201808-202106

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-F4040iMAXA10..D,G,N201808-202106

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-F4050iMAXA10..D,G,N201808-202106

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-12426iMAXA10..D,G,N201808-202106

(J)

main90119-C0310iMAXA10..D,G,N201808-202106

(L)

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-12426iMAXA10..E201808-202106

(J)

main90119-C0310iMAXA10..D,G,N201808-202106

(L)

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-F4050iMAXA10..D,G,N201808-202106

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-F4030iMAXA10..D,G,N201808-202106

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90170-C0010iMAXH10;MAXA10..D,G,N201808-202106

(L)

main94130-61200iMAXA10..E201808-202106

(J)

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-F4070iMAXA10..D,G,N201808-202106

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-F4080iMAXA10..D,G,N201808-202106

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-F4030iMAXA10..D,G,N201808-202106

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90170-C0010iMAXA10..D,G,N201808-202106

(L)

main94130-61200iMAXA10..D,G,N201808-202106

(J)

48760EARM ASSY, TRAILING, REAR RH

main48760-F4050iMAXH10;MAXA10..D,G,N201808-202106

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-06040iMAXA10..D,G,N201808-202106

48780EARM ASSY, TRAILING, REAR LH

main48780-F4050iMAXA10..D,G,N201808-202106

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-06040iMAXH10;MAXA10..D,G,N201808-202106

48812BAR, STABILIZER, REAR

main48805-F4020iMAXH10;MAXA10..D,G,N202010-202106

main48812-F4050iMAXA10201808-202010

48818BUSH, STABILIZER, REAR

main48818-02470iMAXH10;MAXA10..D,G,N202010-202106

NO.1

main48818-02480iMAXA10..E202010-202106

NO.2

main48818-F4050iMAXA10201808-202010

48830ANUT(FOR REAR STABILIZER LINK)

main90178-C0018iMAXA10..D,G,N201808-202106

main90178-C0018iMAXH10;MAXA10..D,G,N202106

(L)

main94151-21241iMAXH10;MAXA10..D,G,N202106

(J)

48830DLINK ASSY, REAR STABILIZER, RH

main48830-F4020iMAXH10;MAXA10..D,G,N201808-202106

sub48830-02050

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-02120iMAXH10;MAXA10..D,G,N202010-202106

main48832-06130iMAXA10201808-202010

48840ALINK ASSY, REAR STABILIZER, LH

main48830-F4020iMAXA10..D,G,N201808-202106

sub48830-02050

9010514195

main90105-14195

9010514197

main90105-14197

90105C0239

main90105-C0239

90105C0241

main90105-C0241

90105C0245

main90105-C0245

9010910181

main90109-10181

90109C0060

main90109-C0060

9011912436

main90119-12436

9011912444

main90119-12444

90119C0311

main90119-C0311

90119C0528

main90119-C0528

90119C0533

main90119-C0533

9017812009

main90178-12009

9017814017

main90178-14017

9017816007

main90178-16007

90178C0002

main90178-C0002

90178C0053

main90178-C0053

90178C0077

main90178-C0077

90178C0088

main90178-C0088

9020116039

main90201-16039

9415121441

main94151-21441

59 parts on this diagram · 2 diagrams in section
