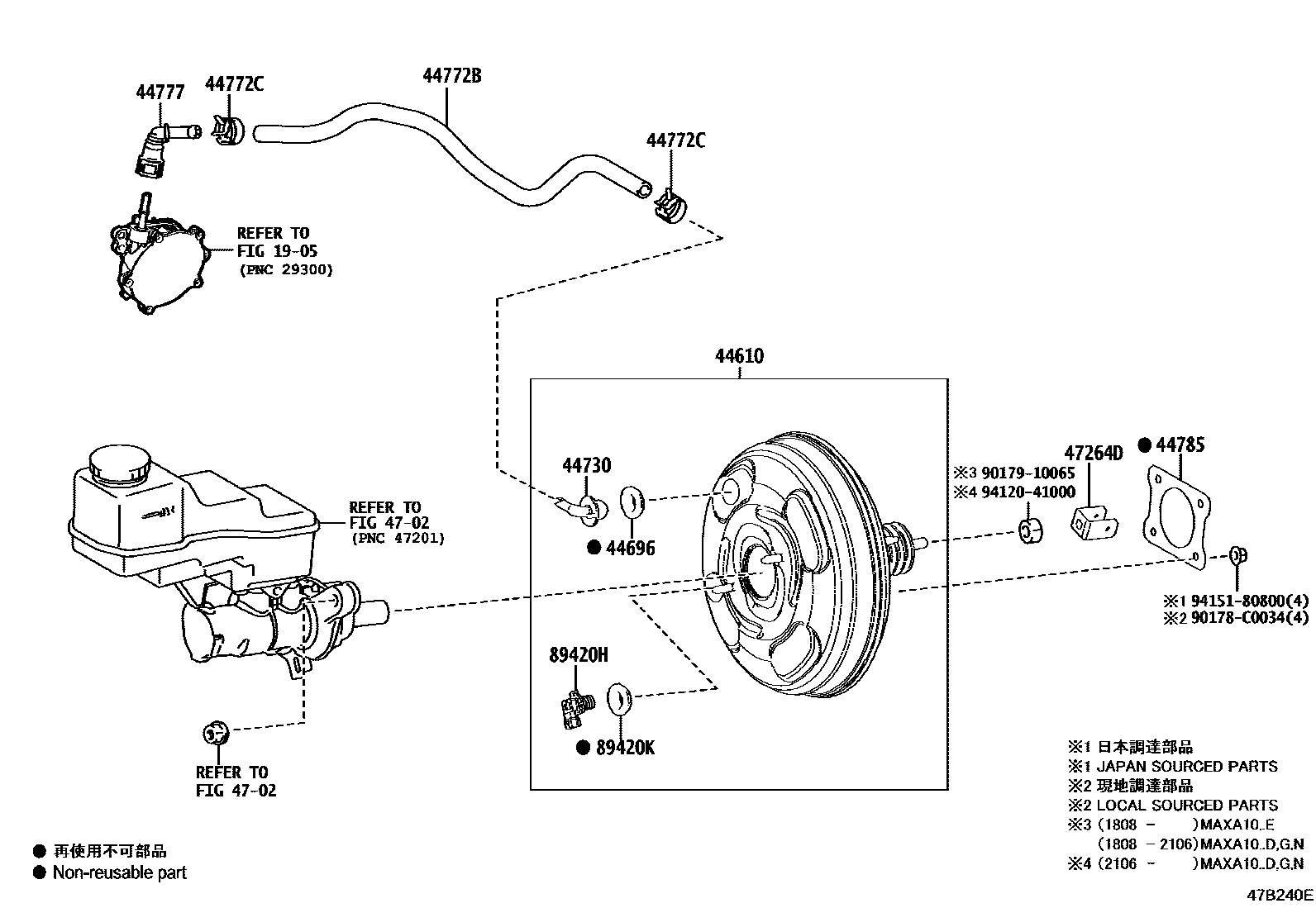

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-F4090iMAXA10..E201808

44696GROMMET, CHECK VALVE

main90080-48071iMAXA10201808

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iMAXA10..D,G,N202106-202110

main44730-52010iMAXA10..D,G,N202111

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-F4030iMAXA10..D,G,N201808-202106

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90466-C0034×2iMAXA10..D,G,N201808-202106

(L)

main90467-16014×2iMAXA10..D,G,N202106

(J)

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-12010iMAXA10..D,G,N201808-202106

main44777-F4010iMAXA10..D,G,N202210

(L)

44785GASKET, BRAKE BOOSTER

main44785-02050iMAXA10..D,G,N201808-202106

main44785-12040iMAXA10..D,G,N202106

#,(J)

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iMAXA10..D,G,N202106

main47264-F4030iMAXA10..E201808

89420HSENSOR ASSY, VACUUM

main89421-52020iMAXA10..E201808

89420KGROMMET, VACUUM SENSOR

main90080-48071iMAXA10201808

90178C0034

main90178-C0034

9017910065

main90179-10065

9412041000

main94120-41000

9415180800

main94151-80800

16 parts on this diagram · 1 diagram in section
