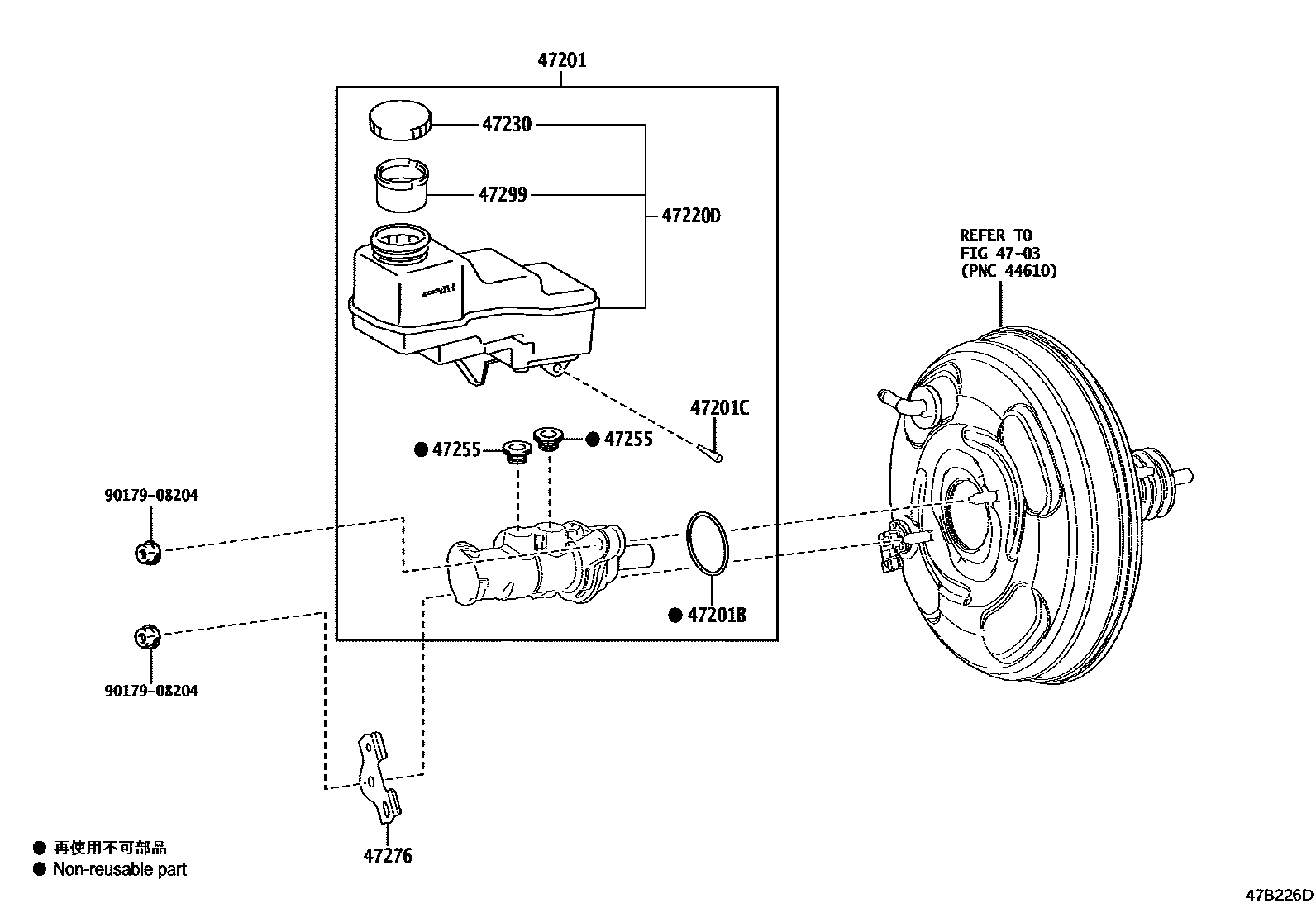

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-F4040iMAXA10..D,G,N201808-202106

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH902iMAXA10..D,G,N201808-202106

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iMAXA10201808

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-F4040iMAXA10..D,G,N201808-202106

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iMAXA10..D,G,N201808-202106

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT002iMAXA10..D,G,N201808-202106

47276BRACKET, BRAKE MASTER CYLINDER

main47276-F4020iMAXA10..D,G,N201808-202106

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMAXA10..D,G,N201808-202106

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
