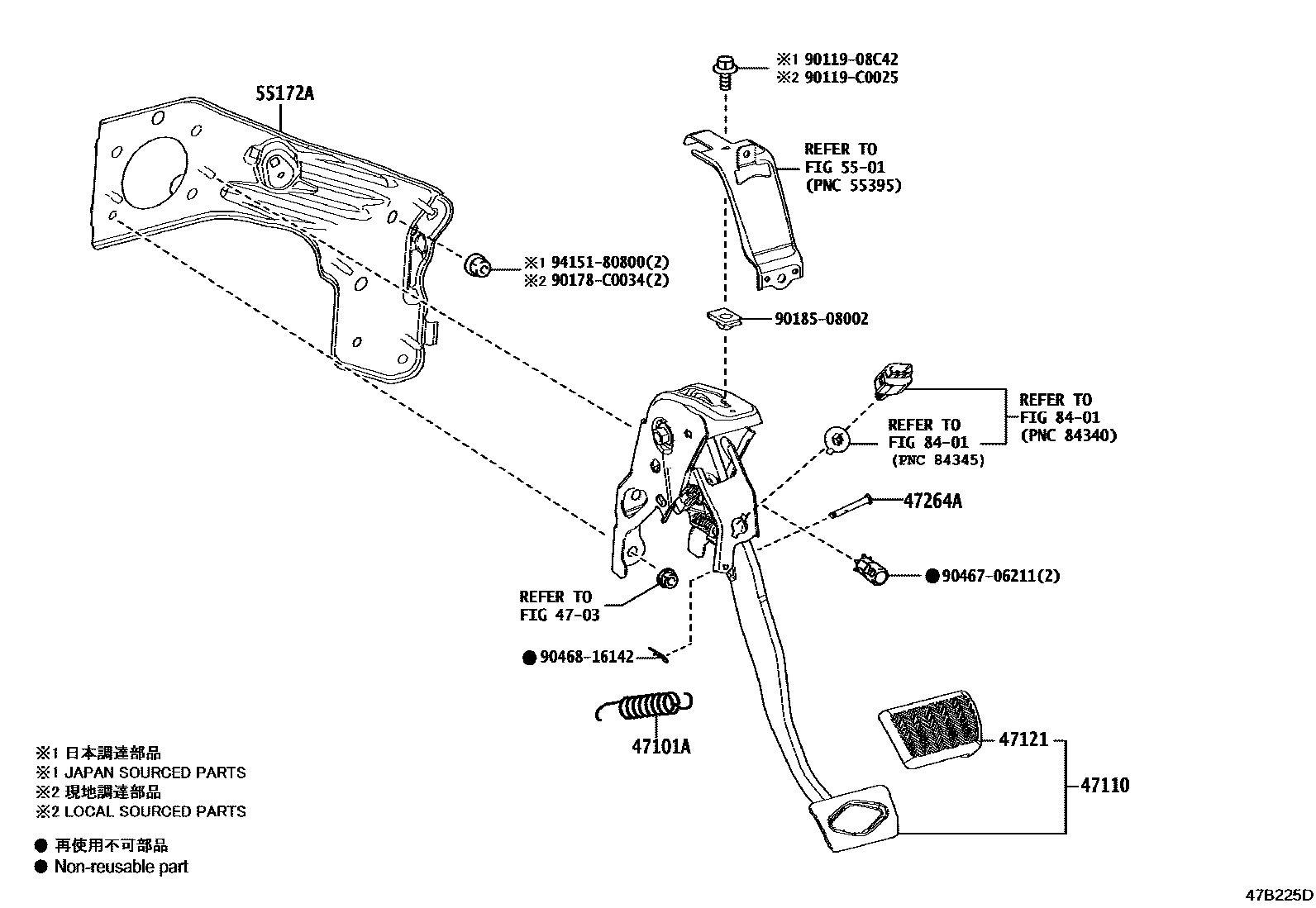

BRAKE PEDAL & BRACKET

0001 1 0002 1

4703

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iMAXA10..D,G,N201808-202106

main90507-16030iMAXH10202106

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0A140iMAXA10..D,G,N202106

main47110-F4140iMAXA10201808

main47110-F4170iMAXH10202106

47121PAD, BRAKE PEDAL

main47121-02180iMAXH10;MAXA10..D,G,N202106

main47121-F4060iMAXA10..D,G,N201808-202106

47264APIN(FOR PUSH ROD)

main90249-06187iMAXA10..D,G,N201901-202106

(J)

main90249-06187iMAXA10201808-201901

main90249-08221iMAXH10;MAXA10..D,G,N202106

main90249-C0005iMAXA10..D,G,N201901-202106

(L)

5501

55172ABASE, BRAKE PEDAL SUPPORT

main55172-F4040iMAXA10..D,G,N201808-202106

8401

9011908C42

main90119-08C42

90119C0025

main90119-C0025

90178C0034

main90178-C0034

9018508002

main90185-08002

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

15 parts on this diagram · 2 diagrams in section
