FRONT DRIVE SHAFT

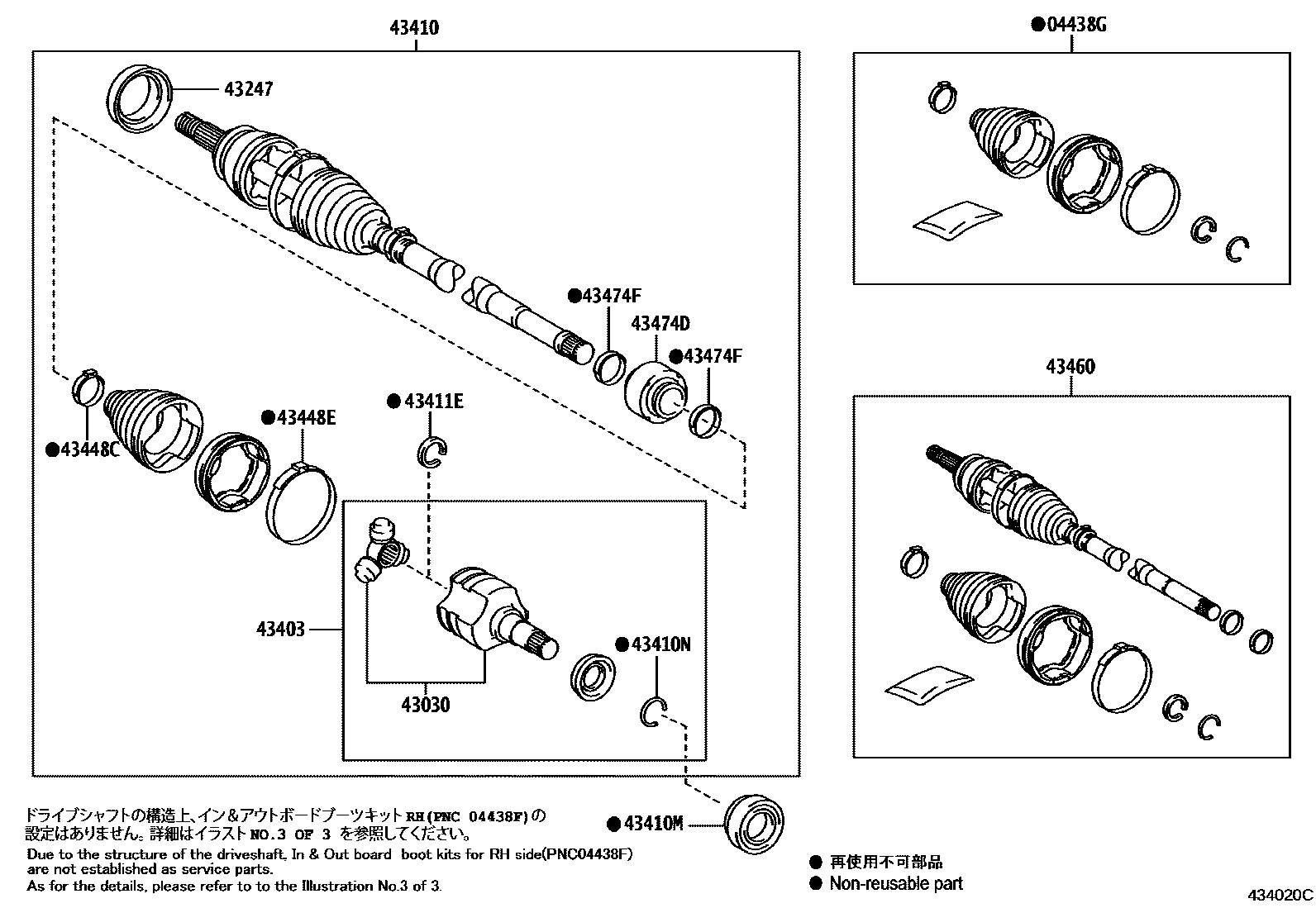

Parts diagram
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
main04437-02620i201808-202106
TYPE A,REF PNC 43410
main04437-02620i202106-202204
main04437-10040i202003-202106
TYPE B,REF PNC 43410
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
main43030-F4050i202204
TYPE B,REF PNC 43410
main43040-12160i202003-202106
(J),TYPE B:REF ILL.
main43040-F4070i202003-202106
(L),TYPE B:REF ILL.
main43040-F4070i202204
TYPE B,REF PNC 43410
main43040-F4090i202106-202204
main43040-F4090i201808-202106
TYPE A:REFER ILLUST.
main43040-F4090i202204
TYPE A,REF PNC 43410
43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2
main43247-47010i202003-202106
(J),TYPE B:REF ILL.
main43247-F4020i202003-202106
(L),TYPE B:REF ILL.
main43247-F4030i202003-202106
TYPE A:REFER ILLUST.
main43247-F4030i201808-202003
43403JOINT SET, FRONT AXLE INBOARD, RH
main43403-F4010i201808-202204
main43403-F4010i202204
FOR GKN
main43403-F4030i202204
FOR NTN
43410SHAFT ASSY, FRONT DRIVE, RH
main43410-0A160i202106-202204
main43410-0A160i202204
TYPE A:REFER ILLUST.
main43410-76020i202003-202106
(J),TYPE B:REF ILL.
main43410-F4080i202204
TYPE B:REFER ILLUST.
main43410-F4080i202003-202106
(L),TYPE B:REF ILL.
main43410-F4090i201808-202106
TYPE A:REFER ILLUST.
main43410-F4170i202204
TYPE B:REFER ILLUST.
43410MOIL SEAL, FRONT DRIVE SHAFT, RH
main90311-40047i201808
main90311-40049i202106
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
main43425-0E300i201808
TYPE A,REF PNC 43410
main43425-0E300i202106-202204
main43425-F4170i202204
TYPE B,REF PNC 43410
main90520-C0040i202003
(L),TYPE B:REF ILL.
main90520-C0040i202204
(L),PNC 43410=TYPE B
main90521-33002i202204
(J),PNC 43410=TYPE B
main90521-33002i202003
TYPE B,REF PNC 43410,(J),TYPE B:REF ILL.
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
main43425-12070i202003-202106
TYPE B,REF PNC 43410,(J),TYPE B:REF ILL.
main43425-12070i202204
(J),PNC 43410=TYPE B
main43425-F4070i201808-202106
TYPE A,REF PNC 43410
main43425-F4070i202106-202204
main43425-F4130i202204
TYPE B,REF PNC 43410
main90520-C0029i202003-202106
(L),TYPE B:REF ILL.
main90520-C0029i202204
(L),PNC 43410=TYPE B
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
main42345-12230i202003
TYPE B,REF PNC 43410
main42345-F4170i202106-202204
main42345-F4170i202204
TYPE A,REF PNC 43410
main42345-F4190i201808
main42345-F4320i202204
TYPE B,REF PNC 43410
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
main42345-12140i202003-202106
TYPE B,REF PNC 43410
sub42345-12180
main42345-F4200i201808-202106
TYPE A,REF PNC 43410
main42345-F4200i202106-202204
main42345-F4330i202204
TYPE B,REF PNC 43410
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
main43460-49465i202003-202106
TYPE B,REF PNC 43410
main43460-F9030i201808-202106
TYPE A,REF PNC 43410
main43460-F9110i202106-202204
43474DDAMPER, FRONT DRIVE SHAFT, RH
main43474-02570i202204
TYPE B,REF PNC 43410
main43474-02570i202003-202106
(L),TYPE B:REF ILL.
main43474-47020i202003-202106
(J),TYPE B:REF ILL.
main43474-F4040i201808-202106
TYPE A,REF PNC 43410
main43474-F4040i202106-202204
main43474-F4150i202204
TYPE B,REF PNC 43410
43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
main42345-02310i202204
TYPE B,REF PNC 43410
main42345-02310i202003
(L),TYPE B:REF ILL.
main42345-12100i202003
(J),TYPE B:REF ILL.
main42345-F4210i202106-202204
main42345-F4210i201808
TYPE A,REF PNC 43410
main42345-F4300i202204
TYPE B,REF PNC 43410

13 parts on this diagram · 18 diagrams in section
