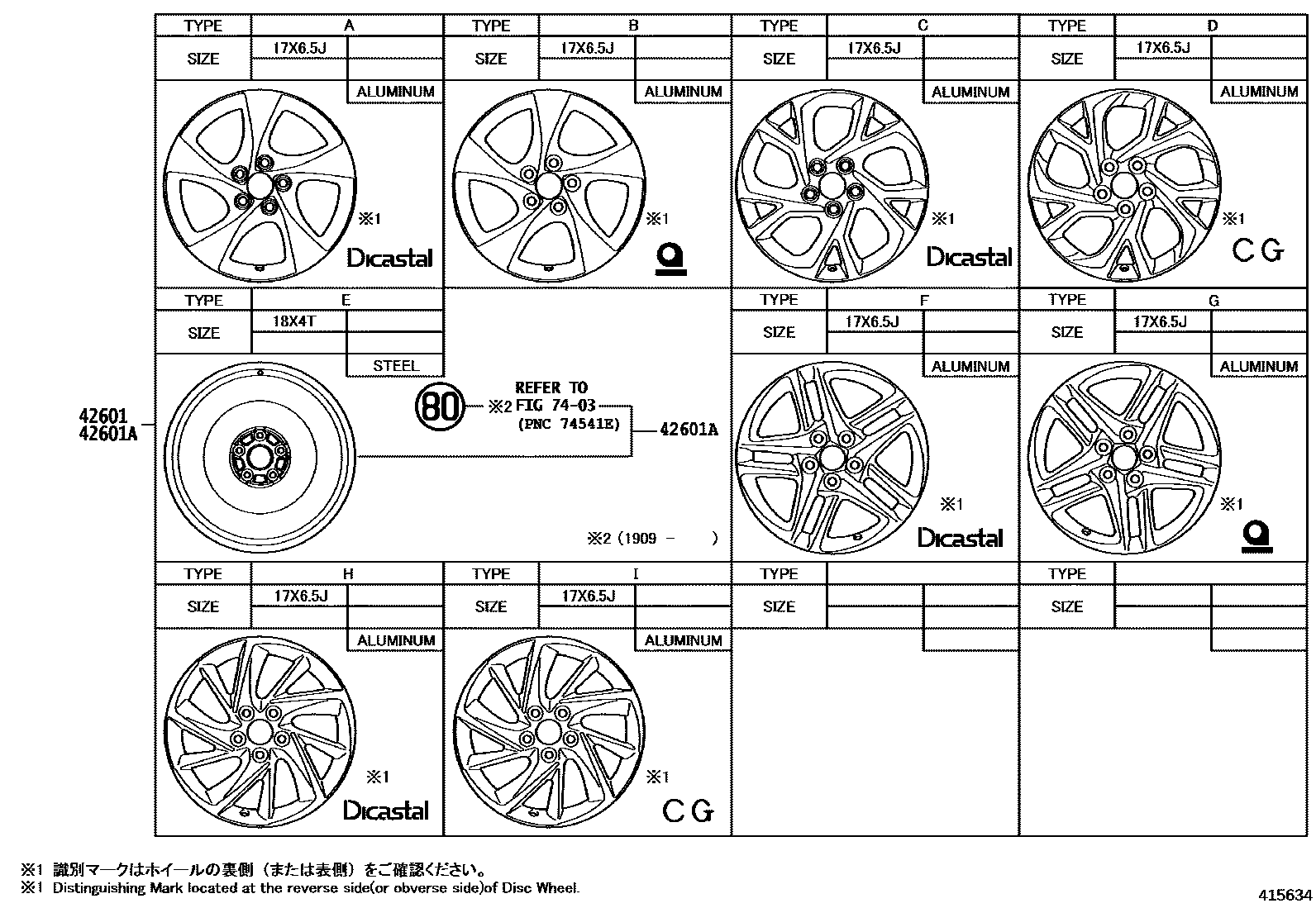

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-F4100iMAXA10..D201808-202106

17X6.5J,#,TYPE A:REFER ILLUST.

main42611-F4110iMAXA10..D201808-202106

17X6.5J,#,TYPE B:REFER ILLUST.

main42611-F4120iMAXA10..E201808-202106

17X6.5J,#,TYPE C:REFER ILLUST.

main42611-F4120iMAXA10..D201911-202106

17X6.5J,#,PLUS PACKAGE,TYPE C:REFER ILLUST.

main42611-F4130iMAXA10..D201911-202106

17X6.5J,#,PLUS PACKAGE,TYPE D:REFER ILLUST.

main42611-F4130iMAXA10..G,N201808-202106

17X6.5J,#,TYPE D:REFER ILLUST.

main42611-F4260iMAXA10,MAXH10..D,N202106-202303

17X6.5J, #,TYPE F:REFER ILLUST.

main42611-F4261iMAXA10,MAXH10..D,N202303

17X6.5J, #,TYPE F:REFER ILLUST.

main42611-F4270iMAXA10,MAXH10..D,N202106-202303

17X6.5J, #,TYPE G:REFER ILLUST.

main42611-F4271iMAXA10,MAXH10..D,N202303

17X6.5J, #,TYPE G:REFER ILLUST.

main42611-F4280iMAXA10..G;MAXH10..E,G202106-202303

17X6.5J, #,TYPE H:REFER ILLUST.

main42611-F4281iMAXA10..G;MAXH10..E,G202303

17X6.5J, #,TYPE H:REFER ILLUST.

main42611-F4290iMAXA10..G;MAXH10..E,G202106-202303

17X6.5J, #,TYPE I:REFER ILLUST.

main42611-F4291iMAXA10..G;MAXH10..E,G202303

17X6.5J, #,TYPE I:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0N110iMAXA10201808-201908

18X4T,TYPE E:REFER ILLUST.

sub42611-0N111

main42611-0N111iMAXA10..D,G,N201909-202303

18X4T,TYPE E:REFER ILLUST.

main4261B-0R030iMAXH10;MAXA10..D,G,N202303

17X4T,TYPE J:REFER ILLUST.

7403

3 parts on this diagram · 3 diagrams in section
