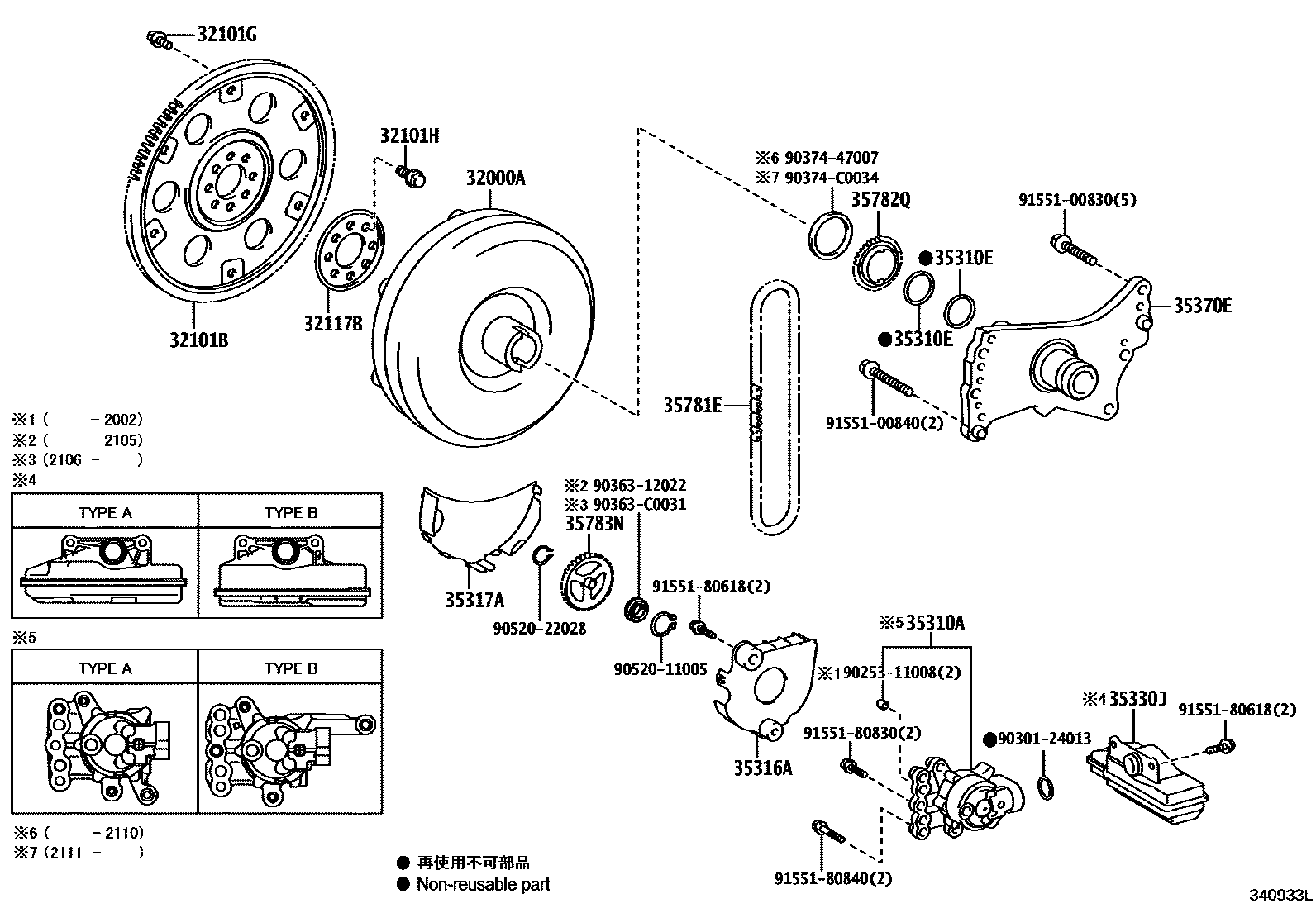

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K120 0002 1K121

32000ACONVERTER ASSY, TORQUE

main32000-0R020iMAXA10..D,G,N202106

main32000-12520iMAXA10¥74,000201808

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0R020iMAXA10..D,G,N202106

main32101-0R020iMAXA10201908

(L)

main32101-12120iMAXA10¥13,400201908

(J)

main32101-12120iMAXA10¥13,400201808-201908

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iMAXA10¥80201808

*9-1.25PX12.4-7.3,BLACK

main90119-09025iMAXA10¥80201808

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iMAXA10..D,G,N¥100201808

32117BSPACER, DRIVE PLATE, REAR

main32117-0R010iMAXA10201908

(L)

main32117-0R010iMAXA10..D,G,N202106

main32117-33010iMAXA10¥920201908

(J)

main32117-33010iMAXA10¥920201808-201908

35310APUMP ASSY, FRONT OIL

main35310-12200iMAXA10..D,G,N¥16,000202106-202303

main35310-12200iMAXA10¥16,000201808-202106

TYPE A:REFER ILLUST.

main35310-28050iMAXA10..E¥14,500202106

TYPE B:REFER ILLUST.

main35310-42010iMAXA10..D,G,N202303

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12060iMAXA10¥160201808-202303

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12010iMAXA10..D,G,N¥980202106-202212

(J)

main35316-12010iMAXA10¥980201808

main35316-F4010iMAXA10..D,G,N202301-202303

(L)

main35316-F4010iMAXA10..D,G,N202303

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12010iMAXA10¥590201808

main35317-12010iMAXA10..D,G,N¥590202106-202212

(J)

main35317-F4010iMAXA10..D,G,N202303

main35317-F4010iMAXA10..D,G,N202301-202303

(L)

35330JSTRAINER ASSY, OIL

main35330-0R020iMAXA10..D,G,N202106-202303

main35330-12080iMAXA10¥3,950201808-202106

TYPE A:REFER ILLUST.

main35330-28040iMAXA10..E¥3,580202106

TYPE B:REFER ILLUST.

main35330-F4010iMAXA10..D,G,N202303

35370ESHAFT ASSY, STATOR (CVT)

main35370-12120iMAXA10..D,G,N¥14,900201808

35781ECHAIN, TRANSMISSION DRIVE

main35781-0R020iMAXA10..D,G,N202207

main35781-12010iMAXA10..D,G,N¥5,100201808-202206

35782QSPROCKET, DRIVE

main35782-0R050iMAXA10..D,G,N202106

main35782-12070iMAXA10¥2,380201808

35783NSPROCKET, DRIVEN

main35783-12060iMAXA10¥1,310201808

9025311008

main90253-11008¥70

9030124013

main90301-24013¥140

9036312022

main90363-12022¥640

90363C0031

main90363-C0031

9037447007

main90374-47007¥1,120

90374C0034

main90374-C0034

9052011005

main90520-11005¥70

9052022028

main90520-22028¥90

9155100830

main91551-00830¥80

9155100840

main91551-00840¥80

9155180618

main91551-80618¥60

9155180830

main91551-80830¥80

9155180840

main91551-80840¥120

27 parts on this diagram · 2 diagrams in section
