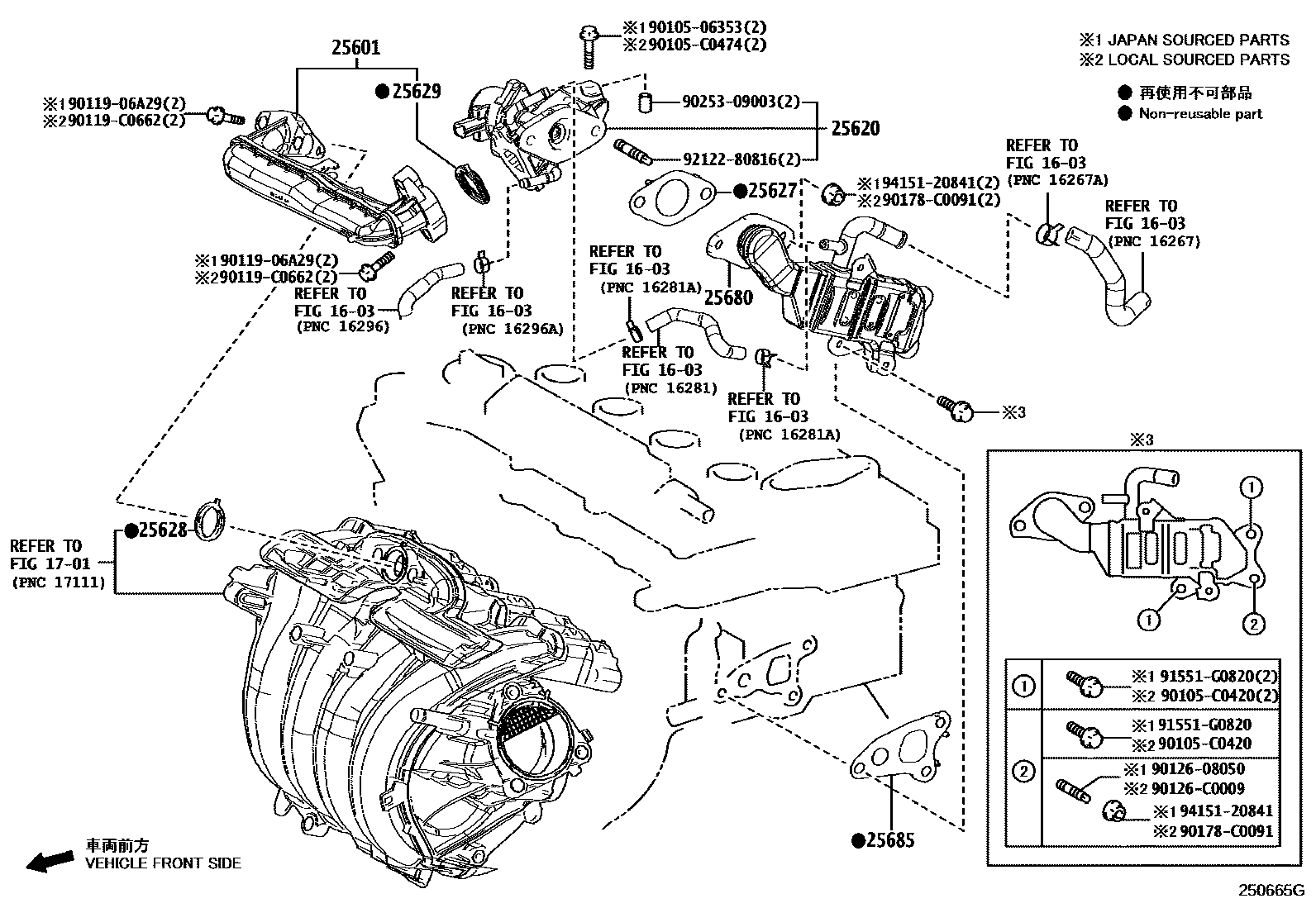

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-F2030supersedes 25601-F2030iM20..MAXH10;M20..MAXA10..D,G,N202106

25620VALVE ASSY, EGR

main25620-F2060supersedes 25620-F2060iM20..MAXH10;M20..MAXA10..D,G,N202106

25627GASKET, EGR VALVE

main25627-F2020supersedes 25627-F2020iM20..MAXH10;M20..MAXA10..D,G,N202106

25628GASKET, EGR INLET

main25628-25010supersedes 25628-25010iM20..MAXH10;M20..MAXA10..D,G,N202106

25629GASKET, EGR VALVE ADAPTER

main25629-25010supersedes 25629-25010iM20..MAXH10;M20..MAXA10..D,G,N202106

25680COOLER ASSY, EGR

main25680-24040iM20..MAXH10202106-202212

main25680-F2020supersedes 25680-F2020iM20..MAXA10..D,G,N202106

main25680-F2050iM20..MAXH10202212

(L)

25685GASKET, EGR COOLER, NO.1

main25685-F2010supersedes 25685-F2010iM20..MAXH10;M20..MAXA10..D,G,N202106

9010506353

main90105-06353

90105C0420

main90105-C0420

90105C0474

main90105-C0474

9011906A29

main90119-06A29

90119C0662

main90119-C0662

9012608050

main90126-08050

90126C0009

main90126-C0009

90178C0091

main90178-C0091

9025309003

main90253-09003

91551G0820

main91551-G0820

9212280816

main92122-80816

9415120841

main94151-20841

21 parts on this diagram · 2 diagrams in section
