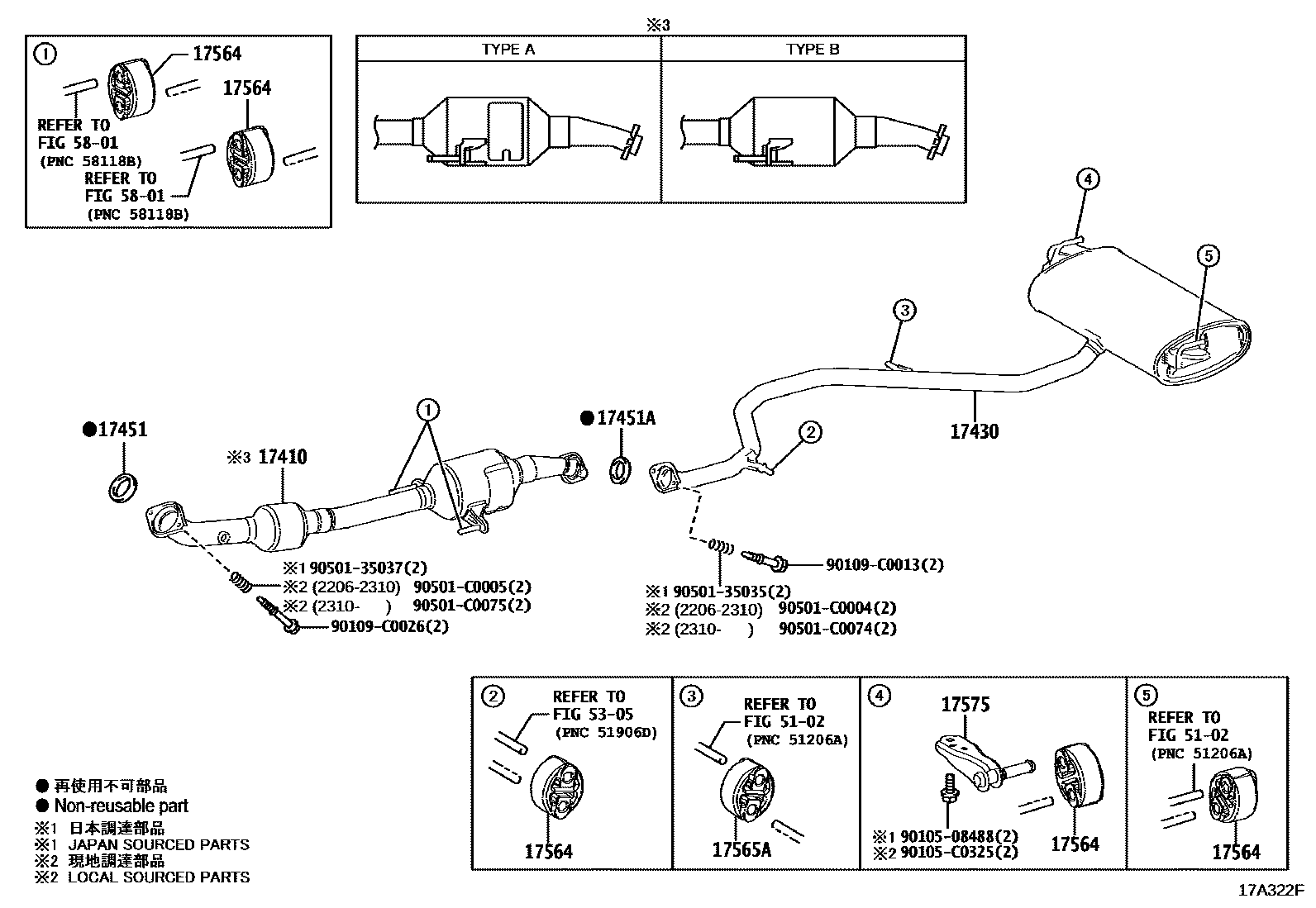

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-F2080iM20..MAXA10201808-202103

TYPE A:REFER ILLUST.

main17410-F2081iM20..MAXA10202103

TYPE B:REFER ILLUST.

main17410-F2081iM20..MAXA10..D,G,N202106-202303

main17410-F2350iM20..MAXH10202106-202303

main17410-F2600iM20..MAXA10..D,G,N202303

main17410-F2610iM20..MAXH10202303

17430PIPE ASSY, EXHAUST, TAIL

main17430-F2060iM20..MAXA10..E201808-202106

main17430-F2230iM20..MAXH10202106

17451GASKET, EXHAUST PIPE

main17451-0T010iM20..MAXA10201808-202101

TYPE A,REF PNC 17410

main17451-0T010iM20..MAXH10202106

main17451-0T050iM20..MAXA10202102

TYPE B,REF PNC 17410

main17451-0T050iM20..MAXA10..D,G,N202106

17451AGASKET, EXHAUST PIPE, NO.2

main17451-0T031iM20..MAXH10202106

main17451-0T031iM20..MAXA10201808-202101

TYPE A,REF PNC 17410

main17451-0T080iM20..MAXA10202102

TYPE B,REF PNC 17410

main17451-0T080iM20..MAXA10..D,G,N202106

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-0H080iM20..MAXA10..D,G,N201808-202106

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0H090iM20..MAXA10..D,G,N201808-202106

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-F2030iM20..MAXA10..D,G,N201808-202106

5102

5305

5801

9010508488

main90105-08488

90105C0325

main90105-C0325

90109C0013

main90109-C0013

90109C0026

main90109-C0026

9050135035

main90501-35035

9050135037

main90501-35037

90501C0004

main90501-C0004

90501C0005

main90501-C0005

90501C0074

main90501-C0074

90501C0075

main90501-C0075

20 parts on this diagram · 2 diagrams in section
