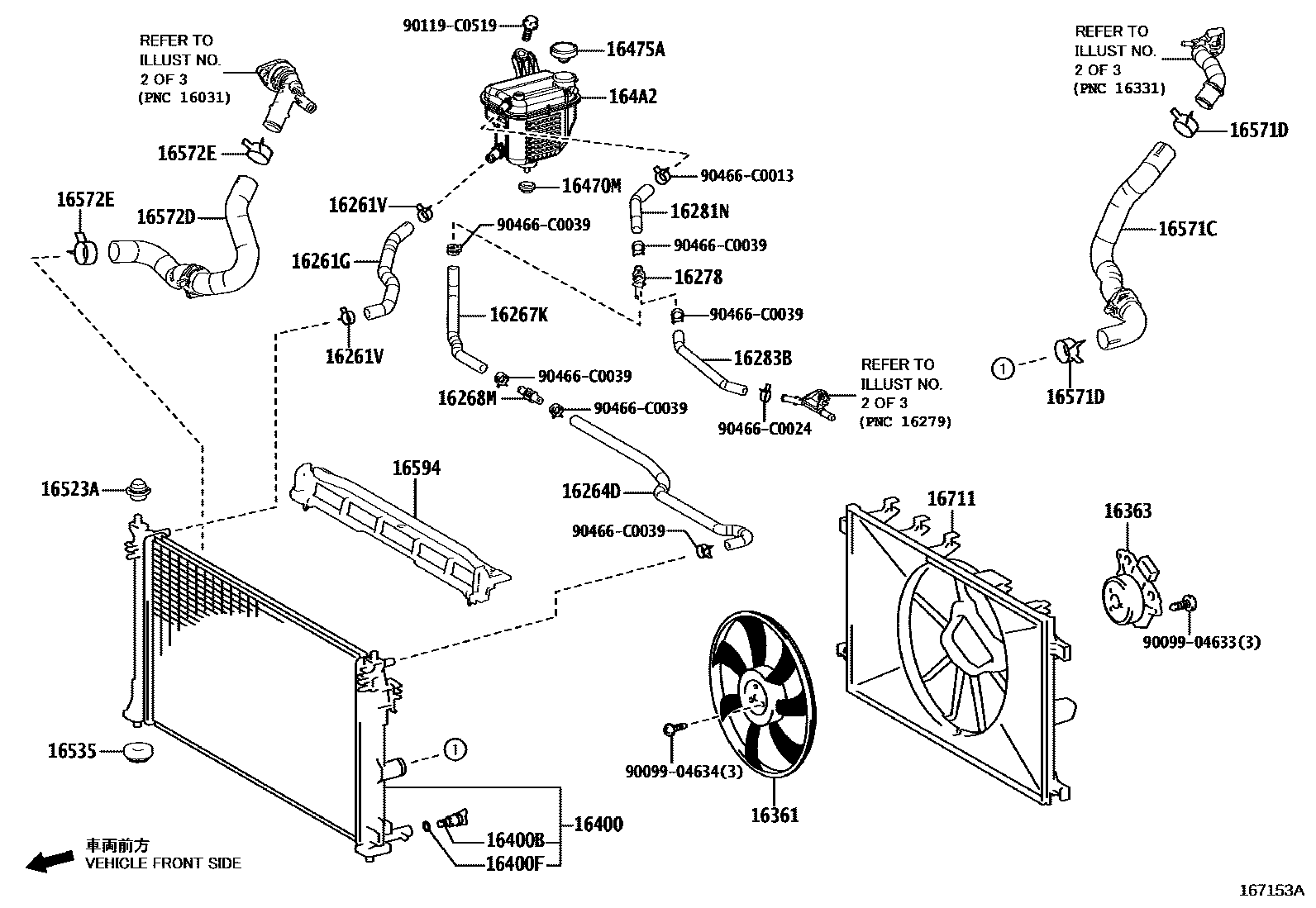

RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
16261VCLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
*132
*600
ENGINE-M20A-FKS,*600
16264DHOSE, WATER BY-PASS, NO.2
16267HOSE, WATER BY-PASS, NO.3
*132
(J)
(L)
ENGINE-M20A-FKS,*600
*600
16267KHOSE, WATER BY-PASS, NO.3
16268PIPE, WATER BY-PASS, NO.1
*132
*600
ENGINE-M20A-FKS,*600
16268MPIPE, WATER BY-PASS, NO.3
16278PIPE, WATER BY-PASS, NO.2
16281HOSE, WATER BY-PASS, NO.4
*132
*600
ENGINE-M20A-FKS,*600
16281NHOSE, WATER BY-PASS, NO.4
16283HOSE, WATER BY-PASS, NO.6
*132
(J)
ENGINE-M20A-FKS,*600
*600
(L)
16283BHOSE, WATER BY-PASS
16363MOTOR, COOLING FAN
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
(J)
(L)
16475ACAP, RESERVE TANK
(L)
(J)
164A2TANK, RESERVE SEALED W/O CAP
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
(J)
(L)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16594GUIDE, RADIATOR AIR, NO.2
9009904633
main90099-04633
9009904634
main90099-04634
90119C0519
main90119-C0519
90466C0013
main90466-C0013
90466C0024
main90466-C0024
90466C0039
main90466-C0039
36 parts on this diagram · 7 diagrams in section
