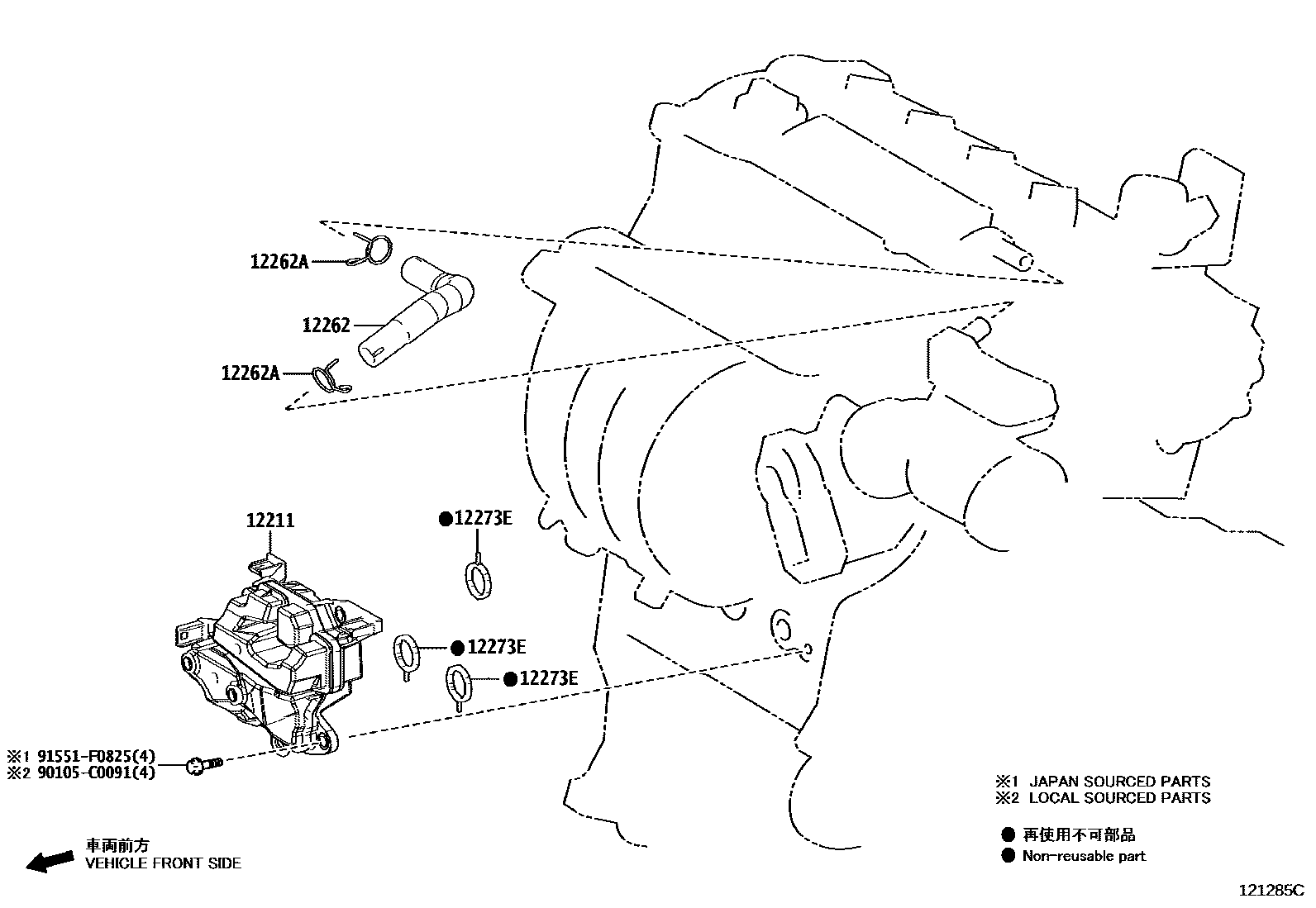

VENTILATION HOSE

0001 1 0002 1

12211CASE, VENTILATION, NO.1

main12211-F2030supersedes 12211-F2030iM20..MAXH10;M20..MAXA10..D,G,N202106

12262HOSE, VENTILATION, NO.2

main12262-24020iM20..MAXA10..D,G,N201808-202106

main12262-24030iM20..MAXH10202106

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004×2iM20..MAXH10;M20..MAXA10..D,G,N202106

12273EGASKET(FOR VENTILATION CASE)

main12273-F2020×3supersedes 12273-F2020iM20..MAXH10;M20..MAXA10..D,G,N202106

90105C0091

main90105-C0091

91551F0825

main91551-F0825

6 parts on this diagram · 2 diagrams in section
