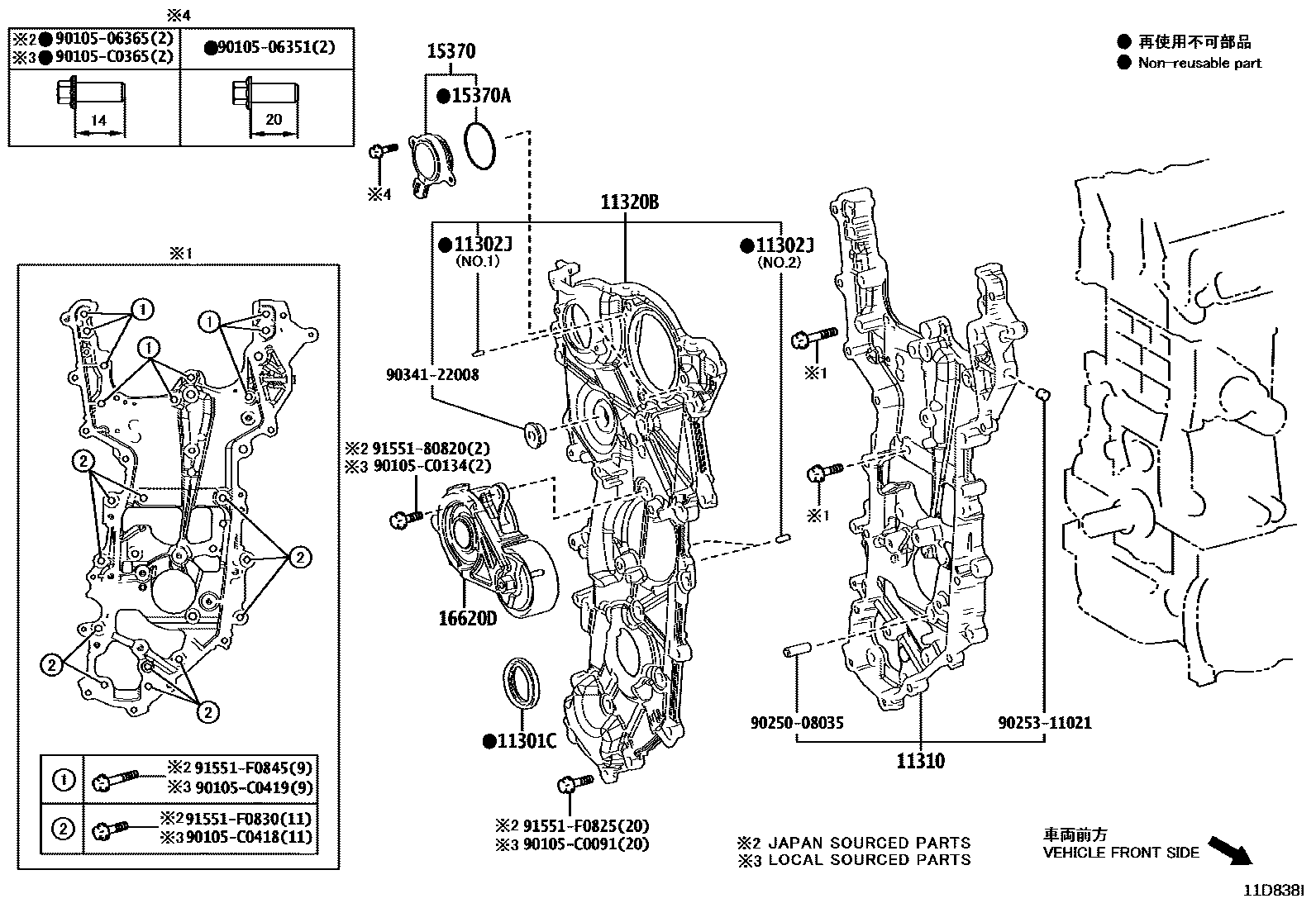

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-C0054supersedes 90311-C0054iM20..MAXH10;M20..MAXA10..D,G,N202106

11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-06003×2iM20..MAXH10;M20..MAXA10..D,G,N202106

NO.2:REFER ILLUST.

main90250-C0009×2supersedes 90250-C0009iM20..MAXH10;M20..MAXA10..D,G,N202106

NO.1:REFER ILLUST.

11310COVER ASSY, TIMING CHAIN

main11310-F2040supersedes 11310-F2040iM20..MAXH10;M20..MAXA10..D,G,N202106

11320BCOVER ASSY, TIMING CHAIN, NO.2

main11320-F2040supersedes 11320-F2040iM20..MAXH10;M20..MAXA10..D,G,N202106

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-25020supersedes 15370-25020iM20..MAXH10;M20..MAXA10..D,G,N202106-202204

*600

main15370-F2020iM20..MAXA10..E202204

(L)

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

main90301-44006supersedes 90301-44006iM20..MAXH10;M20..MAXA10..D,G,N202204

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-F2040supersedes 16620-F2040iM20..MAXA10..D,G,N202106-202303

main16620-F2070iM20..MAXA10..D,G,N202303

9010506351

main90105-06351

9010506365

main90105-06365

90105C0091

main90105-C0091

90105C0134

main90105-C0134

90105C0365

main90105-C0365

90105C0418

main90105-C0418

90105C0419

main90105-C0419

9025008035

main90250-08035

9025311021

main90253-11021

9034122008

main90341-22008

9155180820

main91551-80820

91551F0825

main91551-F0825

91551F0830

main91551-F0830

91551F0845

main91551-F0845

21 parts on this diagram · 2 diagrams in section
