SHORT BLOCK ASSEMBLY

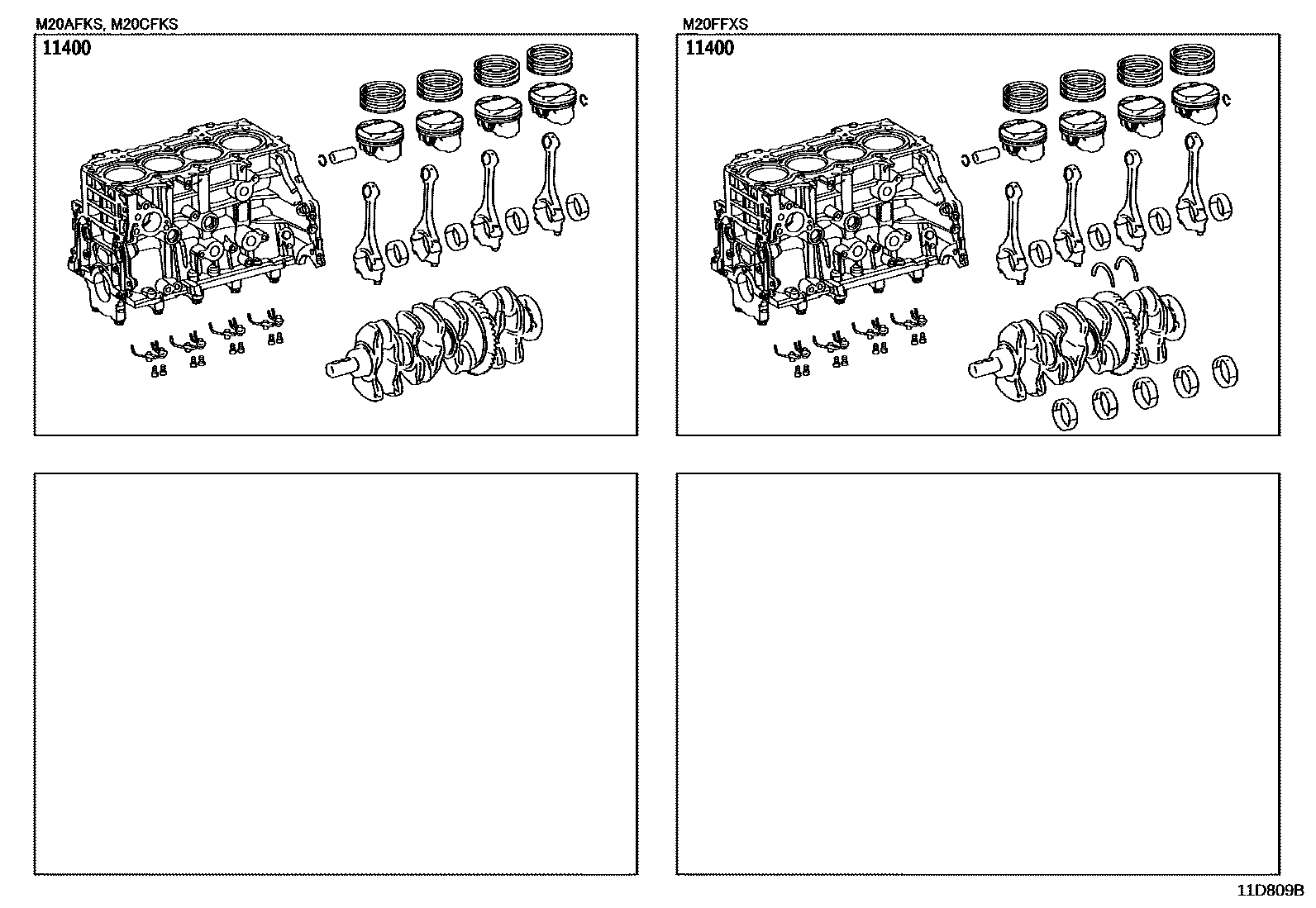

Parts diagram

11400BLOCK ASSY, SHORT

main11400-24040i201808-201908

*132

main11400-F2080i201908-202106

*743

main11400-F2130i202106

*743

main11400-F2140i202106

1 parts on this diagram · 1 diagram in section
