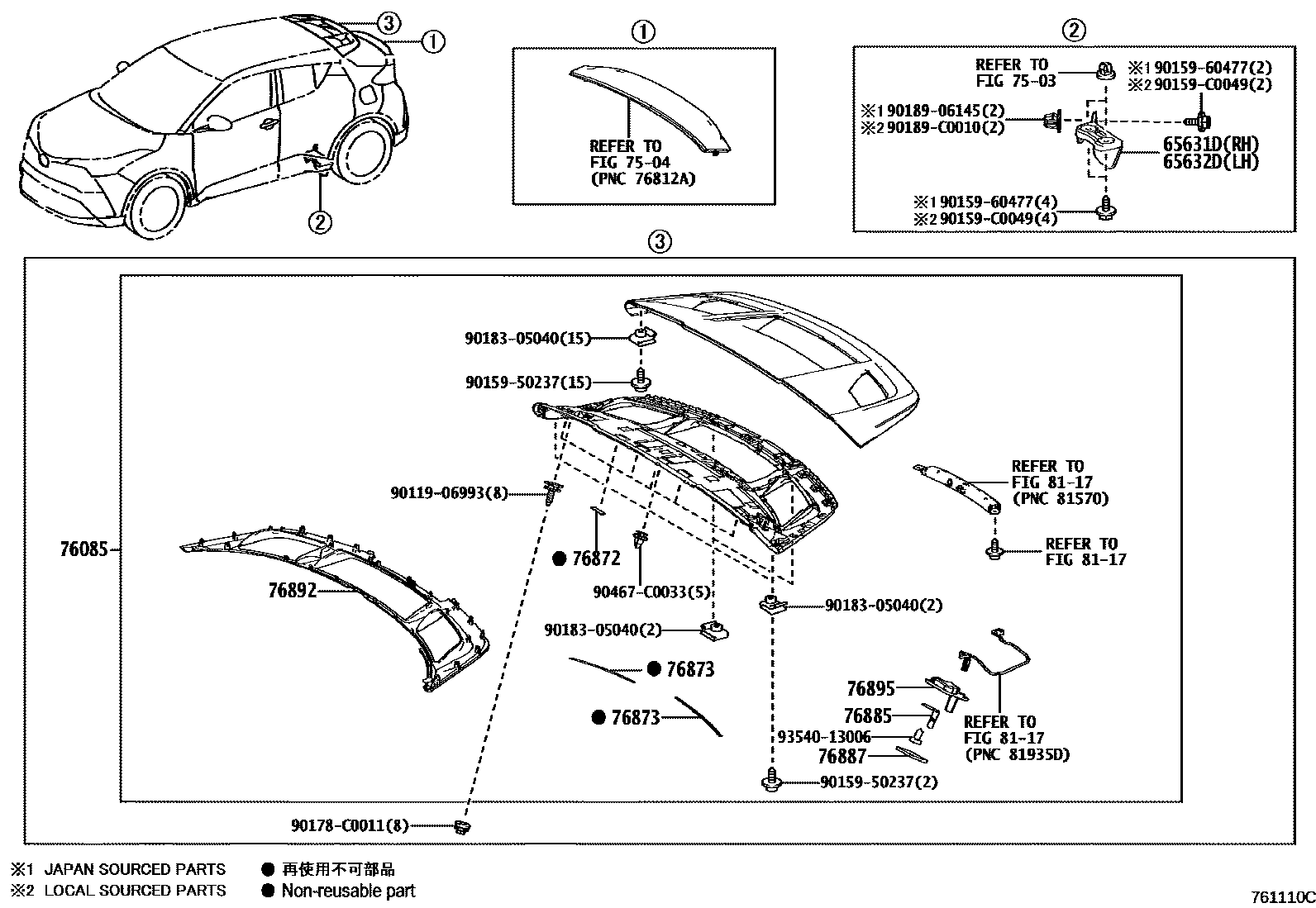

MUDGUARD & SPOILER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-F4020iMAXA10201807-202105

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-F4020iMAXA10201807-202105

7503

7504

76085SPOILER SUB-ASSY, REAR

main76085-F4030-A0iMAXA10201807-202105

WHITE,2ND ,2NE ,2QG

main76085-F4030-A1iMAXA10201807-202105

WHITE PEARL CS.,070

main76085-F4030-A2iMAXA10,MAXH10202105

PLATINUM WHITE PEARL MC.,089

main76085-F4030-B0iMAXA10201807-202105

METAL STREAM ME,1K0

main76085-F4030-B0iMAXA10,MAXH10202105

METAL STREAM ME,1K0 ,2TA ,2TD

main76085-F4030-C1iMAXA10201807-202105

BLACK MC.,209 ,2KR ,2PN ,2UY

main76085-F4030-C1iMAXA10,MAXH10202105

BLACK MC.,209 ,2PN ,2PP ,2PU ,2RF ,2UY

main76085-F4030-D0iMAXA10,MAXH10202005-202105

RED MC.,3T3

main76085-F4030-E0iMAXA10201807-202105

DK. BROWN M.M.,4U3

main76085-F4030-G0iMAXA10,MAXH10202105

OXIDE BRONZE ME.,6X1

main76085-F4030-J1iMAXA10,MAXH10202105

NEBULA BLUE ME.,8X2

76872PROTECTOR, REAR SPOILER, NO.1

main76872-F4030iMAXA10201807-202105

76873PROTECTOR, REAR SPOILER, NO.2

main76873-F4030iMAXA10201807-202105

76885RETAINER, REAR SPOILER, NO.5

main76885-F4030iMAXA10201807-202105

76887SEAL, REAR SPOILER

main76887-F4030iMAXA10201807-202105

76892SPOILER, REAR NO.2

main76892-F4030iMAXA10201807-202105

76895PROTECTOR, REAR SPOILER, NO.5

main76895-F4030iMAXA10201807-202105

8117

9011906993

main90119-06993

9015950237

main90159-50237

9015960477

main90159-60477

90159C0049

main90159-C0049

90178C0011

main90178-C0011

9018305040

main90183-05040

9018906145

main90189-06145

90189C0010

main90189-C0010

90467C0033

main90467-C0033

9354013006

main93540-13006

22 parts on this diagram · 1 diagram in section
