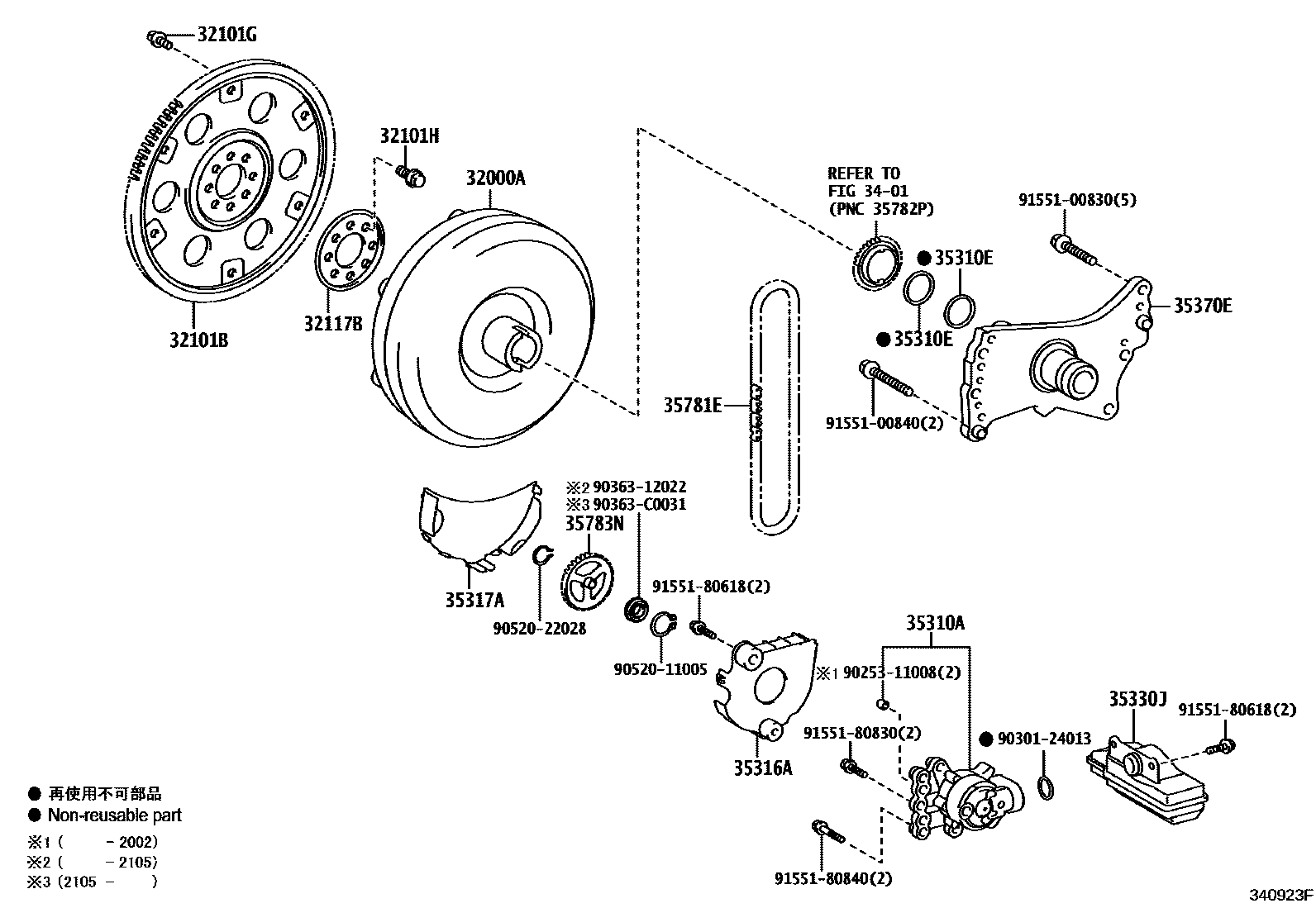

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K120 0002 1K121

32000ACONVERTER ASSY, TORQUE

main32000-0R020iMAXA10202105

main32000-12520iMAXA10201807-202105

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0R020iMAXA10202102-202105

(L)

main32101-12120iMAXA10202105

(J)

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iMAXA10201807-202105

*9-1.25PX12.4-7.3,BLACK

main90119-09025×5iMAXA10202105

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404×8iMAXA10201807-202105

main90105-C0352×8iMAXA10202105

(L)

32117BSPACER, DRIVE PLATE, REAR

main32117-0R010iMAXA10202105

(L)

main32117-33010iMAXA10202104-202105

3401

35310APUMP ASSY, FRONT OIL

main35310-12200iMAXA10201807-202105

main35310-42010iMAXA10202304

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12060×2iMAXA10201807-202105

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12010iMAXA10201807-202105

main35316-F4010iMAXA10202301-202304

(L)

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12010iMAXA10201807-202105

main35317-F4010iMAXA10202301-202304

(L)

35330JSTRAINER ASSY, OIL

main35330-0R020iMAXA10202105-202304

main35330-12080iMAXA10201807-202105

main35330-F4010iMAXA10202304

35370ESHAFT ASSY, STATOR (CVT)

main35370-12120iMAXA10202105

35781ECHAIN, TRANSMISSION DRIVE

main35781-0R020iMAXA10202207

main35781-12010iMAXA10201807-202105

35783NSPROCKET, DRIVEN

main35783-12060iMAXA10201807-202105

9025311008

main90253-11008

9030124013

main90301-24013

9036312022

main90363-12022

90363C0031

main90363-C0031

9052011005

main90520-11005

9052022028

main90520-22028

9155100830

main91551-00830

9155100840

main91551-00840

9155180618

main91551-80618

9155180830

main91551-80830

9155180840

main91551-80840

25 parts on this diagram · 2 diagrams in section
