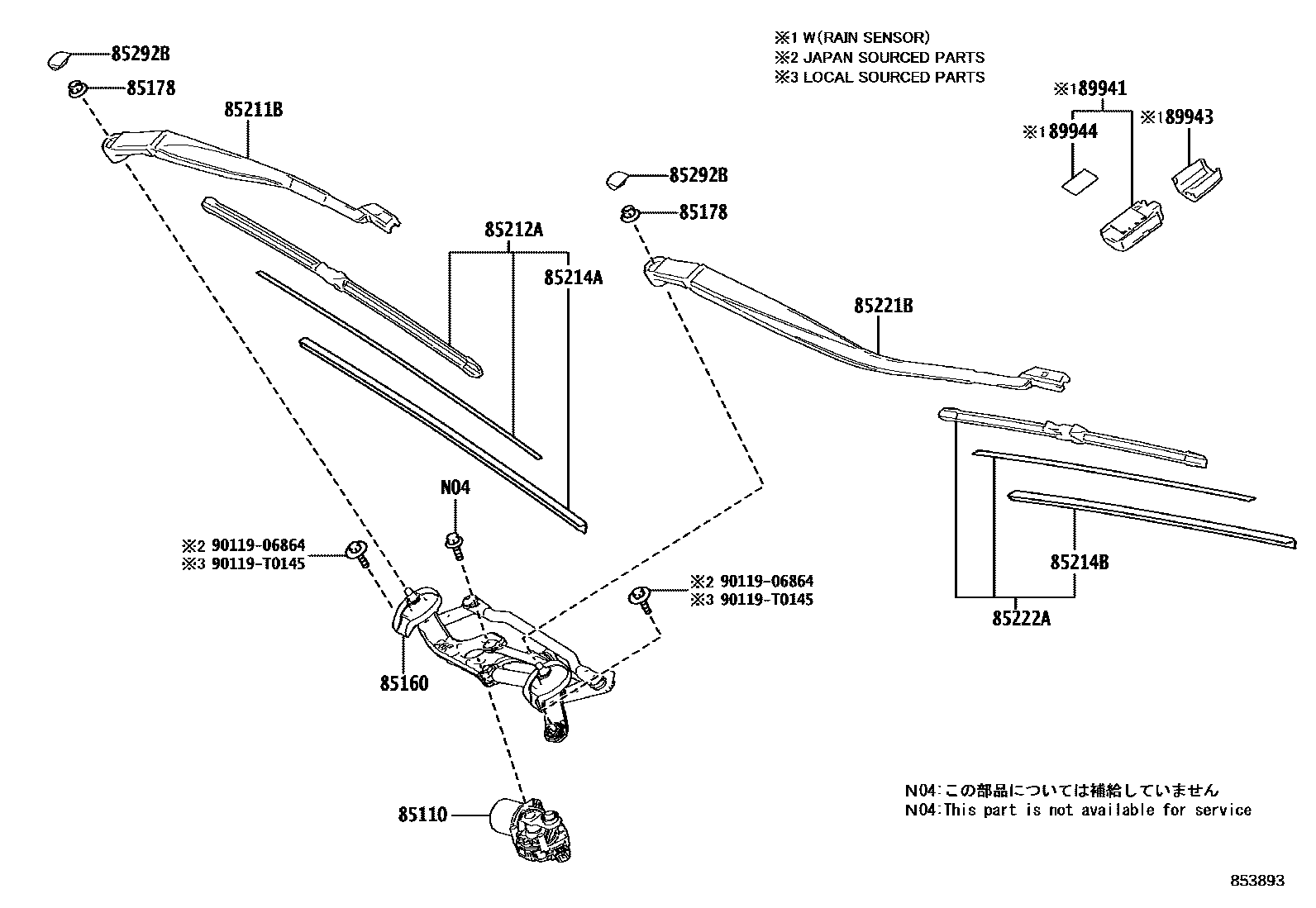

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-F4060iZGX11..TH201802-202105

85160LINK ASSY, WINDSHIELD WIPER

main85150-F4050iZGX11..TH201802-202105

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iZYX10201802-202105

(J)

main90182-T0029iZGX11..IDN,MA201802-202105

(L)

85211BARM, FRONT WIPER, RH

main85211-10150iZGX11..TH201802-202105

85212ABLADE, FR WIPER, RH

main85212-10170iZGX11..TH201802-202105

85214ARUBBER, WIPER, RH

main85214-10140iZGX11..TH201802-202105

85214BRUBBER, WIPER, LH

main85214-78010iZGX11..IDN,MA201802-202105

85221BARM, FRONT WIPER, LH

main85221-10160iZGX11..TH201802-202105

85222ABLADE, FR WIPER, LH

main85222-10270iZGX11..TH201802-202105

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030iZGX11..TH201802-202105

89941SENSOR, RAIN

main89941-10010iZYX10..E;ZGX11..MA201802-201906

main89941-48080iZGX11..MA201906-202105

89943COVER, RAIN SENSOR

main89943-10010iZYX10..E;ZGX11..MA201802-201906

main89943-10020iZGX11..MA201906-202105

89944TAPE, RAIN SENSOR

main89944-42020iZYX10..G201808-202105

main89944-48010iZYX10..E;ZGX11..MA201802-201807

9011906864

main90119-06864

90119T0145

main90119-T0145

15 parts on this diagram · 1 diagram in section
