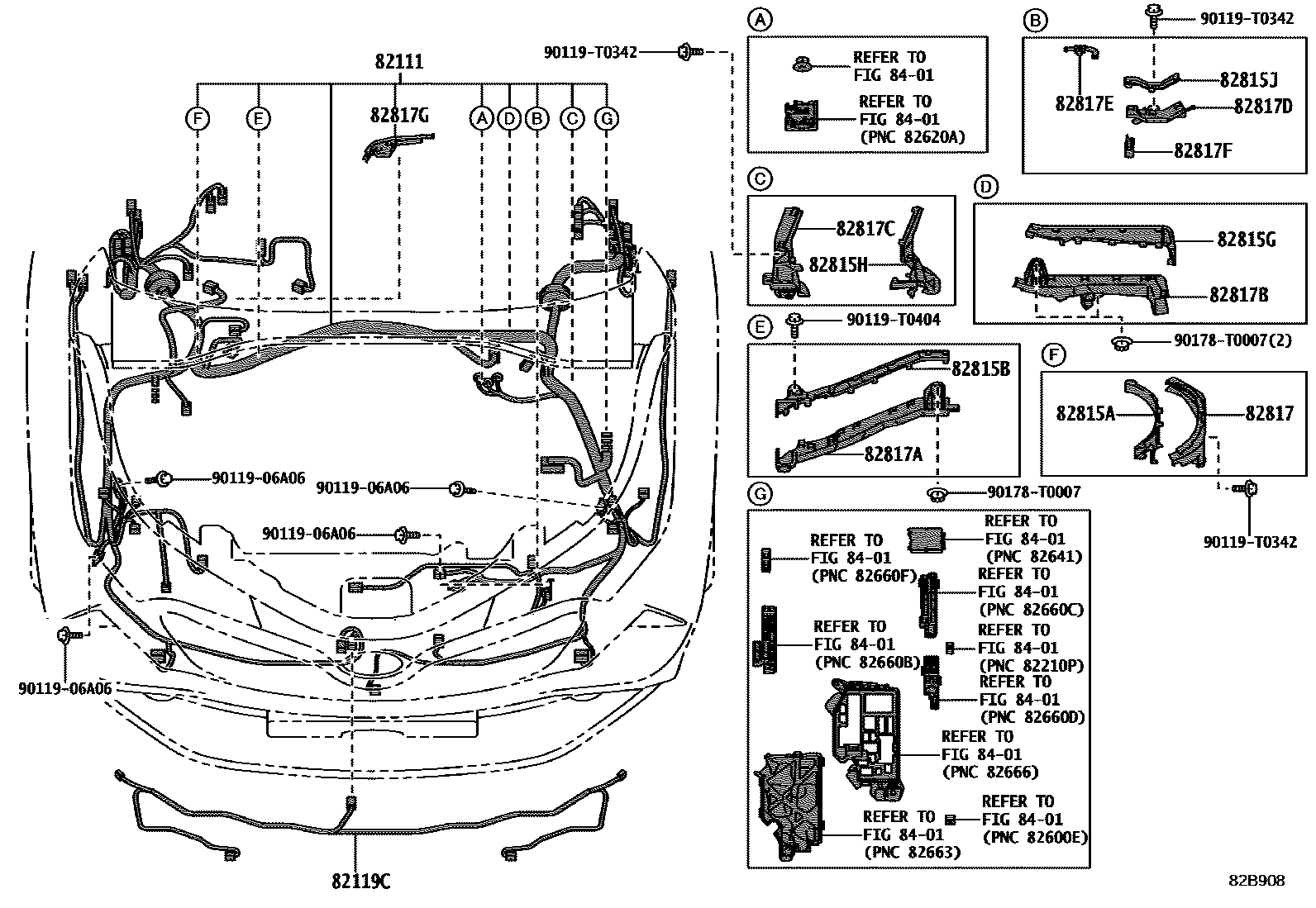

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1HIGH TENSION CABLE 0009 1SEAT 0010 1CLAMP & BRACKET 0011 1CONNECTOR 1/2 0012 1CONNECTOR 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-F4L10iZGX11..TH201802-202006

main82111-F4L20iZYX10..G201802-202106

main82111-F4L30iZYX10..E201802-202106

main82111-F4M10iZGX11..IDN,MA201802-202105

main82111-F4U50iZYX10202106

82119CWIRE, ENGINE ROOM, NO.5

main82119-F4060iZYX10202106

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-12J00iZGX11¥520202002-202105

main82815-47880iZYX10¥400201802

main82815-F4240iZGX11¥870201802-202001

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-12L90iZGX11¥1,970202002-202105

main82815-47C20iZYX10¥500201802

main82815-F4250iZGX11¥2,380201802-202001

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-12L80iZGX11¥1,800202002-202105

main82815-47C90iZYX10¥980201802

main82815-F4260iZGX11¥2,380201802-202001

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-12L70iZGX11¥1,200202002-202105

main82815-47D00iZYX10¥650201802

main82815-F4270iZGX11¥1,610201802-202001

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-12L40iZGX11¥350202002-202105

main82815-47D30iZYX10¥1,070201802

main82815-F4280iZGX11¥470201802-202001

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12W50iZGX11¥1,060202002-202105

main82817-47N30iZYX10¥520201802

main82817-F4270iZGX11¥8,900201802-202001

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-12Z80iZGX11¥1,600202002-202105

main82817-47N40iZYX10¥890201802

main82817-F4280iZGX11¥2,120201802-202001

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-12Z70iZGX11¥1,600202002-202105

main82817-47N60iZYX10¥1,340201802

main82817-F4290iZGX11¥2,120201802-202001

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-12Z60iZGX11¥1,480202002-202105

main82817-47N70iZYX10¥970201802

main82817-F4300iZGX11¥1,920201802-202001

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-12Z20iZGX11¥520202002-202105

main82817-47P00iZYX10¥1,600201802

main82817-F4310iZGX11¥700201802-202001

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-47P10iZYX10¥920201802

main82817-F4320iZGX11¥220201802-202105

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-12Z50iZGX11..IDN,MA¥230202002-202105

main82817-F4470iZGX11¥320201802-202001

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-F4530iZGX11,ZYX10..TH¥360201802-202105

8401

9011906A06

main90119-06A06¥60

90119T0342

main90119-T0342

90119T0404

main90119-T0404

90178T0007

main90178-T0007¥80

20 parts on this diagram · 12 diagrams in section
