REAR COMBINATION LAMP
6101
81496GUIDE, REAR COMBINATION LAMP
81496BGUIDE, REAR LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81497COVER, REAR COMBINATION LAMP, RH
81498COVER, REAR COMBINATION LAMP, LH
81536ALED, REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
81550LBULB, REAR TURN SIGNAL LAMP
12V 21W,AMBER
81550NBULB, BACK UP LAMP
12V 16W
81550PSOCKET, BACK UP LAMP
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81552CGASKET, REAR COMBINATION LAMP
81555HSOCKET & WIRE, REAR COMBINATION LAMP
81560LAMP ASSY, REAR COMBINATION, LH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81580DLAMP ASSY, REAR, RH
81581CLENS AND BODY, REAR LAMP, RH
81584PACKING, REAR LAMP RH
81590ALAMP ASSY, REAR, LH
81591BLENS AND BODY, REAR LAMP, LH
81594AGASKET, REAR LAMP LH
9007502064
main90075-02064
9015960621
main90159-60621
9017605023
main90176-05023
90178T0049
main90178-T0049
9017905102
main90179-05102
9018906235
main90189-06235

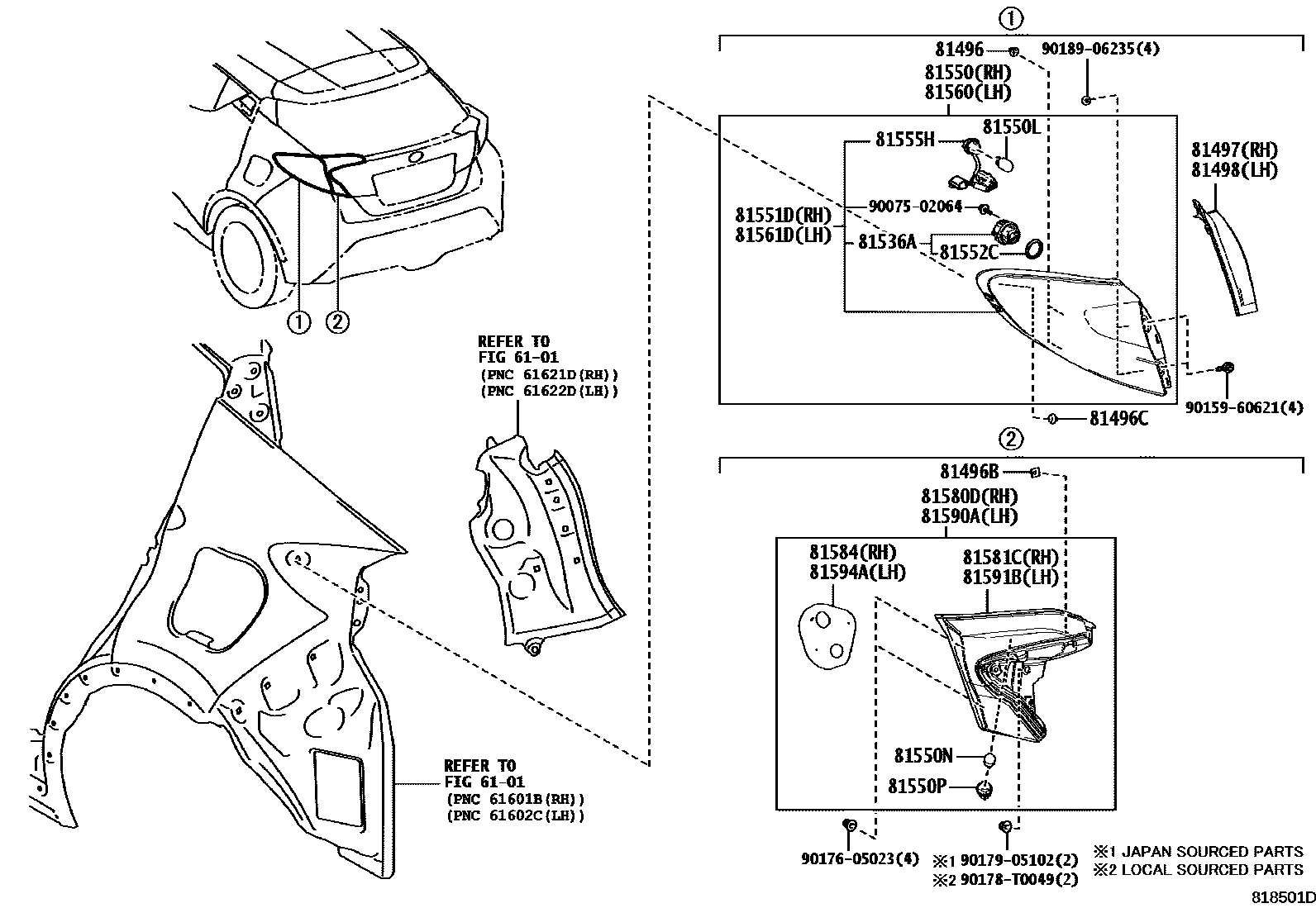

28 parts on this diagram · 2 diagrams in section
