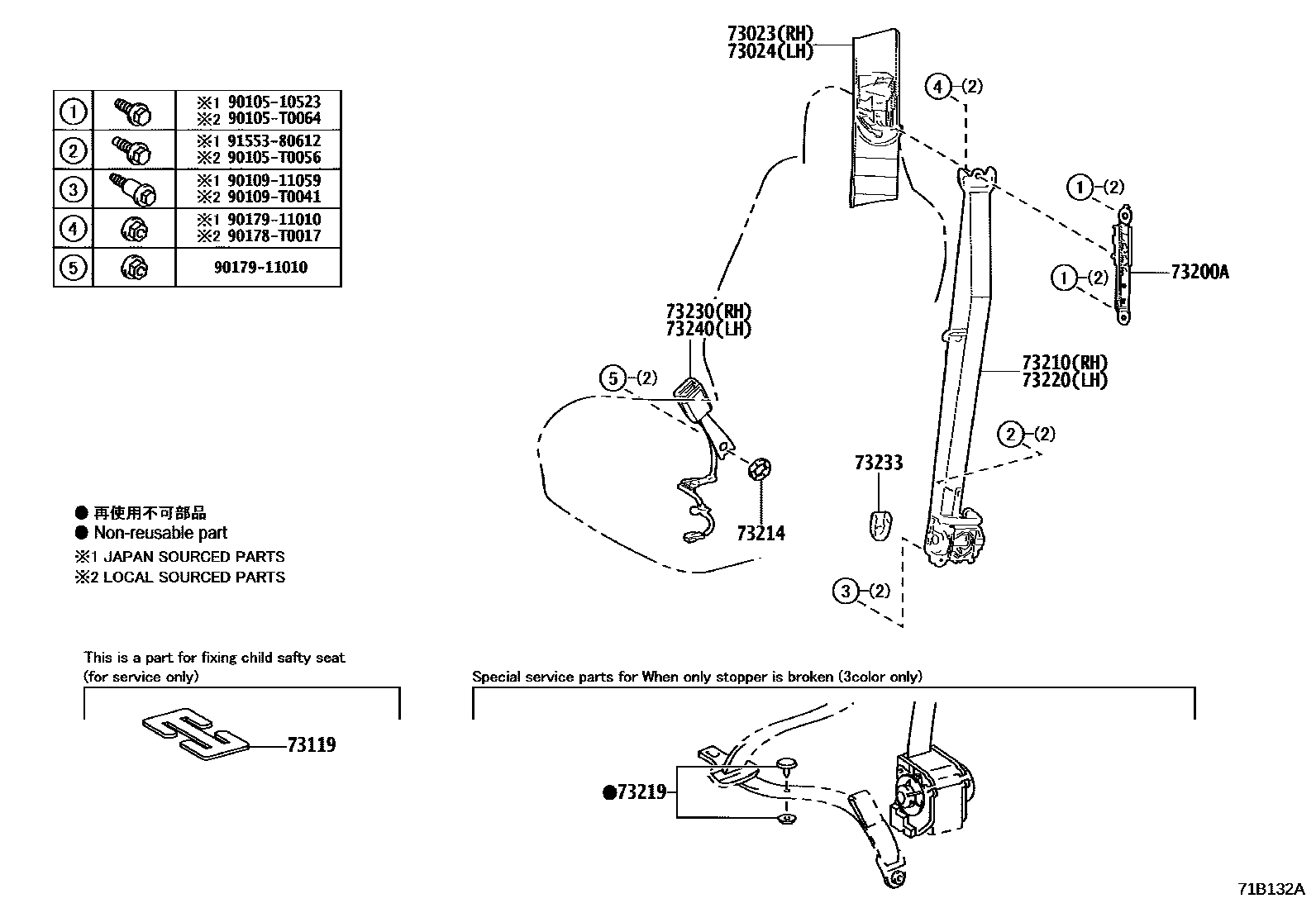

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-58010-C1iZGX11..TH201802-202105

BLACK,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-58010-C1iZGX11..TH201802-202105

BLACK,TRIM2#

sub73024-58010

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iZGX11..TH201802-202105

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02140iZGX11..TH201802-202105

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-F4090-C0iZGX11..TH201802-202105

BLACK,TRIM2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iZGX11..TH201802-202105

73219STOPPER, TONGUE PLATE

main73219-33010iZYX10201802-202105

BLACK

main73219-33020iZGX11..TH201802-202105

GRAY

main73219-33030iZGX11..TH201802-202105

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-F4080-C0iZGX11..TH201802-202105

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-F4100-C0iZGX11..TH201802-202105

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-KK010-C1iZGX11..TH201802-202105

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-F4110-C0iZGX11..TH201802-202105

BLACK,TRIM2#

9010510523

main90105-10523

90105T0056

main90105-T0056

90105T0064

main90105-T0064

9010911059

main90109-11059

90109T0041

main90109-T0041

90178T0017

main90178-T0017

9017911010

main90179-11010

9155380612

main91553-80612

19 parts on this diagram · 2 diagrams in section
